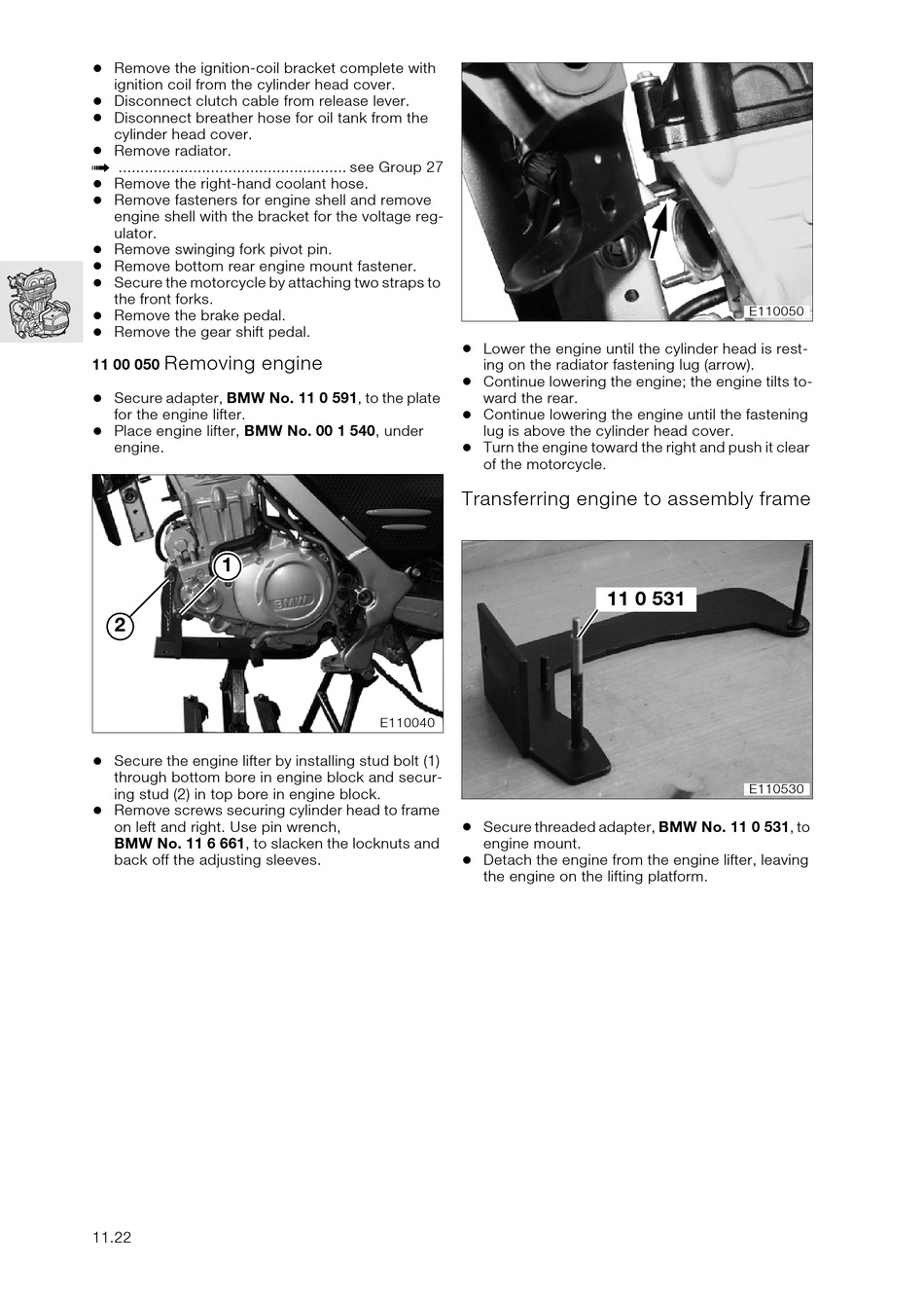

Remove the ignition-coil bracket complete with
ignition coil from the cylinder head cover.
•
Disconnect clutch cable from release lever.
•
Disconnect breather hose for oil tank from the
cylinder head cover.
•
Remove radiator.
.................................................... see Group 27
a
•
Remove the right-hand coolant hose.
•
Remove fasteners for engine shell and remove
engine shell with the bracket for the voltage reg-
ulator.
•
Remove swinging fork pivot pin.
•
Remove bottom rear engine mount fastener.
•
Secure the motorcycle by attaching two straps to
the front forks.
•
Remove the brake pedal.
•
Remove the gear shift pedal.

Removing engine

11 00 050
•
Secure adapter, BMW No. 11 0 591, to the plate
for the engine lifter.
•
Place engine lifter, BMW No. 00 1 540, under
engine.
1
2
•
Secure the engine lifter by installing stud bolt (1)
through bottom bore in engine block and secur-
ing stud (2) in top bore in engine block.
•
Remove screws securing cylinder head to frame
on left and right. Use pin wrench,
BMW No. 11 6 661, to slacken the locknuts and
back off the adjusting sleeves.
11.22
•
Lower the engine until the cylinder head is rest-
ing on the radiator fastening lug (arrow).
•
Continue lowering the engine; the engine tilts to-
ward the rear.
•
Continue lowering the engine until the fastening
lug is above the cylinder head cover.
•
Turn the engine toward the right and push it clear
of the motorcycle.

Transferring engine to assembly frame

E110040
•
Secure threaded adapter, BMW No. 11 0 531, to
engine mount.
•
Detach the engine from the engine lifter, leaving
the engine on the lifting platform.
E110050
11 0 531
E110530
