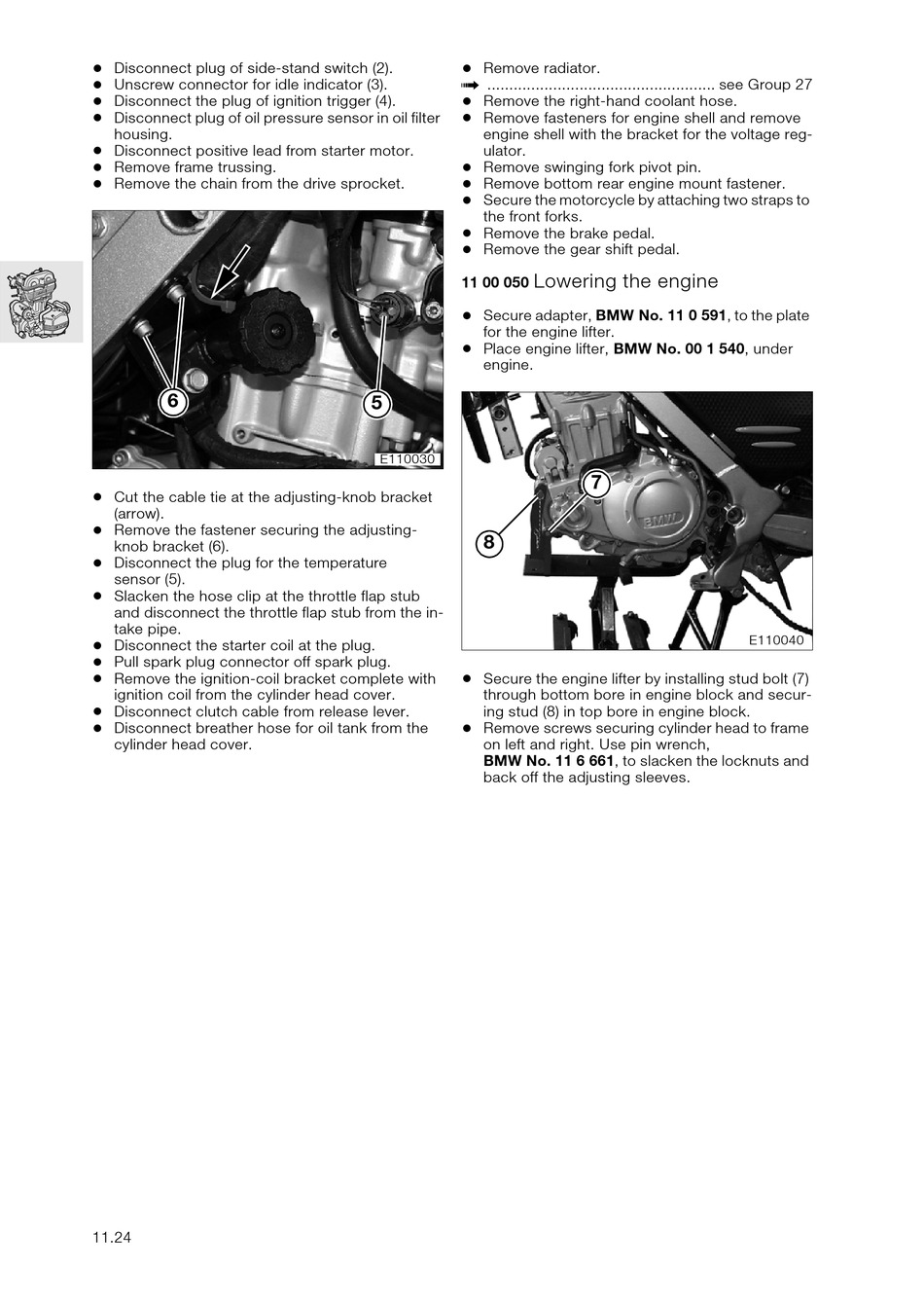

Disconnect plug of side-stand switch (2).
•
Unscrew connector for idle indicator (3).
•
Disconnect the plug of ignition trigger (4).
•
Disconnect plug of oil pressure sensor in oil filter
housing.
•
Disconnect positive lead from starter motor.
•
Remove frame trussing.
•
Remove the chain from the drive sprocket.
6
•
Cut the cable tie at the adjusting-knob bracket
(arrow).
•
Remove the fastener securing the adjusting-
knob bracket (6).
•
Disconnect the plug for the temperature
sensor (5).
•
Slacken the hose clip at the throttle flap stub
and disconnect the throttle flap stub from the in-
take pipe.
•
Disconnect the starter coil at the plug.
•
Pull spark plug connector off spark plug.
•
Remove the ignition-coil bracket complete with
ignition coil from the cylinder head cover.
•
Disconnect clutch cable from release lever.
•
Disconnect breather hose for oil tank from the
cylinder head cover.
11.24
•
Remove radiator.
.................................................... see Group 27
a
•
Remove the right-hand coolant hose.
•
Remove fasteners for engine shell and remove
engine shell with the bracket for the voltage reg-
ulator.
•
Remove swinging fork pivot pin.
•
Remove bottom rear engine mount fastener.
•
Secure the motorcycle by attaching two straps to
the front forks.
•
Remove the brake pedal.
•
Remove the gear shift pedal.

Lowering the engine

11 00 050
•
Secure adapter, BMW No. 11 0 591, to the plate
for the engine lifter.
•
Place engine lifter, BMW No. 00 1 540, under
engine.
5
E110030
8
•
Secure the engine lifter by installing stud bolt (7)
through bottom bore in engine block and secur-
ing stud (8) in top bore in engine block.
•
Remove screws securing cylinder head to frame
on left and right. Use pin wrench,
BMW No. 11 6 661, to slacken the locknuts and
back off the adjusting sleeves.
7
E110040
