Network > RADIUS

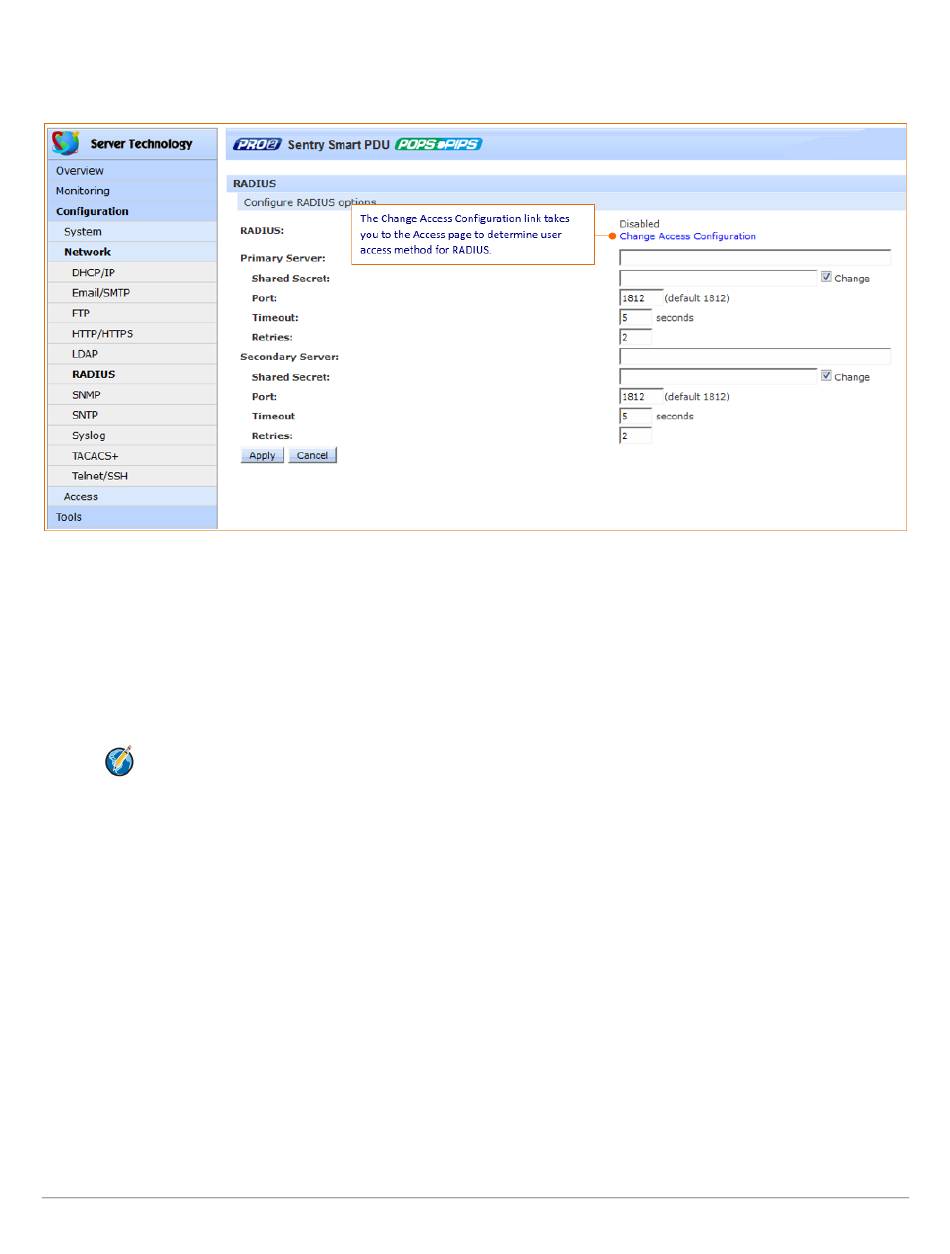

The RADIUS page provides configuration options for RADIUS server support.
To configure the RADIUS server:
1. RADIUS: Enabled or Disabled displays on the page to show current RADIUS status.
2. Sets the Primary/Secondary RADIUS server hostname/IP address used for RADIUS authentication
requests. Maximum 63 characters.
3. Shared Secret: The RADIUS authentication key used for authentication requests. Up to 48 uppercase and
lowercase alphanumeric and other typed characters (ASCII 33 to 126 decimal) are allowed; spaces are
allowed; control characters are not allowed. To change the secret, edit the Shared Secret field (characters
are not displayed) and check the Change checkbox.
Note: The secret that was set for the primary server will not be cleared when setting the secret for the
secondary server, and vice versa.
4. Port Number: Used by the RADIUS server for incoming RADIUS authentication requests. Provide a custom
port number or accept the default port numbers as displayed. Valid range is 1-65535; default as shown on
the screen is 1812.
5. Timeout: Specifies the time interval (in seconds) to wait for a reply from the RADIUS server before
resending an authentication request. Provide the custom timeout value or accept the default timeout as
displayed. Valid range is 1-30 seconds; default is 5 seconds.
6. Retries: Indicates the number of times an authentication request is sent to the RADIUS server. The PRO2
attempts authentication on the primary server until the number of retries is reached, then attempts
authentication with the secondary server. If the PRO2 does not receive a response from the retry attempts,
the authentication request will be rejected. Provide a number in the Retries field. Valid range is 0-10;
default is 2.
7. Click Apply.
