System > Cords

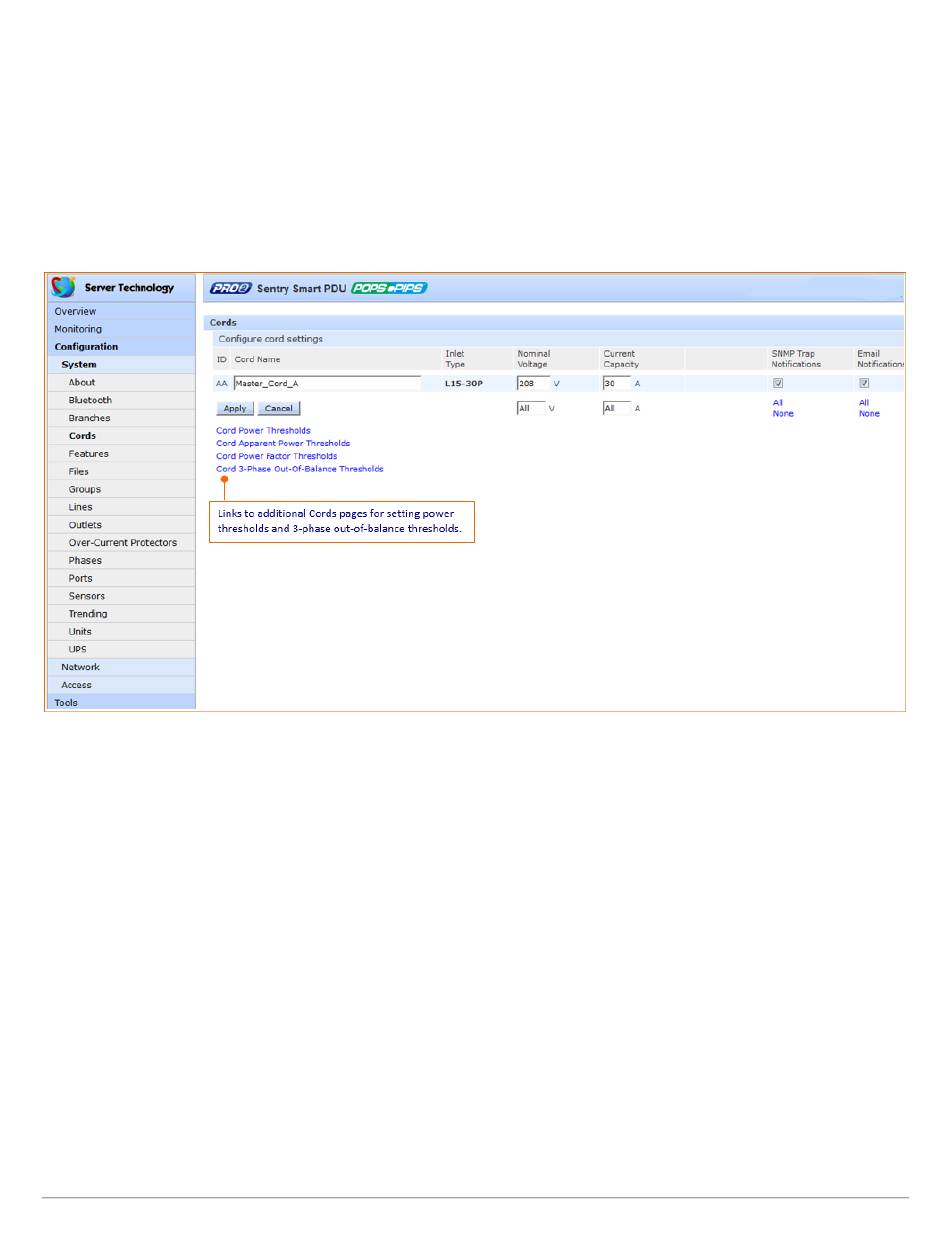

The Cords page configures the single input power cord in the PRO2 hardware architecture that reports infeed data
for the unit, allowing the setting of multiple cord threshold levels for power, apparent power, power factor, 3-phase
out-of-balance, and threshold hysteresis.
The value for nominal voltage – the point where an alert is received – is established on the Cords page.
The Cords page also sets SNMP Trap and Email notifications for cord events.
For dynamic monitoring of cord status, related power data, and out-of-balance levels, navigate to the separate
Monitoring > Cords page.
To configure cord settings:
1. In the Cord Name field, provide a descriptive text name, from 0-32 characters. The ID is a system-assigned
internal name and cannot be changed.
2. View the reported type of inlet displayed for the cord.
3. In the Nominal Voltage field, set the value (in Volts) to be the mid-point of the Monitoring graphs, so that
nominal voltage is the point where you are alerted for an alarm. Range is 0-max (max is factory nominal
voltage) in the show cords command.
4. Set the current load for the cord in the Current Capacity field. Range is 0-max (max is factory current
capacity) in the show cords command.
5. For each cord listed, check (or uncheck) SNMP Trap Notifications and/or Email Notifications to
enable/disable notifications for cord events.
6. Click Apply.
