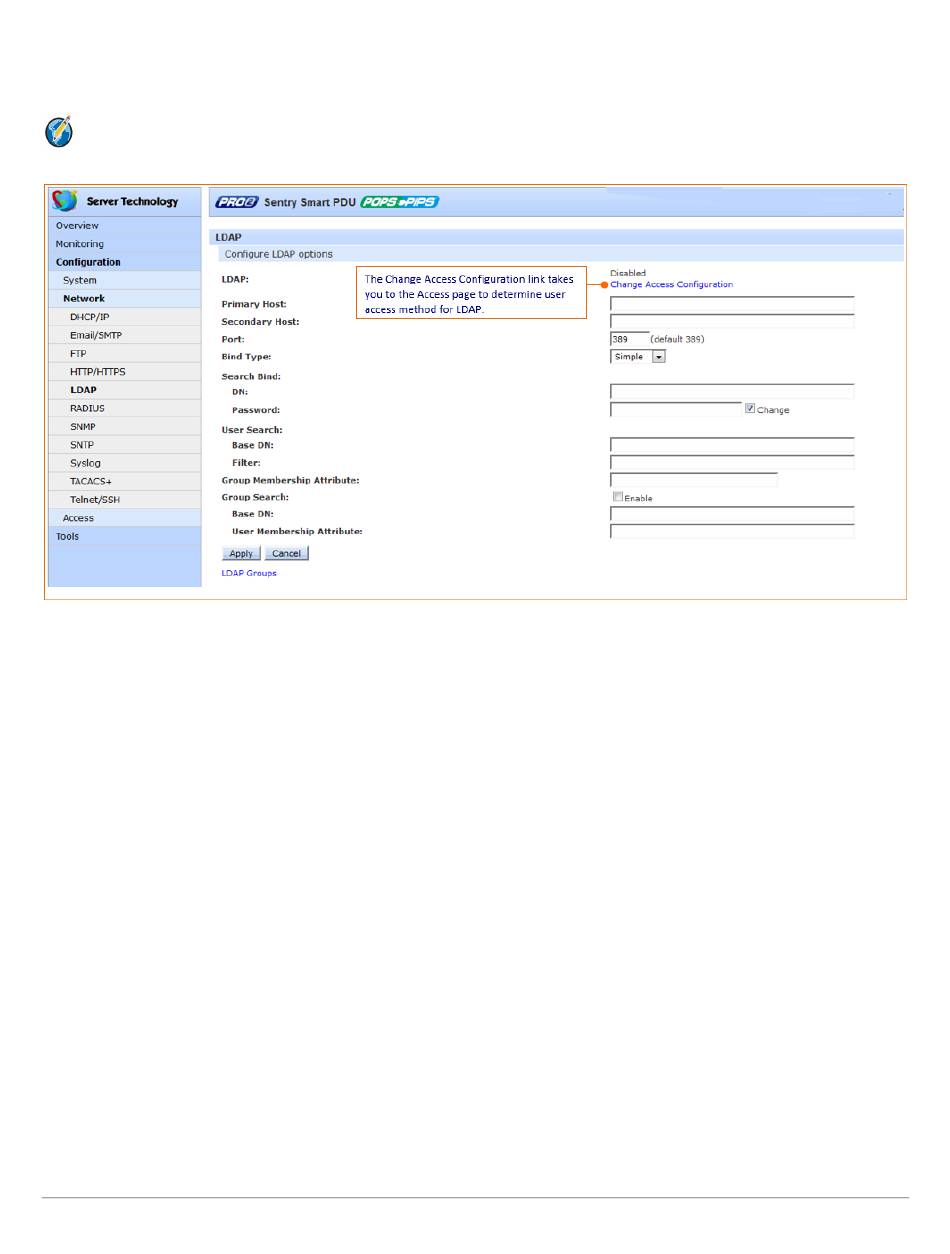

Network > LDAP
The LDAP page determines the protocol settings required to enable LDAP support.
Note: The Network > LDAP page is for LDAP network protocol management only. To manage LDAP user
groups, see the Access > LDAP Groups page.
To configure LDAP:
1. LDAP: Enabled or Disabled displays on the page to show current LDAP status.
2. Primary/Secondary Host: Provide the hostname/IP address
3. Port:
Set the port number for the LDAP server, 1-65535 (Default is 389).
4. Bind Type: Sets the bind method for the LDAP server. The PRO2 supports three standard LDAP bind
methods:
Simple: Uses unencrypted delivery of username-password over the network to the LDAP server for
authentication, showing user credentials in plain text.
TLS/SSL: (LDAP over TLS/SSL) Uses a trusted authority certificate to provide encryption of LDAP
authentication.
MD5: Provides strong protection using 1-way hash encoding that does not transmit the username-
password over the network.
5. From the Bind Type drop-down menu, select Simple, TLS/SSL, or MD5.
binding is disabled.
6. Search Bind: Provide the base distinguished name (DN) for the search bind and the Search Bind Password
for the base DN. To change the password, type the new password, and check the Change checkbox.
Using the Web Interface
of the Directory Services server.
Smart PRO2 – User Guide
If TLS/SSL is selected, MD5
95
