PROx Network Interface Card (NIC) Swap

The NIC in your PROx PDU is a hot-swappable assembly that can be removed and installed without the loss of
output voltage, as described in the following instructions:
1. Remove the Phillips-head retention screws and save for step 4.

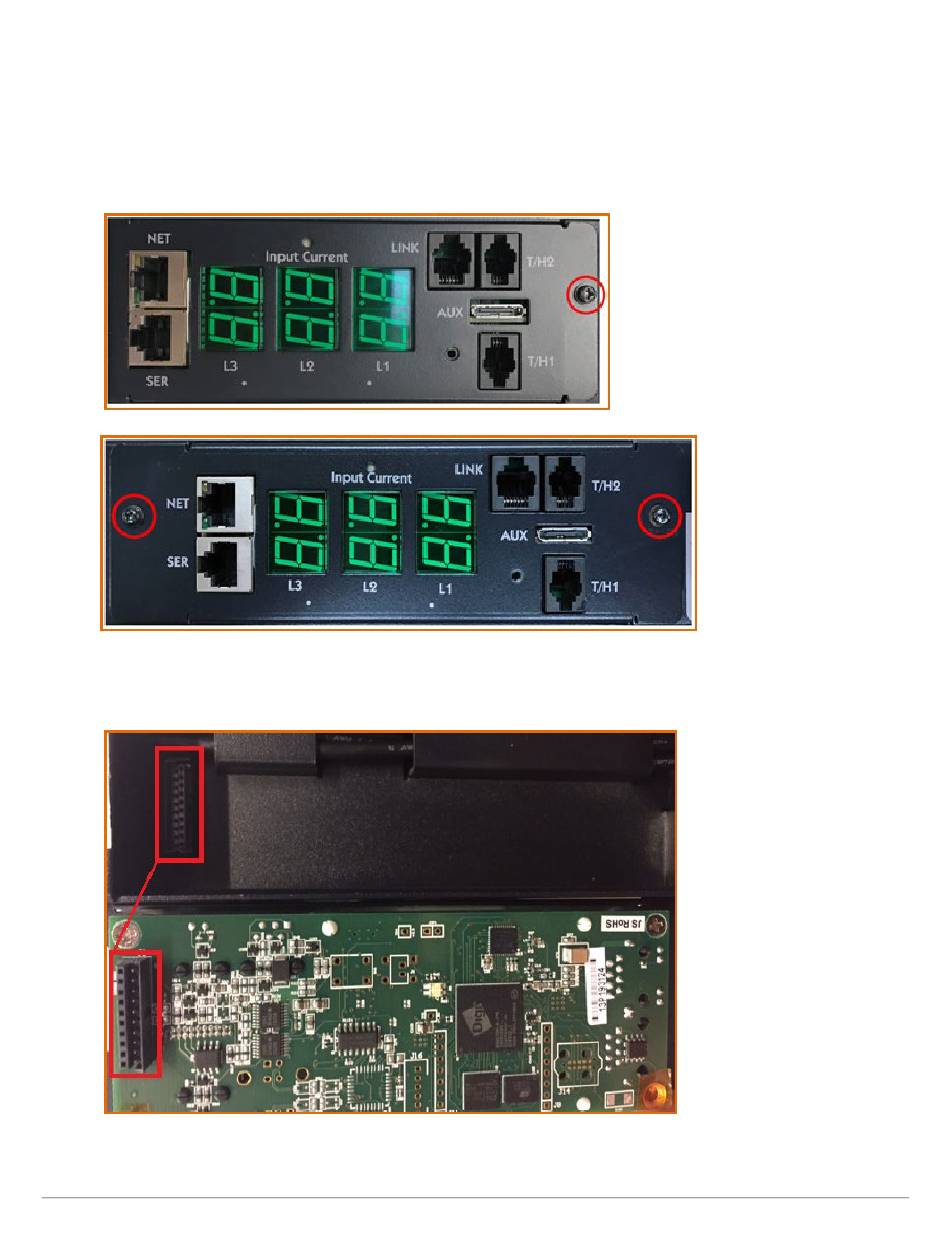

Note: Some models have either one or two screws, shown in the following two images:
2. Using equal pressure on both sides, pull the NIC out of the PDU enclosure.
3. Install the new NIC, ensuring the NIC is orientated so that it lines up with the connector inside
of the PDU enclosure, as illustrated below.
4. Install the Phillips-head retention screws.
