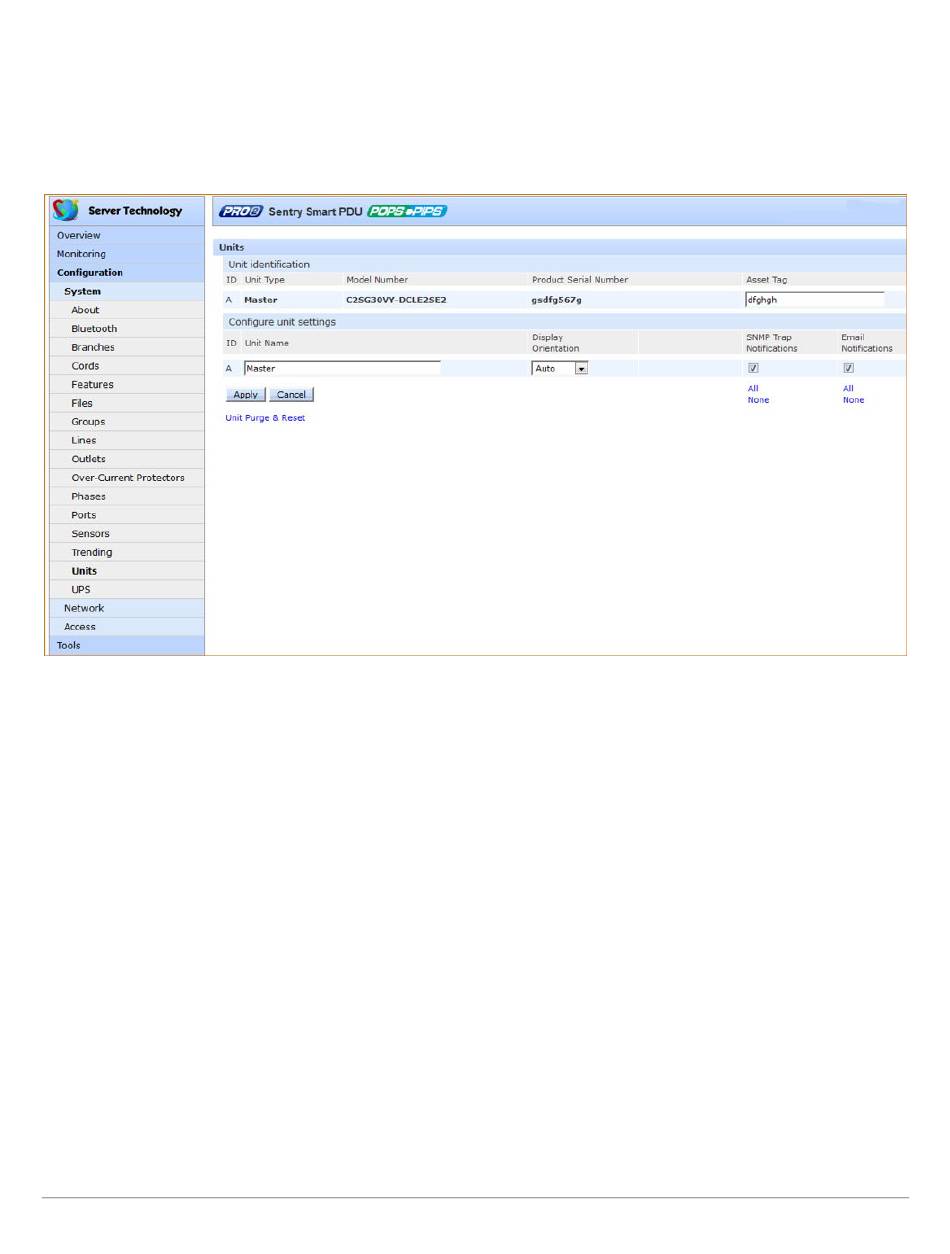

System > Units
The Units page sets a descriptive system name for each PRO2 unit, configures asset management identification
and sets the display orientation of the mounted unit. The page also sets sets SNMP Trap and Email notifications for
unit events.
The Purge and Reset link on the Units page displays another page to allow the clearing of current values in non-
volatile (NV) memory from individual units, and the resetting of those values back to factory defaults.
To configure the PRO2 unit
1.
(Optional) Provide an asset tag identification for listed master and/or link units and check the Identity
checkbox.
2.
In the Unit Name field, provide a descriptive text name for the unit, from 0-32 characters. The ID is a
system-assigned internal name and cannot be changed.
3.
From the Display Orientation drop-down menu, select an option:
Normal: Sets the LED display to be right-side up (for vertical mounting of the unit), and outlet
•
sequencing to be 1 to n.
Inverted: Sets the LED display to be upside down.
•
Auto (Default): Sets automatic LED display orientation using internal orientation sensor.
•
4.
For each unit listed on the page, check (or uncheck) the SNMP Trap Notifications and/or Email
Notifications checkboxes to enable (or disable) unit event notification for a specific unit.
Using the Web Interface
:
Smart PRO2 – User Guide
•
83
