2 About the Software
S I
HOW NSTRUMENT

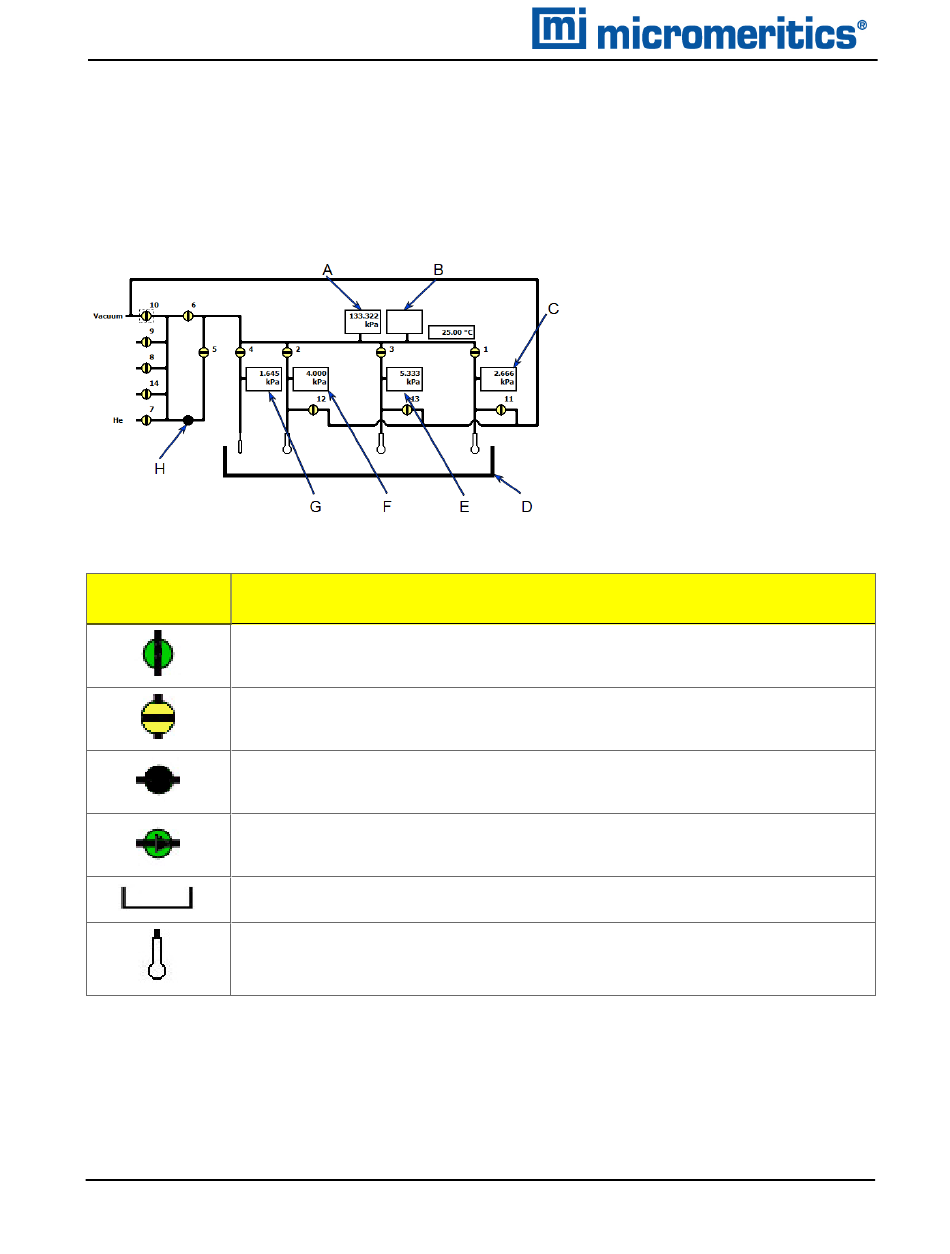

Unit [n] > Show Instrument Schematic
Use to display an analyzer schematic. To operate the valves and elevator from this window,
manual control must be enabled (Unit [n] > Enable Manual Control).
Analyzer Schematic Icons
Description
Icon or
Symbol
Open Valve. Green indicates an open valve.
Closed Valve. Yellow indicates a closed valve. When manual control is
disabled, closed valves appear white.
Servo Valve. Closed.
Servo Valve. Open.
Elevator.
Sample Tube. Cannot be manually controlled.
2 - 20
S
CHEMATIC
A. 10 Torr Transducer (displays
only for krypton units)
B. 1000 Torr Manifold Trans-
ducer
C. Port 3 Transducer
D. Elevator
E. Port 2 Transducer
F. Port 1 Transducer
G. P Transducer
0
H. Servo valve
