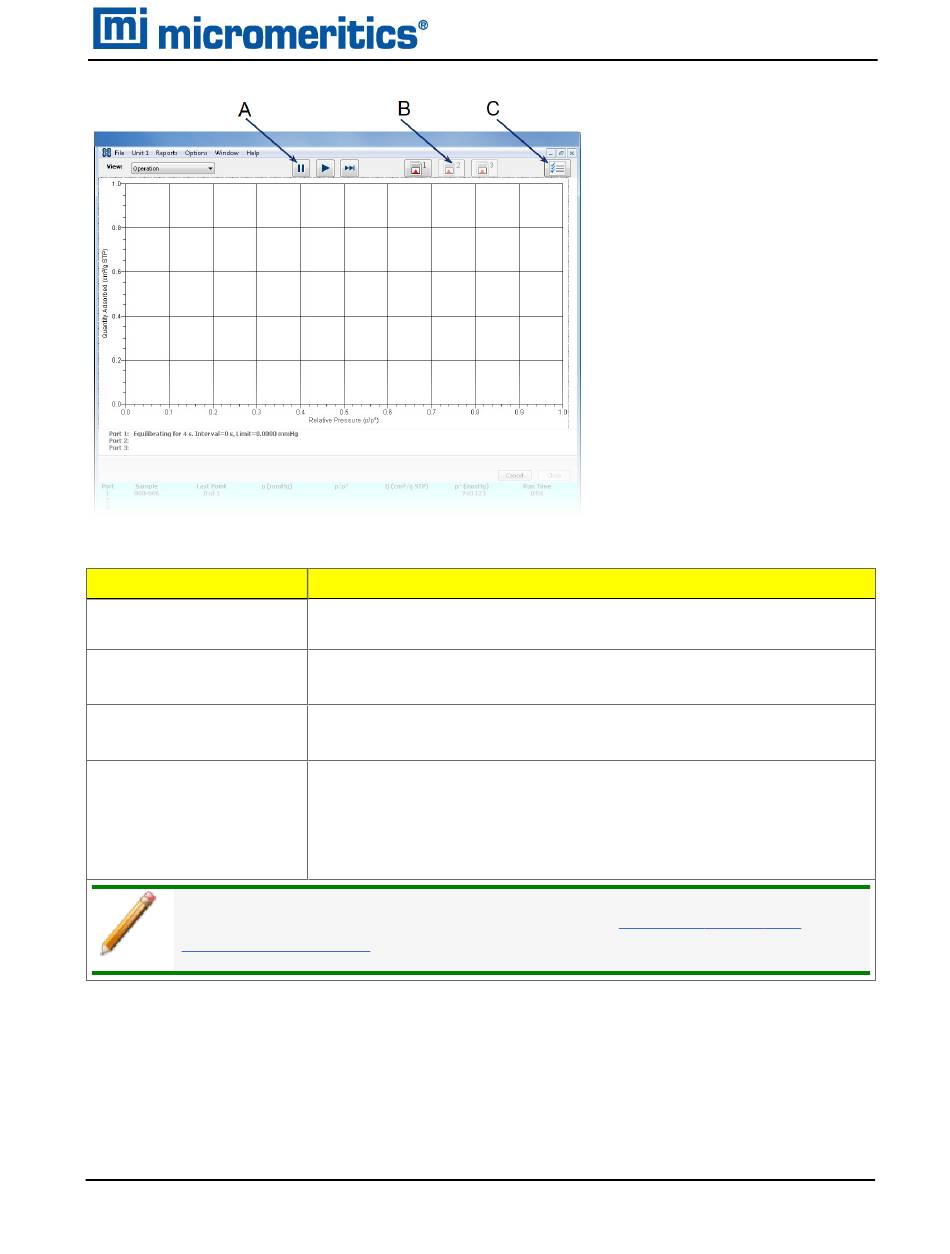

Sample Analysis Graph
Selections
Port [button]
Live Graph Settings
[button]
Report after analysis
[button]
Status window
For fields and buttons not listed in this table, see
Buttons on page 2 -
TriStar II Plus Operator Manual
303-42800-01 (Rev M ) — Sep 2023
Description
Generates a report on data being collected on the respective port.
The reports are displayed on the computer monitor only.
Select Thermal transpiration, x-axis Quantity (relative or absolute
pressure), and the x-axis Scale (linear or logarithmic).
Generates reports to the selected destination when the analysis is
complete.
Displays the last point pressure and relative pressure for each port
with varying numbers of digits after the decimal if 10 mmHg and 0.1
mmHg transducers are present on that port, as follows: P < 0.1: 6
digits, 0.1 <= P < 10: 4 digits, P >= 10: 2 digits. Relative pressure will
show 3 more digits than absolute pressure.
3.
Perform a Sample Analysis
A. Suspend/Resume/Skip
buttons
B. Port report buttons
C. Live graph settings
