User Guide | Optyma™ control AK-RC 111 single phase
4.0 Parameter
programming

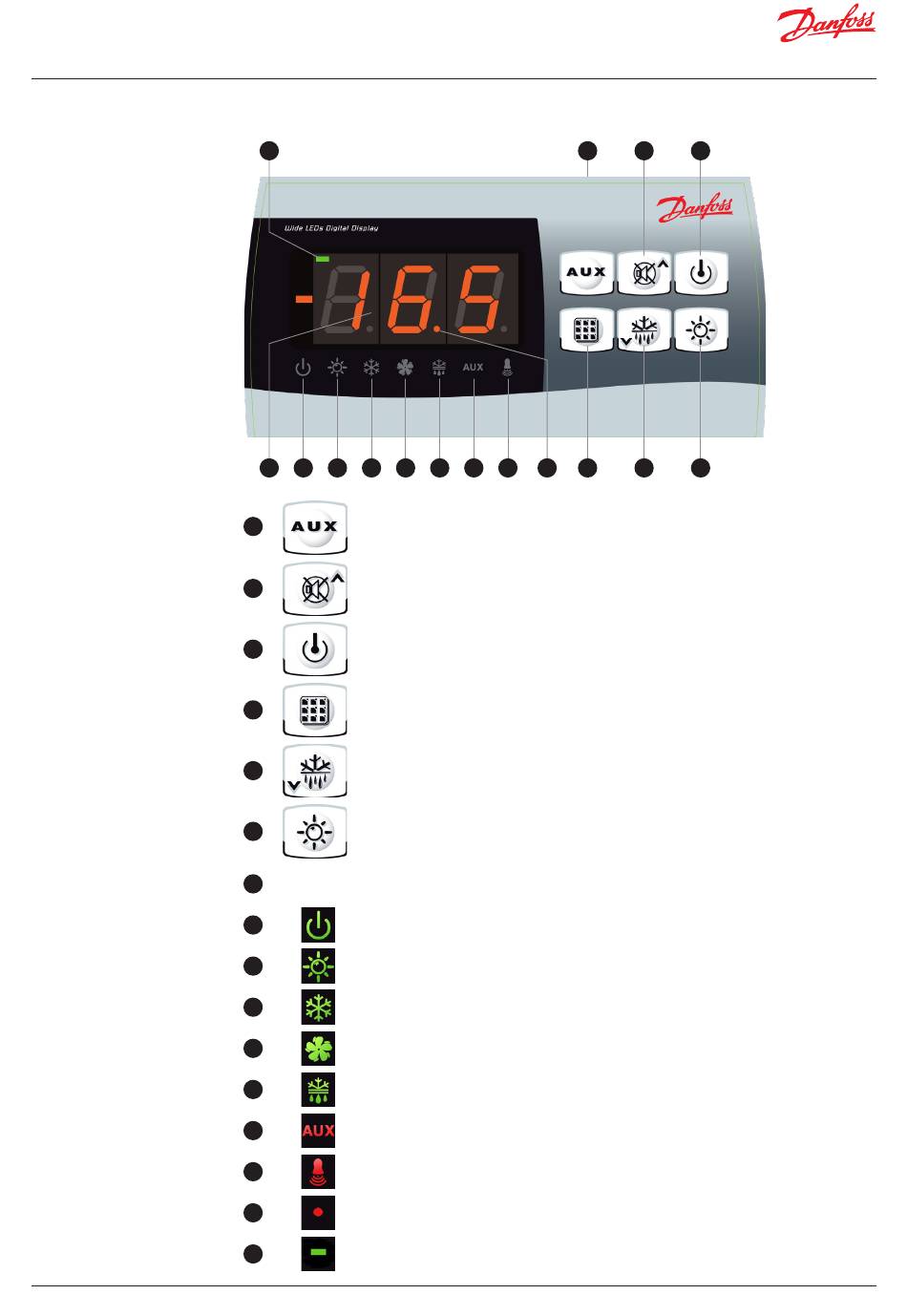

4.1 Control panel

4.2 Front keypad

4.3 LED display

© Danfoss | DCS (vt) | 2020.03
16
7 8 9 10 11
Auxiliary relay control
1
(controls the relays manual if parameter AU1/AU2 = 2/-2)
2
Up/Mute buzzer alarm
3
Stand by (if the system shuts down the LED flashes)
4
Room temperature Setting
5
Down/Manual defrost
6
Room light
7
Cold room temperature / parameters
8
Stand-by (flashes on stand-by, outputs are deactivated)
9
Room light (flashes if door switch activated)
10
Cold (indicates activation of compressor)
11
Fans
12
Defrosting
13
Auxiliary (indicates AUX relay calling if AU1/AU2=+/-2 or +/-3)
14
Alarm/warning
15
Decimal point (flashing in night mode)
16
Hot mode (resistance call signaling)
1
12 13 14 15 4
2 3
5 6
