HCOUNT Timing Control
HCOUNT_ALIGN_ADJ[4:0] , Addr 44 (CP), Address 0xBE[1:0]; Address 0xBF[7:5]
Manual adjustment for internally generated hcount offset. This register allows an adjustment of 15 pixels to the left or to the right. The
MSB sets the direction (left or right) and the 4 LSBs set the number of pixels to move. This is an unsigned control.
Function
HCOUNT_ALIGN_ADJ[4:0]
00000 (default)
750 1 2 3
FIELD 1
1125 1 2 3
START_FO[3:0]
FIELD 2
5 6 3 564 565 566
START_FE[3:0]
1125 1 2 3
Description
Default value
4 5 6 7 8...
END_VS[3:0]

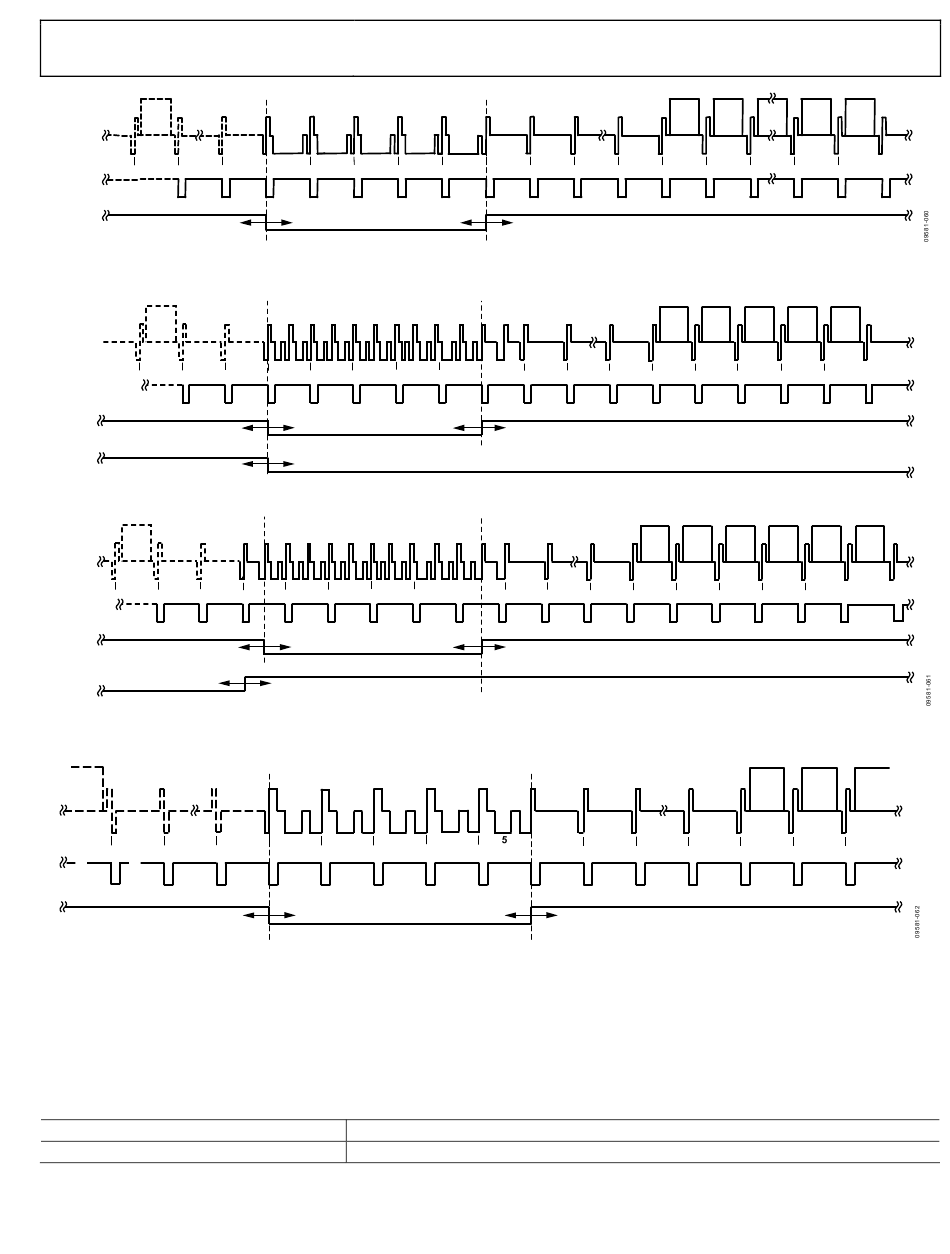

Figure 60. 720p VS Timing
4 5 6 7 8...
END_VS[3:0]
567 568 569 570...
END_VS[3:0]
Figure 61. 1080i VS Timing
1
6
END_VS[3:0]
Figure 62. 1080p VS Timing
