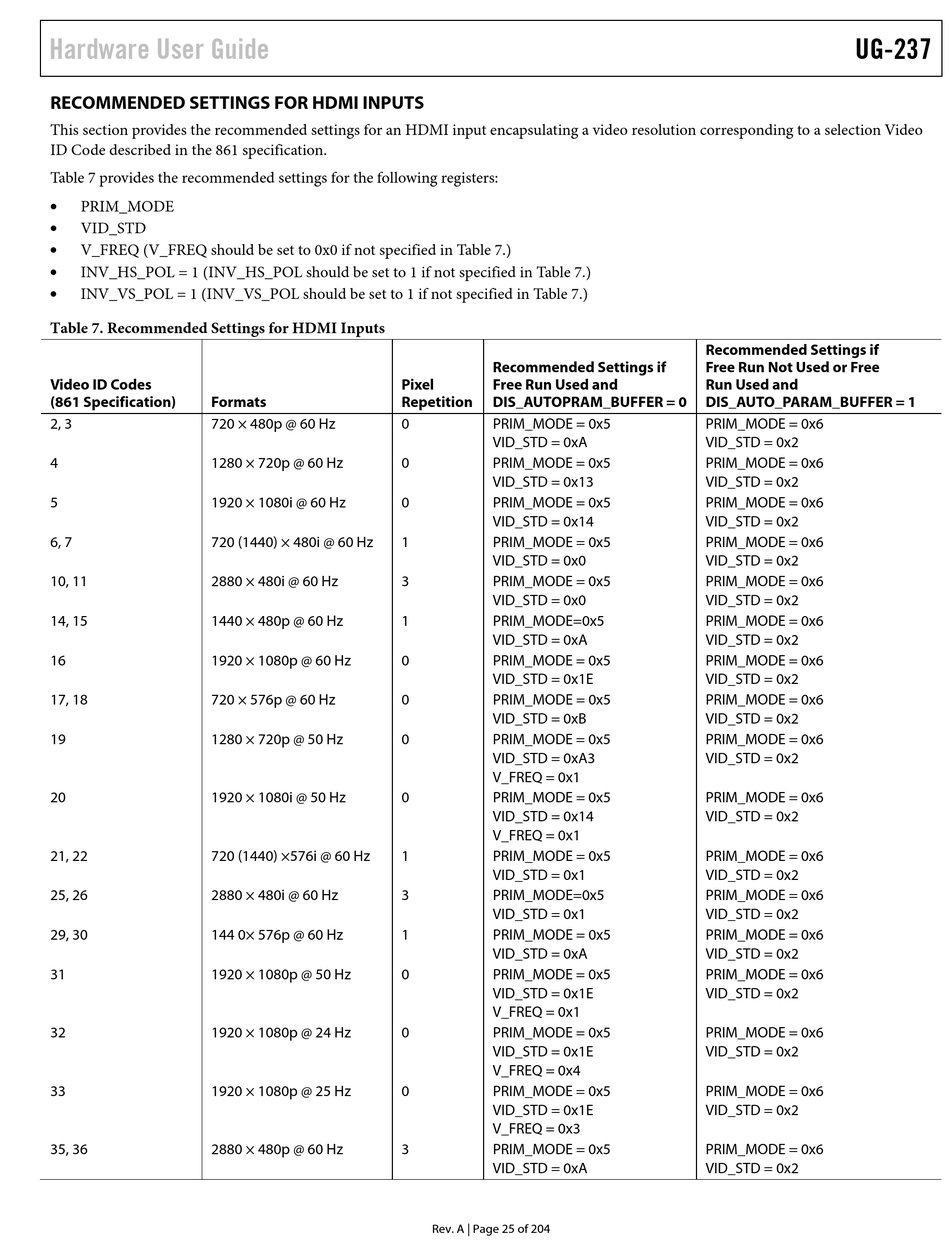

RECOMMENDED SETTINGS FOR HDMI INPUTS

This section provides the recommended settings for an HDMI input encapsulating a video resolution corresponding to a selection Video
ID Code described in the 861 specification.
Table 7 provides the recommended settings for the following registers:

PRIM_MODE

VID_STD

V_FREQ (V_FREQ should be set to 0x0 if not specified in Table 7.)

INV_HS_POL = 1 (INV_HS_POL should be set to 1 if not specified in Table 7.)

INV_VS_POL = 1 (INV_VS_POL should be set to 1 if not specified in Table 7.)
Table 7. Recommended Settings for HDMI Inputs
Video ID Codes
(861 Specification)
Formats
2, 3 720 × 480p @ 60 Hz
4 1280 × 720p @ 60 Hz
5 1920 × 1080i @ 60 Hz
6, 7 720 (1440) × 480i @ 60 Hz
10, 11 2880 × 480i @ 60 Hz
14, 15 1440 × 480p @ 60 Hz
16 1920 × 1080p @ 60 Hz
17, 18 720 × 576p @ 60 Hz
19 1280 × 720p @ 50 Hz
20 1920 × 1080i @ 50 Hz
21, 22 720 (1440) ×576i @ 60 Hz
25, 26 2880 × 480i @ 60 Hz
29, 30 144 0× 576p @ 60 Hz
31 1920 × 1080p @ 50 Hz
32 1920 × 1080p @ 24 Hz
33 1920 × 1080p @ 25 Hz
35, 36 2880 × 480p @ 60 Hz
Recommended Settings if
Pixel Free Run Used and
Repetition DIS_AUTOPRAM_BUFFER = 0
0 PRIM_MODE = 0x5
VID_STD = 0xA
0 PRIM_MODE = 0x5
VID_STD = 0x13
0 PRIM_MODE = 0x5
VID_STD = 0x14
1 PRIM_MODE = 0x5
VID_STD = 0x0
3 PRIM_MODE = 0x5
VID_STD = 0x0
1 PRIM_MODE=0x5
VID_STD = 0xA
0 PRIM_MODE = 0x5
VID_STD = 0x1E
0 PRIM_MODE = 0x5
VID_STD = 0xB
0 PRIM_MODE = 0x5
VID_STD = 0xA3
V_FREQ = 0x1
0 PRIM_MODE = 0x5
VID_STD = 0x14
V_FREQ = 0x1
1 PRIM_MODE = 0x5
VID_STD = 0x1
3 PRIM_MODE=0x5
VID_STD = 0x1
1 PRIM_MODE = 0x5
VID_STD = 0xA
0 PRIM_MODE = 0x5
VID_STD = 0x1E
V_FREQ = 0x1
0 PRIM_MODE = 0x5
VID_STD = 0x1E
V_FREQ = 0x4
0 PRIM_MODE = 0x5
VID_STD = 0x1E
V_FREQ = 0x3
3 PRIM_MODE = 0x5
VID_STD = 0xA
