7.3.2 Dual Power Supplies
7-8
Note – To identify a redundant-capable chassis:
• The power supply cover panel on this chassis is long as shown in Figure 7-7.
This panel reaches to the bottom of the frame. In contrast, the cover panel on
the non redundant-capable chassis reaches about half the way down the frame
as shown in Figure 7-2. • This chassis features the power supply adapter
board. This board, if present, can be viewed by looking through the EMI screen
on the front of the system.
Remove the power supply compartment EMI panel covering both power
supplies. See Figure 7-7.
Remove all screws securing the panel in place and set the panel aside.

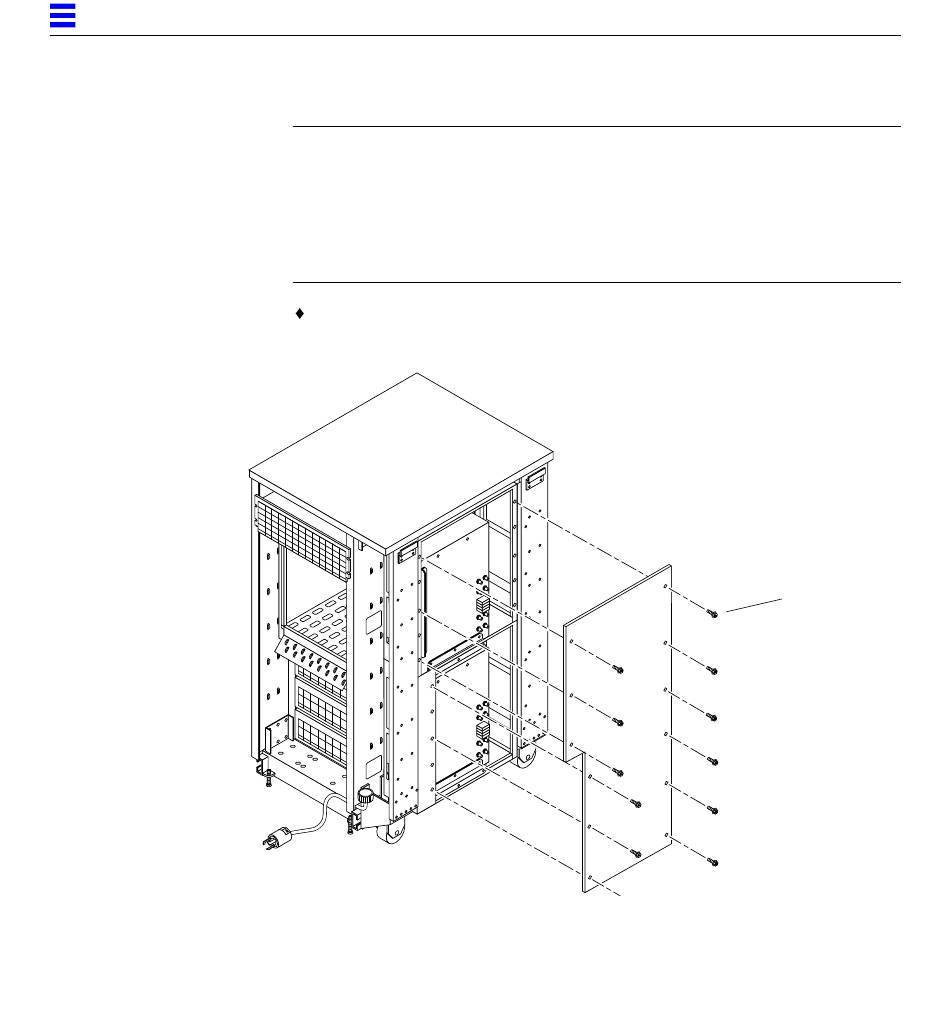

Figure 7-7 Removing the Power Supply Compartment EMI Panel
SPARCcenter 2000/2000E Service Manual—June 1996
Screws
