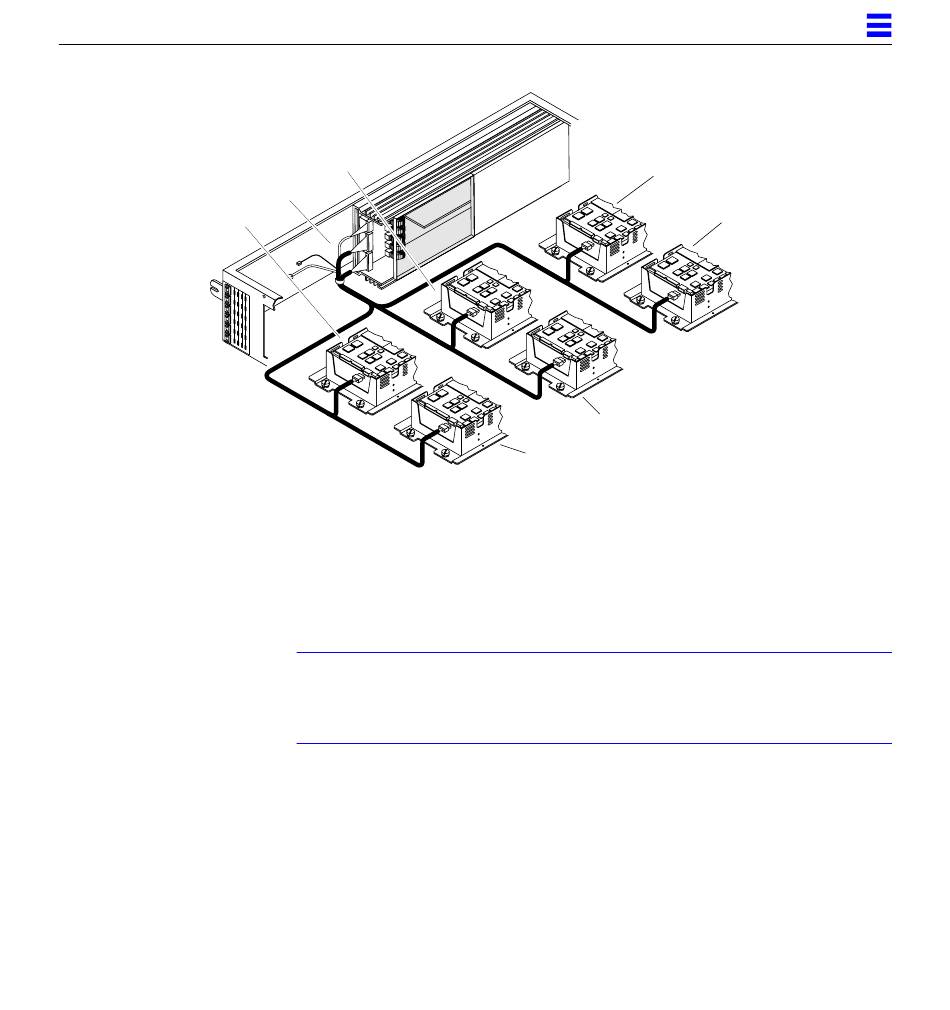

Figure 9-43 Connecting the DC Harness Cable

4. Determine what the SCSI addresses will be for the disk drives in the tray.
The SCSI addresses depend on the location of the disk drives in the tray and
on the type(s) of drives used. SCSI addresses for a Fast/Wide Differential
SCSI tray may be 0 to 15. SCSI addresses for an 8-bit (narrow) drive tray are
limited to 0 through 6.
Note – A Fast/Wide Differential SCSI drive tray can be used as the first or
second tray in a SCSI daisy-chain. An 8-bit drive tray has a more limited range
of addresses and must be used either alone or as the first tray in a two-tray
daisy-chain.
Storage Devices
Drive II
Drive III
Drive V
9
Drive I
9-35
