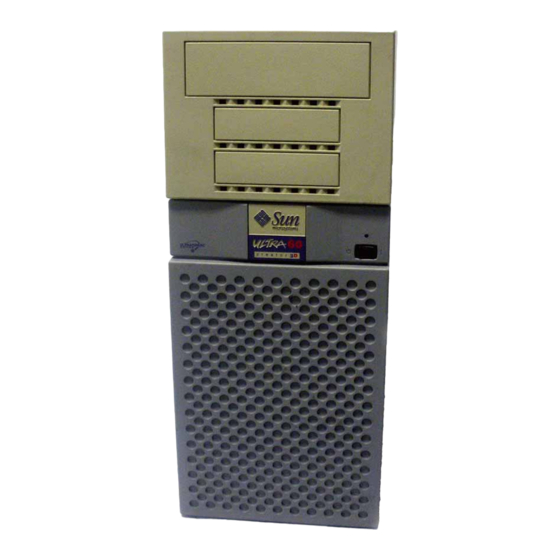

Sun
Ultra
60
™
™
Reference Manual
Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303-4900 U.S.A.
650-960-1300
Part No.: 805-1762-11
Revision A, August 2001
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Sun

Summary of Contents for Sun Microsystems Sun

  • Page 1 Ultra ™ ™ Reference Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 U.S.A. 650-960-1300 Part No.: 805-1762-11 Revision A, August 2001 Send comments about this document to: docfeedback@sun.com...
  • Page 2 être reproduite sous aucune forme, par quelque moyen que ce soit, sans l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a. Le logiciel détenu par des tiers, et qui comprend la technologie relative aux polices de caractères, est protégé...

  • Page 3: Table Of Contents

    Contents Preface xi How This Book Is Organized xi Related Documents xii Back Panel Connectors 1-1 Connector Layout 1-2 Serial Connectors 1-3 Parallel Connector 1-4 Keyboard/Mouse Connector 1-5 Media Independent Interface (MII) Connector 1-6 1.5.1 MII Cable-Type Connectivity 1-7 1.5.2 External Cable Lengths 1-7 1.5.3 External Transceivers 1-7...
  • Page 4 1.7.3 SCSI-2 (Fast/Wide SCSI) External Devices 1-15 Audio Ports 1-16 Audio Specifications 1-18 1.10 Graphics Card 13W3 Video Connector 1-19 Modem Setup Specifications 2-1 Setting Up the Modem 2-1 Serial Port Speed Change 2-2 Recommendations 2-2 2.3.1 Cable 2-2 2.3.2 Modem Switch Settings (AT Commands) 2-3 Motherboard Jumpers 3-1 Identifying Jumpers 3-3...
  • Page 5 Figures Back Panel Switches and Connectors 1-2 FIGURE 1-1 DB-25 Serial Connectors 1-3 FIGURE 1-2 DB-25 Parallel Connector 1-4 FIGURE 1-3 DIN-8 Keyboard/Mouse Connector 1-5 FIGURE 1-4 40-Pin Miniature-D MII Connector 1-6 FIGURE 1-5 RJ-45 TPE Connector 1-8 FIGURE 1-6 68-Pin SCSI Connector 1-9 FIGURE 1-7 Configuration for the SCSI Bus 1-11...
  • Page 6 Sun Ultra 60 Reference Manual • August 2001...
  • Page 7 Tables RS-423/RS-232 Serial Connector Pinouts 1-3 TABLE 1-1 Parallel Connector Pinouts 1-4 TABLE 1-2 Keyboard/Mouse Connector Pinouts 1-5 TABLE 1-3 MII Connector Pinouts 1-6 TABLE 1-4 MII External Cable Lengths 1-7 TABLE 1-5 MII Connectivity: Supported Transceivers 1-7 TABLE 1-6 TPE Connector Pinouts 1-8 TABLE 1-7 TPE UTP-5 Cable Lengths 1-9...
  • Page 8 Power Supply Outputs 4-1 TABLE 4-2 Environmental Specifications: Operating 4-2 TABLE 4-3 Environmental Specifications: Nonoperating 4-2 TABLE 4-4 Dimensions and Weight 4-3 TABLE 4-5 DIMM Banks and Slots 4-4 TABLE 4-6 PCI Card Slot Operating Frequencies 4-8 TABLE 4-7 Tables...

  • Page 9: Preface

    60 system. It also includes information about configuring system communitations settings. The revision of the Sun Ultra 60 Reference Manual provided here is the latest version of the document, and includes information that may be different from that contained in the reference documentation originally shipped with the Sun Ultra 60 system.

  • Page 10: Related Documents

    Ordering Sun Documentation Fatbrain.com, an Internet professional bookstore, stocks select product documentation from Sun Microsystems, Inc. For a list of documents and how to order them, visit the Sun Documentation Center on Fatbrain.com at: http://www.fatbrain.com/documentation/sun xii Sun Ultra 60 Reference Manual • August 2001...

  • Page 11: Sun Welcomes Your Comments

    Sun Welcomes Your Comments Sun is interested in improving its documentation and welcomes your comments and suggestions. You can email your comments to Sun at: docfeedback@sun.com Please include the part number (805-1762-11) of your document in the subject line of your email.
  • Page 12 Sun Ultra 60 Reference Manual • August 2001...

  • Page 13: Back Panel Connectors

    C H A P T E R Back Panel Connectors This chapter contains specifications for the back panel connectors on the Ultra 60 system.

  • Page 14: Connector Layout

    — UPA slot PCI66 slot 1 PCI slot 2 PCI slot 3 PCI slot 4 Audio module connector icons: Microphone Line Out Line In Headphones Back Panel Switches and Connectors FIGURE 1-1 Sun Ultra 60 Reference Manual • August 2001...

  • Page 15: Serial Connectors

    Serial Connectors DB-25 Serial Connectors FIGURE 1-2 RS-423/RS-232 Serial Connector Pinouts TABLE 1-1 Function Signal Description none none Not connected Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Signal Ground Data Carrier Detect 9–14 none none Not connected TRxC...

  • Page 16: Parallel Connector

    Parallel Connector Pinouts TABLE 1-2 Description Description Data_Strobe_L AFXN_L Data0 ERROR_L Data1 RESET_L Data2 IN_L Data3 Ground Data4 Ground Data5 Ground Data6 Ground Data7 Ground ACK_L Ground BUSY Ground PERROR Ground SELECT_L Sun Ultra 60 Reference Manual • August 2001...

  • Page 17: Keyboard/Mouse Connector

    Keyboard/Mouse Connector DIN-8 Keyboard/Mouse Connector FIGURE 1-4 Keyboard/Mouse Connector Pinouts TABLE 1-3 Description Description Ground Keyboard_Data_ Out_L Ground Keyboard_Data_ In_L Power Poweron_L Mouse_Data_In_L Power Note – All signals are standard TTL levels. The +5V supply is fuse-protected. Chapter 1 Back Panel Connectors...

  • Page 18: Media Independent Interface (Mii) Connector

    Signal Ground RX_ER Signal Ground TX_ER Signal Ground TX_CLK Signal Ground TX_EN Signal Ground TXD<0> Signal Ground TXD<1> Signal Ground TXD<2> Signal Ground TXD<3> Signal Ground Ground Signal Ground Ground Signal Ground Ground Sun Ultra 60 Reference Manual • August 2001...

  • Page 19: Mii Cable-Type Connectivity

    External Transceivers MII Connectivity: Supported Transceivers TABLE 1-6 Cable Type Transceiver Model and Application Transceiver Manufacturer Thick coaxial-cable XF467A, MII to AUI, 10BASE-5 Sun MII-to-AUI Ethernet UTP-3, “voice grade” CT4-1030, 100BASE-T4 Canary Communications Fiber 6211 Micro, Fast Ethernet, 100BASE-FX Transcast Corporation...

  • Page 20: Twisted-Pair Ethernet (Tpe) Connector

    The following types of twisted-pair Ethernet cables can be connected to the 8-pin TPE connector: For 10BASE-T applications, UTP cable: Category 3 (UTP-3, “voice grade”) Category 4 (UTP-4) Category 5 (UTP-5, “data grade”) For 100BASE-T applications, UTP-5, “data grade” cable Sun Ultra 60 Reference Manual • August 2001...

  • Page 21: External Utp-5 Cable Lengths

    1.6.2 External UTP-5 Cable Lengths TPE UTP-5 Cable Lengths TABLE 1-8 Maximum Maximum Cable Type Application(s) Length (Metric) Length (English) UTP-5, “data grade” 10BASE-T 100 meters* 109 yards* UTP-5, “data grade” 100BASE-T 100 meters* 109 yards* * IEEE 802.3 SCSI Connector 68-Pin SCSI Connector FIGURE 1-7 68-Pin SCSI Connector Pinouts...

  • Page 22: Scsi Implementation

    TABLE 1-9 1.7.1 SCSI Implementation The Ultra 60 implements a small computer system interface (SCSI) Fast-20 (UltraSCSI) parallel interface bus. The UltraSCSI provides the following: Efficient peer-to-peer I/O bus devices 1-10 Sun Ultra 60 Reference Manual • August 2001...
  • Page 23 Mechanical, electrical, and timing specification definition that support transfer rates of 20 or 40 Mbytes per second (corresponding to the data path width of an 8-bit, or 16-bit bus, respectively). Peak bandwidth of 40 Mbytes per second (with implemented 16-bit bus width). The internal SCSI bus is terminated at each end.

  • Page 24: Table 1-10 Scsi Target Devices

    UltraSCSI interface. Sun’s implimentation of UltraSCSI requires that the total SCSI bus length be limited to no more than approximately 20 feet (6 meters) with up to 12 Sun compensated devices. Due to the considerably short bus length, an approximale 32-inch (0.8-meter) UltraSCSI-compliant external cable is supported (part number 530-2883) in addition to an approximale 6.5-foot (2-meter)
  • Page 25 1.7.1.4 Internal SCSI Subassembly The internal SCSI subassembly consists of two cable assemblies and two SCSI cards. The SCSI subassembly is attached to the motherboard using an insulation displacement connector (IDC) receptacle attached to a 80-conductor cable. In addition to the SCSI signals, the 80-conductor cable carries diskette drive and system LED signals to the SCSI backplane card.

  • Page 26: Scsi Cabling Procedure

    An Ultra 60 system enables the use of a single 0.8 meter (32 inch) Fast-20 SCSI cable to a single external SCSI-3 parallel interface, Fast-20 Wide (UltraSCSI, WideUltra) device or device cluster. 1-14 Sun Ultra 60 Reference Manual • August 2001...

  • Page 27: Scsi-2 (Fast/Wide Scsi) External Devices

    Sun devices use autotermination. If external mass storage devices consist of 68-pin Sun devices and 50-pin devices, connect the Sun 68-pin devices to the Ultra 60 system first and terminate the daisy chain with the 50-pin device and its terminator.

  • Page 28: Audio Ports

    TABLE 1-12 Plug Headphones Line Out Line In Microphone Left Channel Left Channel Left Channel Left Channel Ring (Center) Right Channel Right Channel Right Channel Right Channel Shield Ground Ground Ground Ground 1-16 Sun Ultra 60 Reference Manual • August 2001...
  • Page 29 ) to the system 1. The Ultra 60 system microphone port accepts stereophonic input; however, the Sun Microphone II is a mono- phonic device. Note also that the older SunMicrophone is not compatible with the Ultra 60 system. Chapter 1 Back Panel Connectors...

  • Page 30: Audio Specifications

    Internal Monaural Speaker Specifications TABLE 1-15 Speaker Specifications Power Output 1W average, 2W peak Distortion 0.02%, typical at 1 kHz Impedance 16Ω +/- 15% Frequency Response 170 Hz–20 kHz +/- 6 dB 1-18 Sun Ultra 60 Reference Manual • August 2001...

  • Page 31: Graphics Card 13W3 Video Connector

    1.10 Graphics Card 13W3 Video Connector 13W3 Video Connector FIGURE 1-12 The graphics card for your system provides the 13W3 video connector for transmitting video output signals from the system unit to the monitor. 13W3 Video Connector Pinouts TABLE 1-16 Function Level Analog...
  • Page 32 1-20 Sun Ultra 60 Reference Manual • August 2001...

  • Page 33: Modem Setup Specifications

    C H A P T E R Modem Setup Specifications Setting Up the Modem Any modem compatible with CCITT V.24 can be connected to the Ultra 60 serial ports. Modems can be set up to function in one of three ways: Dial out only Dial in only Bidirectional calls...

  • Page 34: Serial Port Speed Change

    4. Press Esc and type :wq to save your file change(s) and to exit from the vi text editor. Recommendations 2.3.1 Cable For a modem-to-host (system) connection, use an RS-423/RS-232 straight-through cable with DB-25 male connectors at both ends. Sun Ultra 60 Reference Manual • August 2001...

  • Page 35: Modem Switch Settings (At Commands)

    2.3.2 Modem Switch Settings (AT Commands) These settings are guidelines to help you get started quickly. They may change depending on your site requirements and the modem you are using. Enable transmit flow control (AT&H1) [suggested setting] (Required for sending binary/8-bit data.) Set link rate to fixed (Will not track modem data rate, AT&Bn;...
  • Page 36 Sun Ultra 60 Reference Manual • August 2001...

  • Page 37: Motherboard Jumpers

    C H A P T E R Motherboard Jumpers The jumper settings in this chapter refer to the etchings on the motherboard. The jumpers are labeled with the letter “J” followed by a four-digit number (for example, J2702).

  • Page 38: Figure 3-1 Jumper Locations On The Motherboard

    Front U0701 CPU Slot 1 (J0201) CPU Slot 0 (J0101) PCI 66 1 J1301 PCI 2 J1401 J1801 PCI 3 J1501 PCI 4 J1601 Bottom Jumper Locations on the Motherboard FIGURE 3-1 Sun Ultra 60 Reference Manual • August 2001...

  • Page 39: Identifying Jumpers

    Identifying Jumpers Jumpers are marked on the motherboard with part numbers. For example, the serial port jumpers are marked J2604 and J2605. Jumper pins are located immediately adjacent to the part number. Pin 1 is marked with an asterisk in the position shown FIGURE 3-2 J X X X X Part number...

  • Page 40: Flash Prom Jumpers

    Pins 1 + 2 Select Pins 2 + 3 Select on Pins Name J2703 Write protect Write enable 1 + 2 Write protect/ write enable J2804 High half booting Normal booting 2 + 3 Boot control Sun Ultra 60 Reference Manual • August 2001...

  • Page 41: Serial Port Jumpers

    Serial Port Jumpers The serial port jumpers on the motherboard enable you to configure the two DB-25 serial ports on the system unit back panel for either RS-423 or RS-232 signal levels. RS-423 levels are the default standard for North American users. RS-232 levels are required for telecommunication in nations of the European Community.
  • Page 42 Sun Ultra 60 Reference Manual • August 2001...

  • Page 43: System Specifications

    C H A P T E R System Specifications Power Specifications Power Specifications TABLE 4-1 Input/Output Specifications AC power input 100–240 volts AC nominal, 47–63 Hz DC power output 350 watts maximum Power Supply Outputs TABLE 4-2 Maximum Current Voltage Regulation Output DC Voltage (Volts) (Amperes)

  • Page 44: Environmental Specifications

    30G peak, 11 milliseconds, half sine pulse IEC 68-2-27 Vibration 1.0G, 5 to 500 to 5 Hz, IEC 68-2-06 5 sweeps in 3 mutually perpendicular axes Temperature -20°C to 60°C (-4°F to 140°F) IEC 68-2-01, 68-2-02 Sun Ultra 60 Reference Manual • August 2001...

  • Page 45: Physical Specifications

    Physical Specifications Top of system microsystems Removable side panel Bottom of system 190 mm / 7.5 in. 498 mm / 19.6 in. Front panel Ultra 60 System Enclosure Physical Dimensions FIGURE 4-1 Dimensions and Weight TABLE 4-5 Height Width Depth Weight 450 mm (17.7 in.) 190 mm (7.5 in.)

  • Page 46: Memory Mapping

    Bank 3 (the bank closest to the top of the system) is the default location for the four factory-installed DIMMs. DIMM Banks and Slots TABLE 4-6 Bank Slots U1001, U1002, U1003, U1004 U0901, U0902, U0903, U0904 U0801, U0802, U0803, U0804 U0701, U0702, U0703, U0704 Sun Ultra 60 Reference Manual • August 2001...

  • Page 47: Figure 4-2 Map Of Dimm Banks And Slots On Motherboard

    J2802 J2903 NVRAM/ J2902 U1004 DIMM U1003 bank 3 U1002 U1001 U0904 DIMM U0903 bank 2 DIMM U0902 banks U0901 U0804 DIMM U0803 bank 1 U0802 Back U0801 panel U0704 U0703 DIMM bank 0 U0702 Front U0701 CPU Slot 1 (J0201) CPU Slot 0 (J0101) PCI 66 1 J1301 PCI 2 J1401...

  • Page 48: Pci Card Slot Specifications

    4.5.1 Locating the PCI Card Slots PCI66 slot 1 PCI slot 2 PCI slot 3 PCI slot 4 PCI Card Slot Locations on the System Unit Back Panel FIGURE 4-3 Sun Ultra 60 Reference Manual • August 2001...
  • Page 49 J2802 J2903 NVRAM/ J2902 U1004 DIMM U1003 bank 3 U1002 U1001 U0904 DIMM U0903 bank 2 U0902 U0901 Back U0804 panel DIMM U0803 bank 1 U0802 U0801 U0704 U0703 DIMM bank 0 U0702 Front U0701 CPU Slot 1 (J0201) CPU Slot 0 (J0101) PCI 66 1 J1301 PCI 2 J1401 slots...

  • Page 50: Pci Card Slot Operating Frequencies

    Note – If you install a 33 MHz PCI card in PCI66 slot 1, refer to the card manufacturer’s documentation and verify that the card will operate with an I/O signaling level of 3.3 volts. Sun Ultra 60 Reference Manual • August 2001...
