1
Chassis
Mounting
Hardware
Equipment Rack
Installation Hardware
Version 1.0
The Acme Packet 4500 is contained in a 1U rack-mounted chassis. It can be front- or
center mounted in standard 19" wide racks (up to 28" deep), with options for 23"
wide racks.

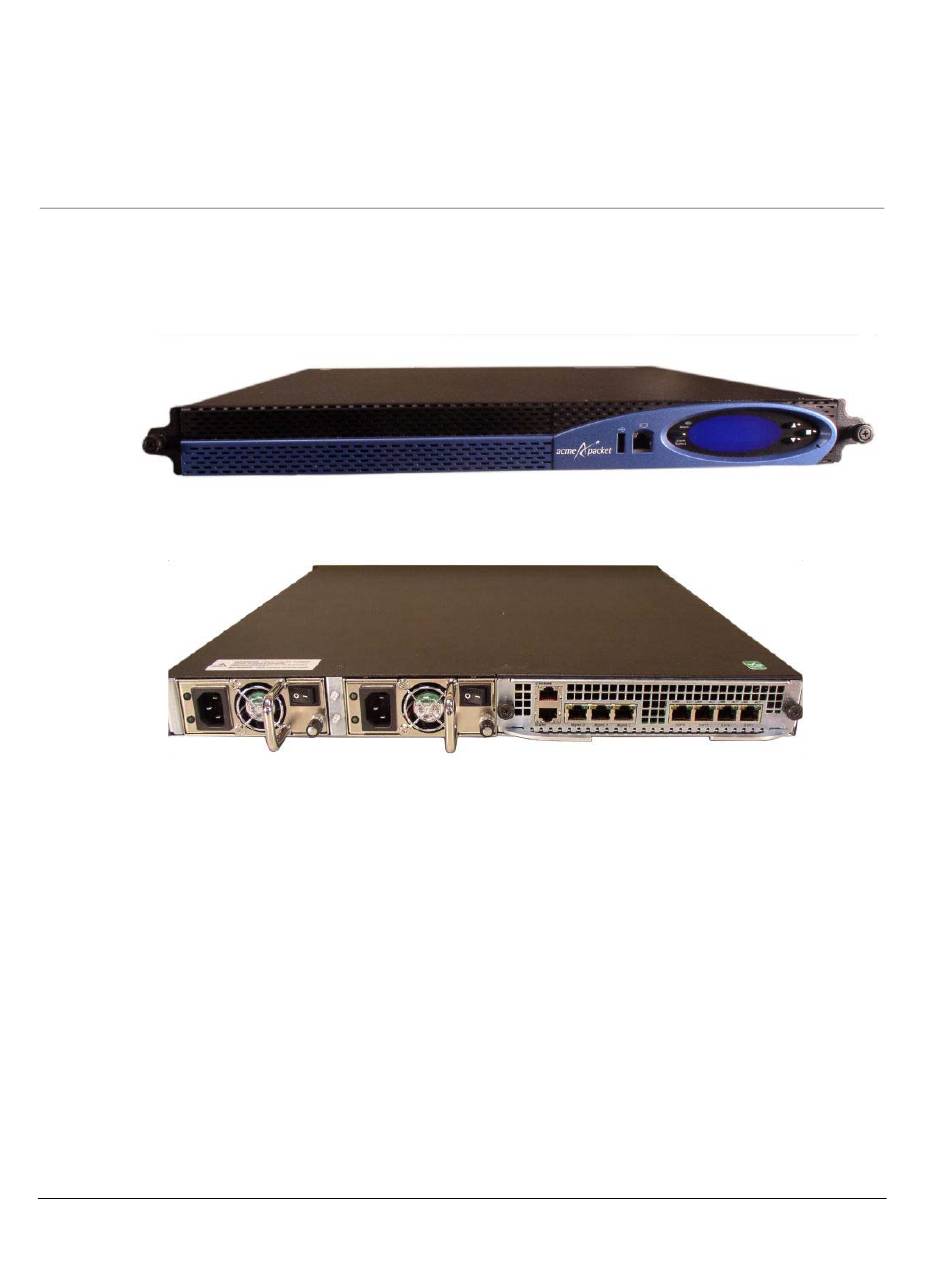

The front view of the Acme Packet 4500 chassis looks like this:
The rear view of the Acme Packet 4500 chassis looks like this:
The Acme Packet 4500 is supported by a pair of cabinet slides that are affixed to an
equipment rack by front and rear mounting flanges. The cabinet slides are adjustable
for equipment racks of various depths. Slide extenders are also included with the
Acme Packet 4500 for installations requiring up to an extra 4" (10.16 cm) of depth.
For equipment rack installations, the system chassis is outfitted with left and right
chassis-mounted slides that fit into stationary slides. The stationary slides are
secured to the equipment rack. This two-piece mounting system simplifies chassis
installation and removal. Once inserted into the equipment rack, the Acme Packet
4500 is secured in place with two quick disconnect thumb screws.
Component Overview
Acme Packet 4500 Hardware Installation Guide 11
