Chassis Removal

Caution
Removing the
Acme Packet 4500
from an Equipment
Rack
Caution
Version 1.0
This section explains how to remove the Acme Packet 4500 from an equipment rack.
To prevent injury, we recommend that any time a Acme Packet 4500 is installed or
removed from an equipment rack, two people complete the procedure.
Always disconnect the Acme Packet 4500's power supplies
from the power source when removing a chassis from an
equipment rack.
Review the precautions detailed in this guide's
To remove the Acme Packet 4500 from an equipment rack:
1. Turn the power supply switches to the OFF position.
2. Remove all power cables from the Acme Packet 4500.
3. Remove and label all attached network cables, alarm cable, and console cables
from their respective ports on the chassis.

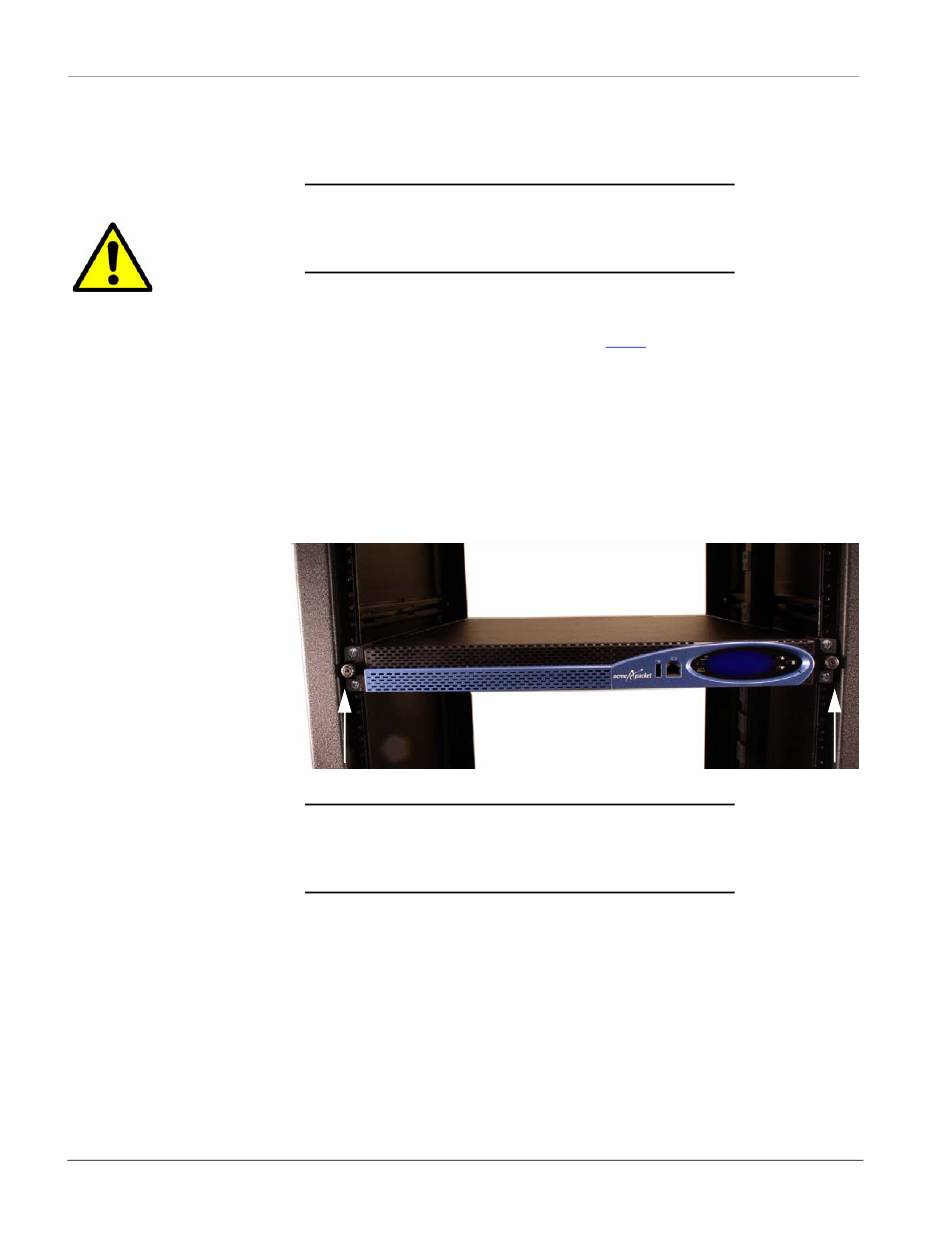

4. Unscrew the thumb screws that secure the Acme Packet 4500 chassis to the rack
rails. This may require using a #2 Phillips screwdriver.
Beginning in this step, one person should support the Acme
Packet 4500 from below while the other person removes the
system chassis from the equipment rack.
5. Pull the Acme Packet 4500 forward and out of the equipment rack.
6. Lift the Acme Packet 4500 out of the equipment rack, and set it on a flat and
stable surface.
MAINTENANCE
Safety chapter before proceeding.
Acme Packet 4500 Hardware Installation Guide 75
