Version 1.0
3.

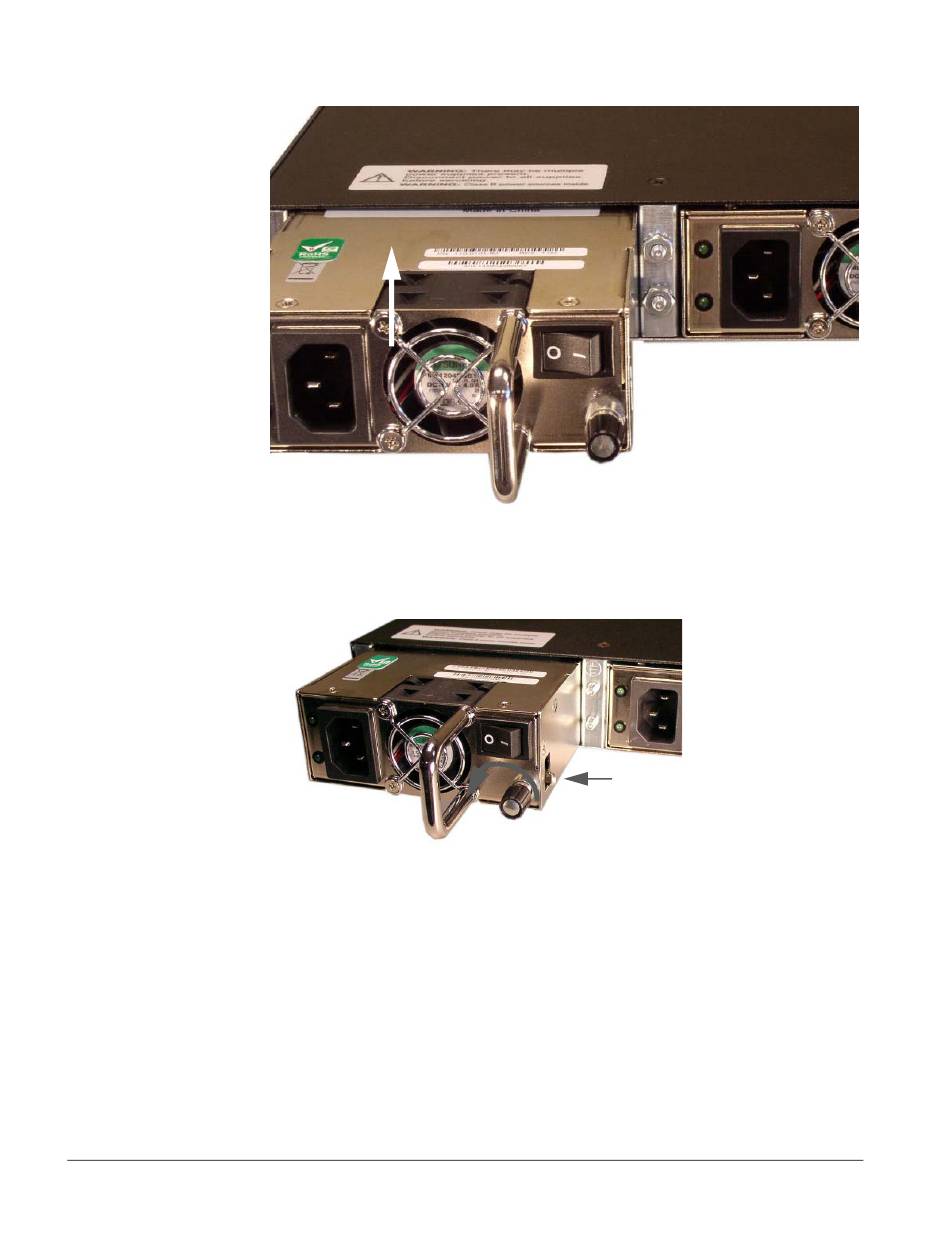

Insert the power supply into the power supply bay located on the rear panel of
the Acme Packet 4500 chassis in the orientation shown below. The labels on the
power supply face upward.
4.
Turn the locking screw counterclockwise until it stops. This retracts the locking
mechanism and the power supply can be completely inserted into the system
chassis.
locking tab retracts and
should not be protruding
from the supply prior to in-
stallation
Acme Packet 4500 Hardware Installation Guide 79
MAINTENANCE
