MAINTENANCE

Fan Module and Filter Maintenance

Removing and
Replacing the Fan
Module
Caution
80 Acme Packet 4500 Hardware Installation Guide

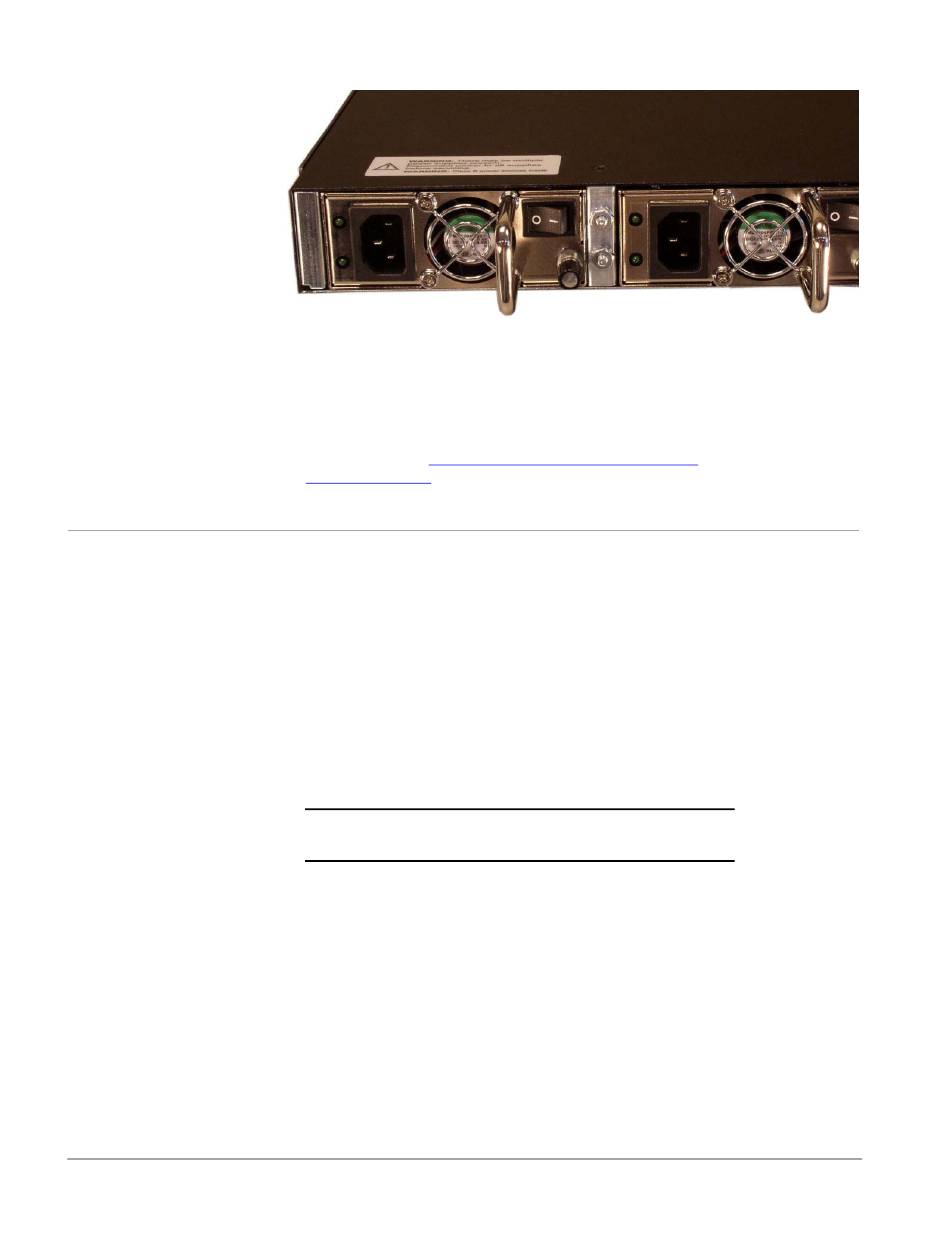

5. Continue pushing the power supply into the system chassis until it is fully
inserted. It will be flush with the real panel.
6. Turn the locking screw fully clockwise until snug to lock the power supply into
the chassis.
Note: Connect the power cord to the inserted power supply as
described in the "Ground and Power Cable Installation"
System Installation chapter of this guide.
This section explains how to remove and replace the fan module and filter on your
Acme Packet 4500.
The fan module is a user-serviceable, hot-swappable component. If the Acme Packet
4500 experiences a fan module malfunction, you must remove the existing fan
module and replace it with a functional one.
The hot-swappable fan module removal and replacement procedures require that
you have a replacement fan module on hand. In order to maintain system
operations, you must be able to remove the malfunctioning fan module and quickly
replace it with a functioning one to prevent the system from overheating.
An over temperature condition can stop packet processing.
If you do not have a replacement fan module nearby, always shut down the system
and disconnect the power before removing the malfunctioning fan module to
replace at a later time.
When removing and replacing a fan module, remember to first ground yourself
using appropriate ESD grounding equipment such as a wrist or heel strap.
section of the
