COMPONENT OVERVIEW
12 Acme Packet 4500 Hardware Installation Guide
•

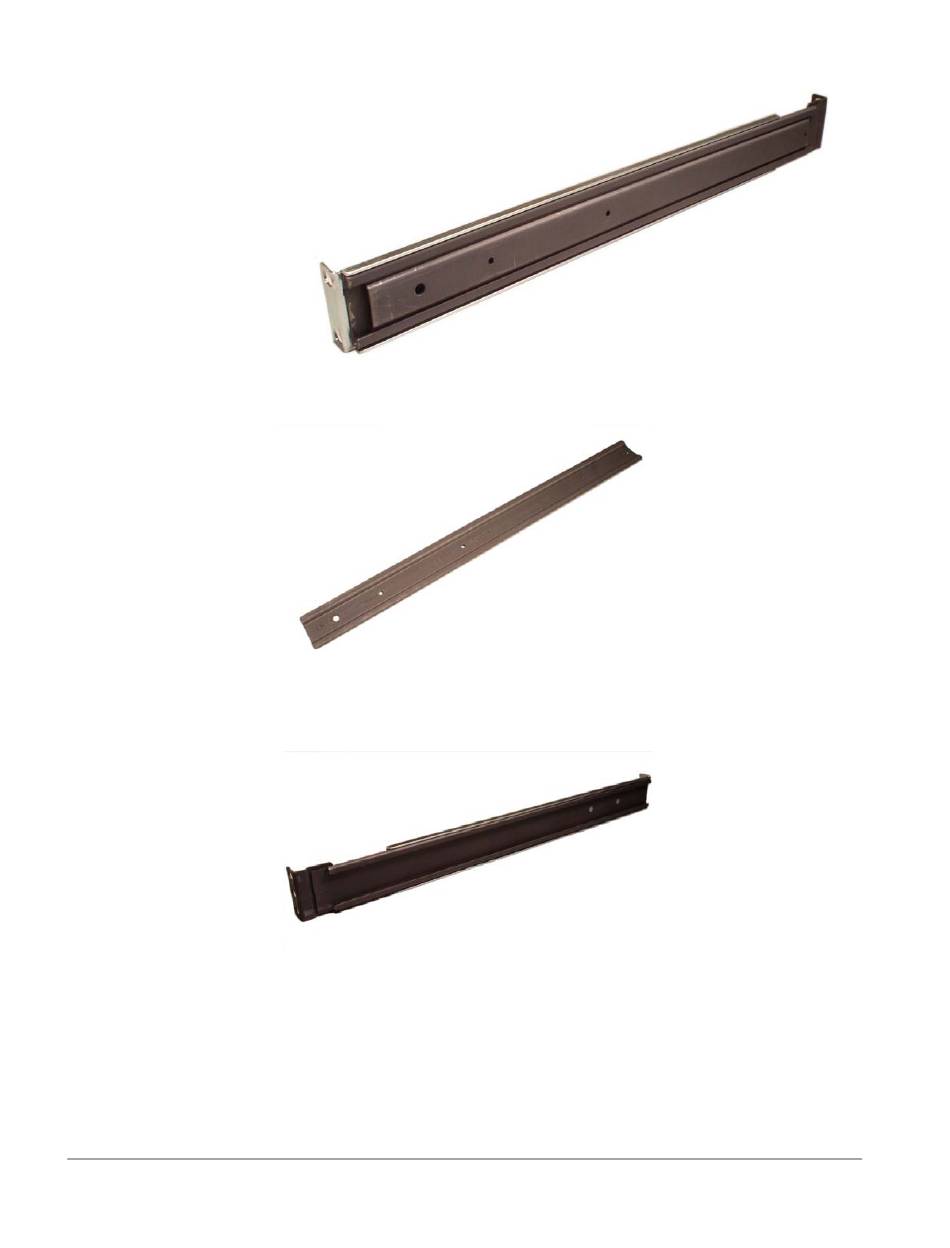

The chassis section slides are shipped inserted into the stationary section slides
as shown in the following image:
You screw the chassis section slides in place on both sides of the Acme Packet
•
4500. These slides are reversible and can be used on either side of the system
chassis. The following image is a chassis section slide.
•
The stationary slides are mounted in the equipment rack and are secured in the
front and rear. These slides are reversible and can be used on either side of the
equipment rack. The following image shows a stationary slide, with its front rack
rail mounting point on the left.
Version 1.0
