Caution
AC Power Cord
Installation
Caution
Version 1.0
Always make the ground connection first and disconnect it last
when installing or removing the system from an equipment
rack.
This section shows you how to install an AC power cord.
Use a 5 Amp fused circuit for each AC power supply.

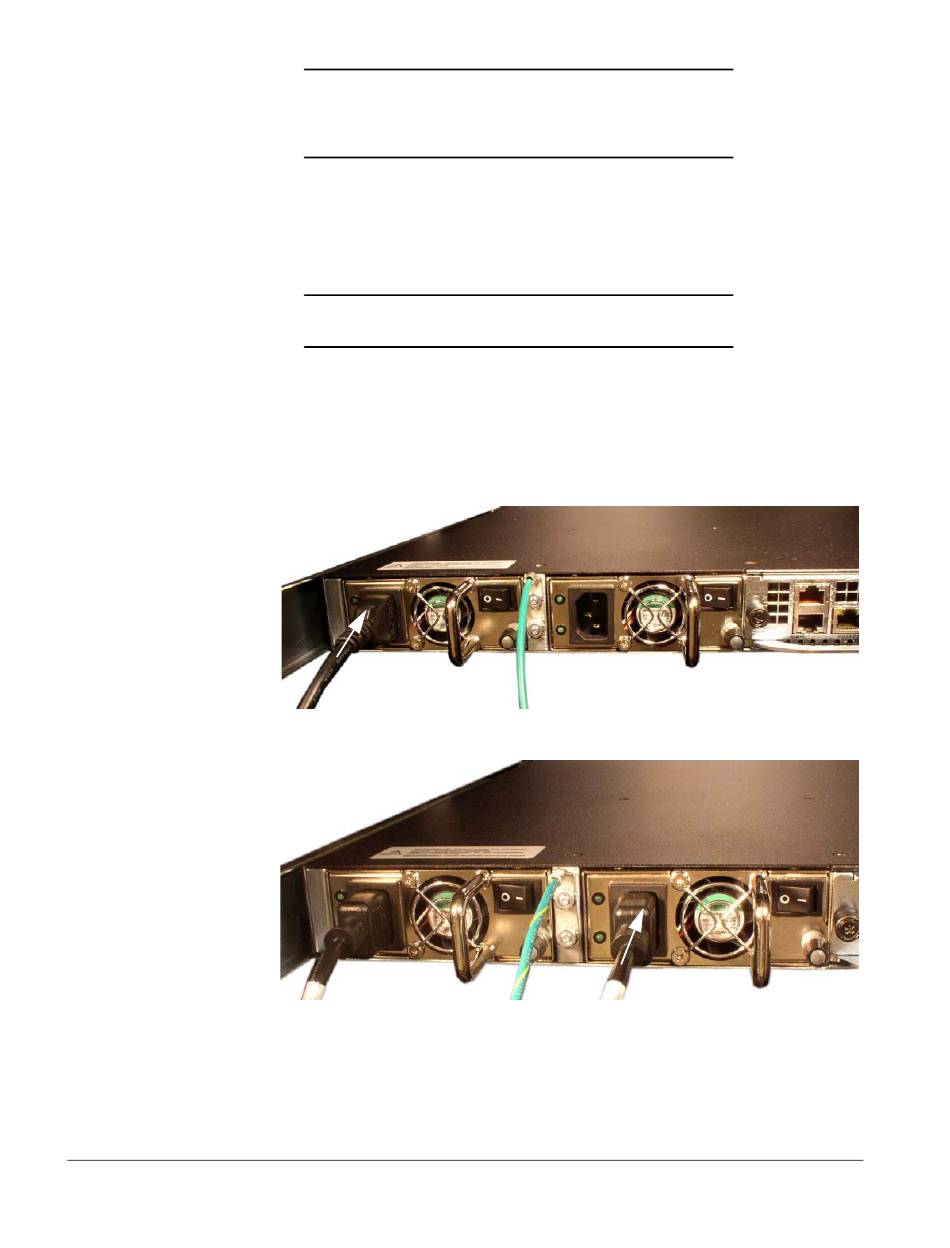

To install the AC power cords in the Acme Packet 4500:
1.
Locate the two AC power cords shipped with your Acme Packet 4500. Choose
one power supply to work on first.
2.
Connect one power cord to the power supply by inserting the 3-lead IEC-320
plug into the IEC connector located on the power supply.
3.
Connect the other power cord to the power supply by inserting the 3-lead IEC-
320 plug into the IEC connector located on the power supply.
4.
Route the AC power cords through your rack and cabling system to the power
outlets.
5.
Plug the supply end of each power cord into its own circuit.
SYSTEM INSTALLATION
Acme Packet 4500 Hardware Installation Guide 51
