4.

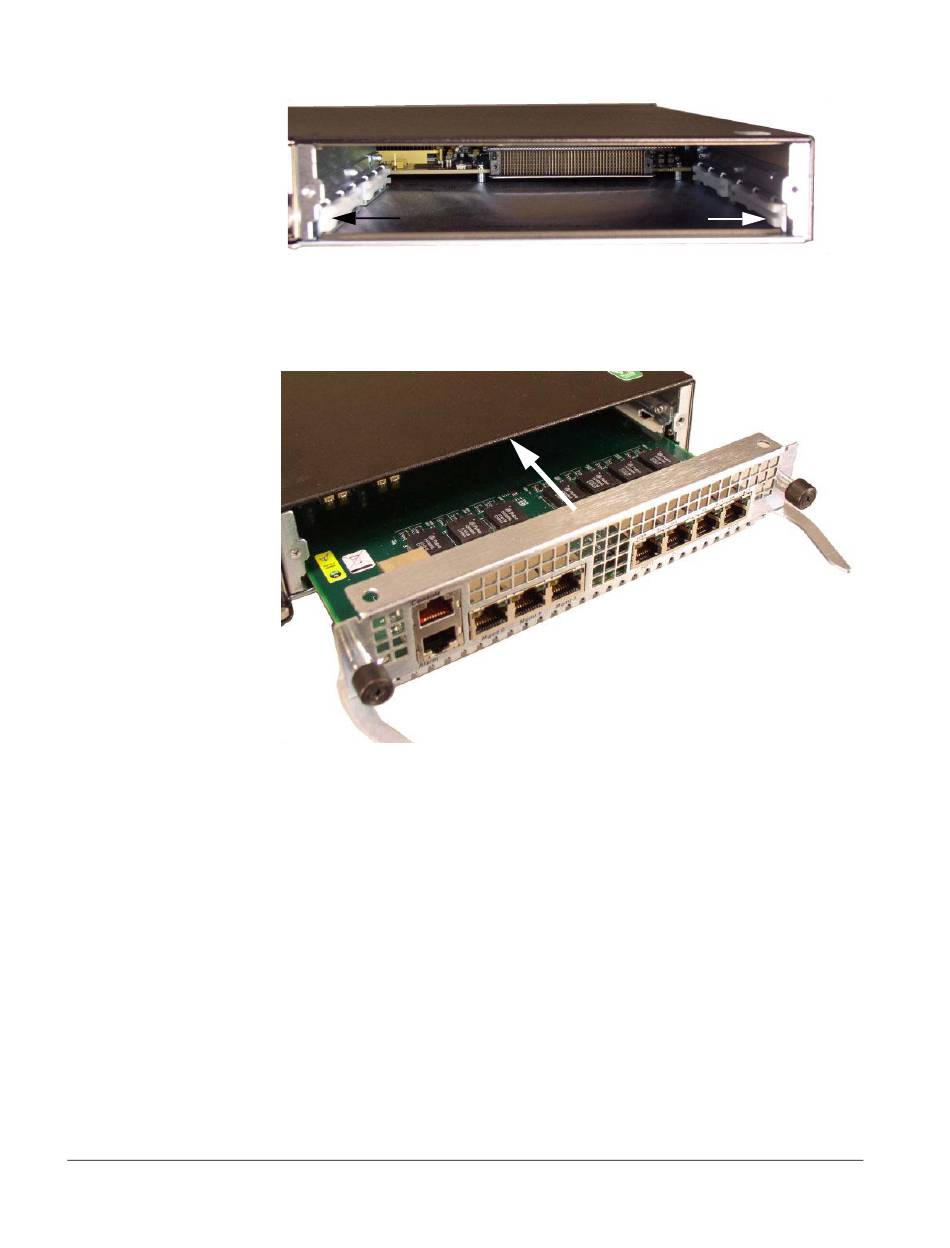

Note the two flared guide rails that the NIU rides as it is inserted into the Net-
Net 4500 chassis.
The guide rails guide the interface unit to engage the NIU bus connector
squarely.
5.
Slide the card into the Acme Packet 4500 chassis. The physical interface card
circuit board slides into the guide rails in the NIU bay of the system chassis.
MAINTENANCE
Acme Packet 4500 Hardware Installation Guide 87
