Version 1.0
•
2 x nut bars
2.
Line up the painted side of the stationary rail with an appropriate mount point
on the front of the equipment rack.
3.
Place 2 x 10-32 screws through the mounting spacer, through the stationary rail
ear, through the square rack rail.
4.
Hold the nut bar behind the front rack rail.
5.

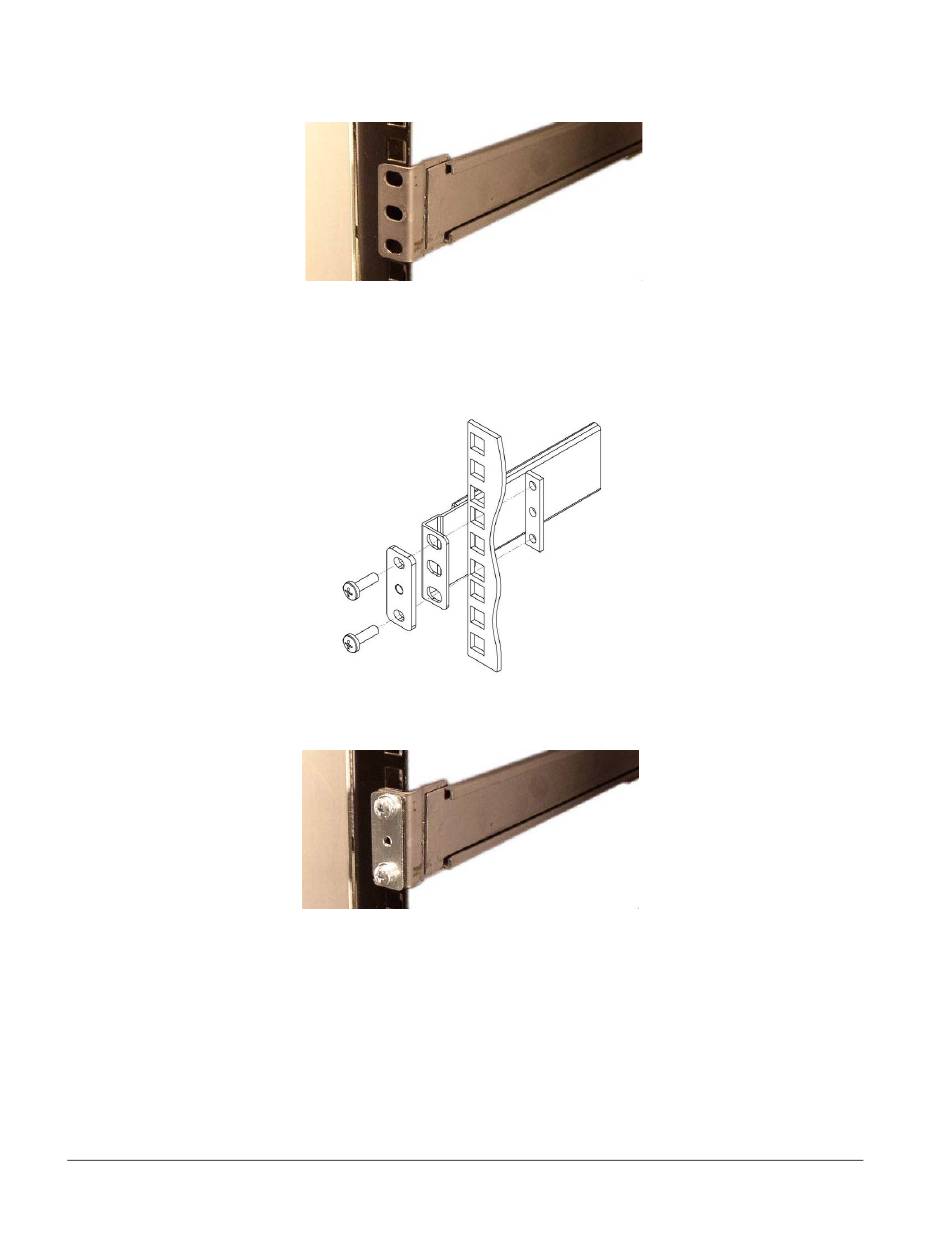

Secure the 10-32 screw to the nut bar you are holding in place. Refer to the
following exploded view of procedure:
Do not completely torque the screws; leave a small amount of play at this point.
6.
Repeat Steps 3 - 5 for the other mounting point.
7.
Repeat this procedure for the other stationary slide
To install the stationary rails on the rear of a square hole equipment rack:
Note: The images used in this procedure refer to the stationary slide
without slide extenders installed. The procedure is essentially the same
with the slide extender's flange placed on the outside of the rear rack
rail.
1.
Locate the following components:
SYSTEM INSTALLATION
Acme Packet 4500 Hardware Installation Guide 43
