COMPONENT OVERVIEW
Front Panel
Front Control
Panel
Reset
Alarm Active LED
14 Acme Packet 4500 Hardware Installation Guide

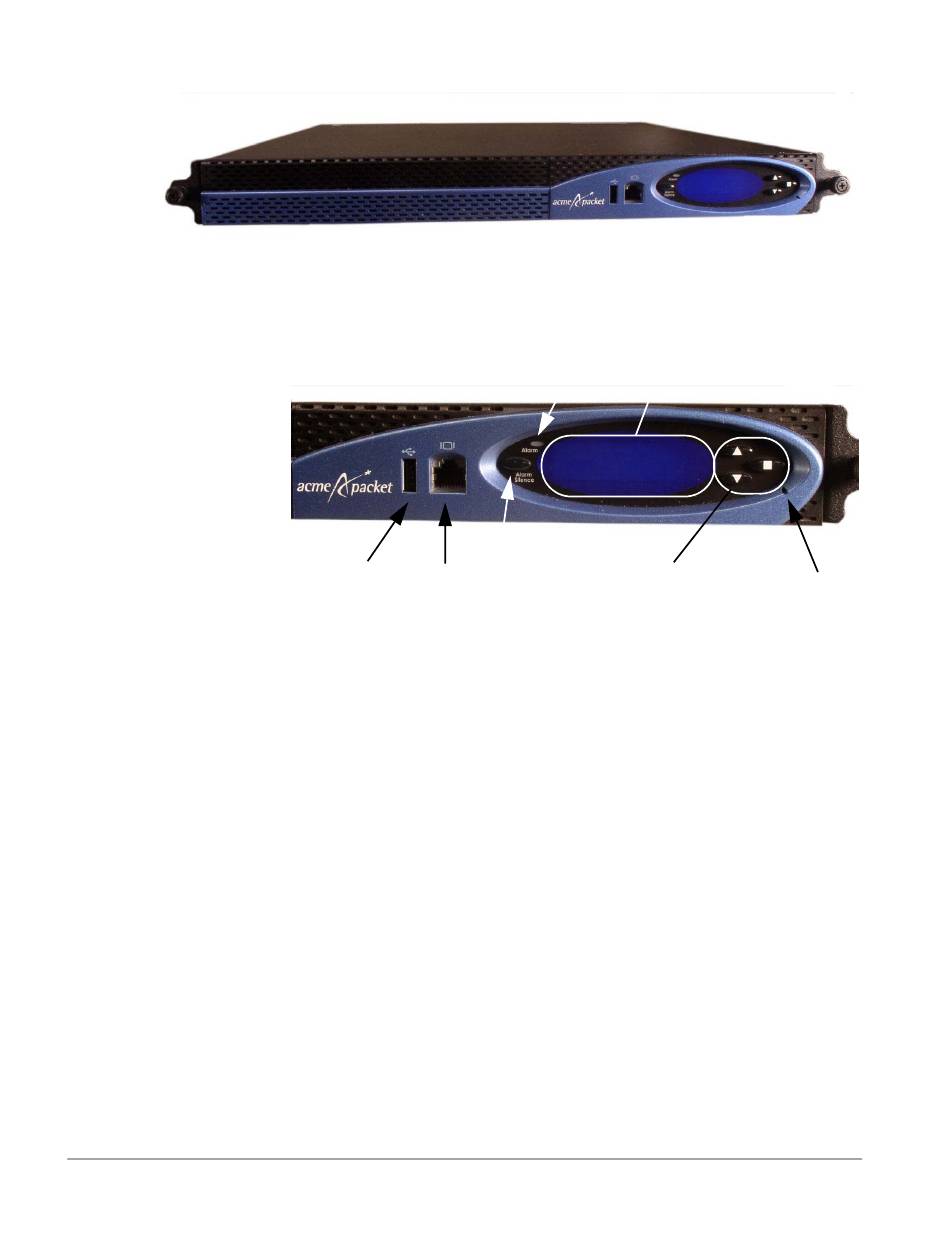

The Acme Packet 4500's front panel looks like this:
The Acme Packet 4500's front control panel provides easy access to several system
components. You can access the graphic display, navigation buttons, reset button,
alarm LED, alarm silence button, console port, and the USB port. The following is a
close up of the front control panel.
Alarm Active LED
Console Port
USB Port
Note: The front control panel on the Net-Net 4500 does not flip down.
Attempting to flip down the front control panel will break it.
In addition, the system fan pack and fan filter are located behind the front panel of
the Acme Packet 4500.
You reset the Acme Packet 4500 by pressing the front panel's reset button. This
button is recessed, and can only be pressed by inserting a thin wire, such as a
paperclip, through the reset button channel. Accidentally pressing the reset button
can result in the loss of software data or your configuration.
Pressing the reset button causes a hard reset, immediately rebooting the Acme
Packet 4500. After the reset button is released, the Acme Packet 4500 begins its boot
sequence and loads the configured software file.
The alarm LED on the front control panel indicates if any alarms are active on the
Acme Packet 4500. The LED can be three different colors to indicate the severity of
the alarms.
Graphic Display
Alarm Silence Button
Navigation Buttons
Reset
