Oracle Acme Packet 4500 Hardware Installation Manual page 55

Alarm Port Cabling
Cabling Procedure
Version 1.0
To connect a console cable to the front panel console port:
1. Locate the console cable you plan to connect to the Acme Packet 4500.
2. Insert the RJ45 connector on the end of the console cable into the console port.
The release tab on the RJ45 jack will click into place when you insert it properly.

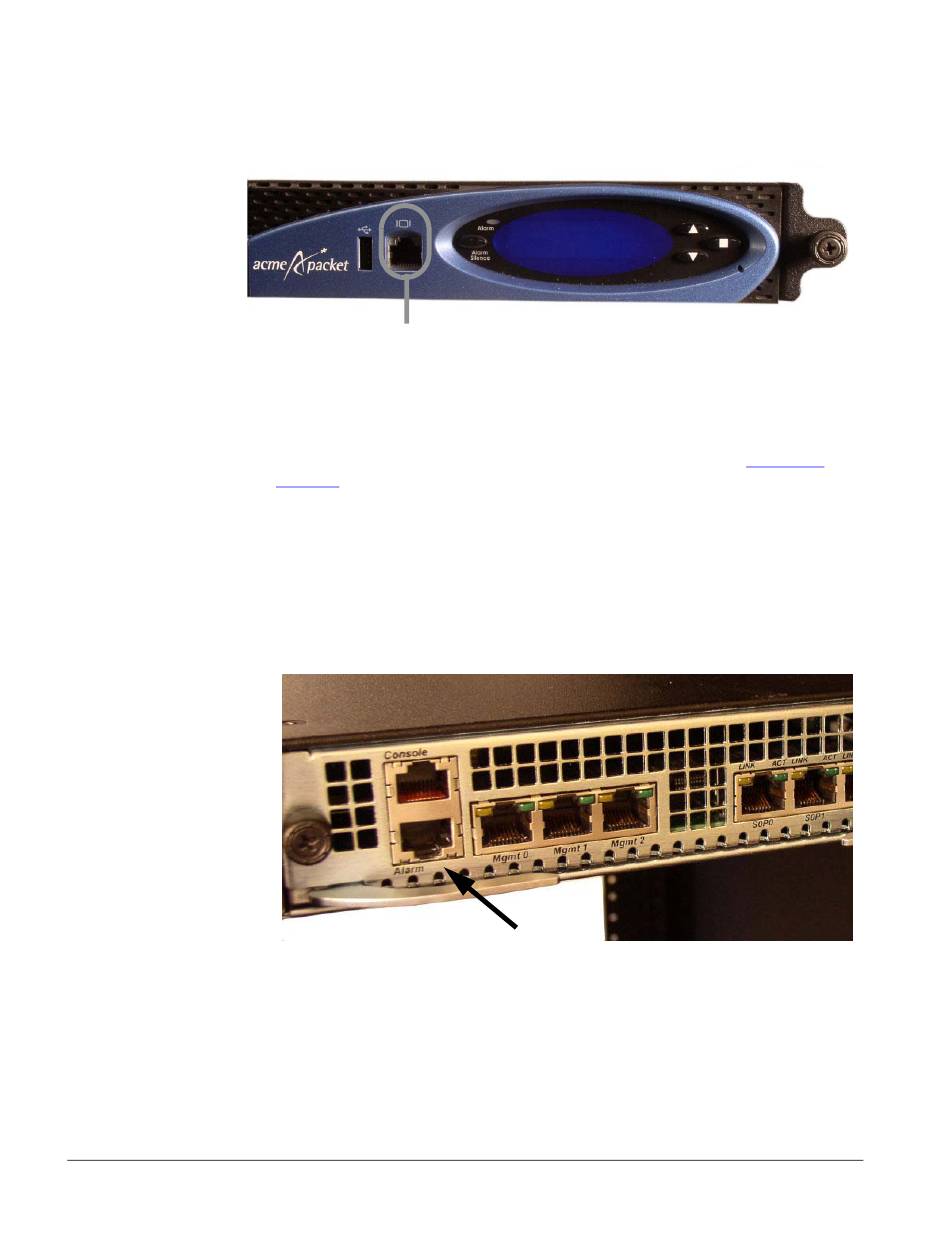

console port
You can use the alarm port to indicate electrically when an alarm has been generated
on the Acme Packet 4500. The alarm port contains leads for three circuits, each of
which closes to signify a corresponding alarm. Refer to this guide's
Overview chapter for how to build an alarm cable and interface it with your
monitoring system.
To connect the alarm port cable to the NIU alarm port:
1. Locate the alarm contact cable you plan to connect to the Acme Packet 4500.
2. Insert the RJ45 connector on the end of the alarm port cable into the alarm port
labeled Alarm. The release tab on the RJ45 jack clicks into place when you insert
it properly.
3. Lead the alarm cable neatly away from the rear panel toward any alarm
monitoring equipment.
SYSTEM INSTALLATION
Component
Acme Packet 4500 Hardware Installation Guide 57
