INTERFACE
Version 1.0
The top menu displays only one category at a time. You press the Enter button
to select a displayed category and show its submenu information.
After 30 seconds of displaying a menu option or submenu information without any
user input, the system automatically returns to the base display during normal
operating conditions or to the alarm display during an alarm condition.

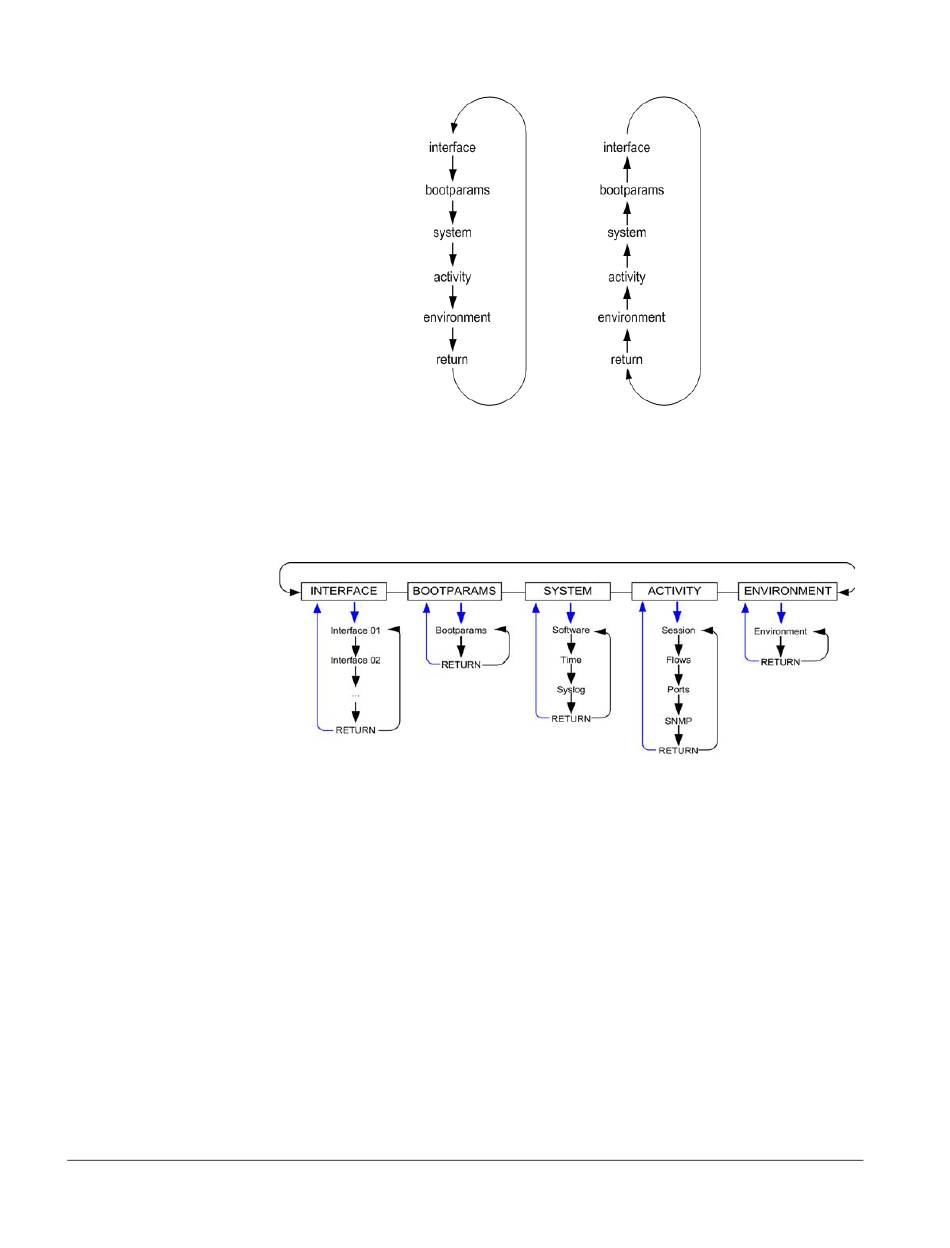

The following diagram shows the complete menu of options available from the
graphic display. Lines in black indicate results from pressing the Up or Down
buttons. Lines in blue indicate results from pressing the Enter button.
The INTERFACE menu allows you to scroll through a list of all configured physical
interfaces. The management and media physical interfaces appear in the list, as does
the loopback interface.
The following information is displayed for each configured interface you scroll to:
Interface slot and port: interface status
•
Input packets, output packets
•
Input error packets, output error packets
•
Slot 1: Port0 UP
PKT IN: 1,001K OUT: 223K
ERR IN: 0 OUT: 0
GRAPHIC DISPLAY
