Cabling for HA Deployments

HA Cabling
Rear Panel Cabling
Version 1.0
when you insert it properly. These media and signaling ports from left to right
are labeled: S0P0, S0P1, S1P0, S1P1.
Route the cable away from the Acme Packet 4500. Make sure that the fiber optic
cables are not stretched tightly or subjected to extreme stress.

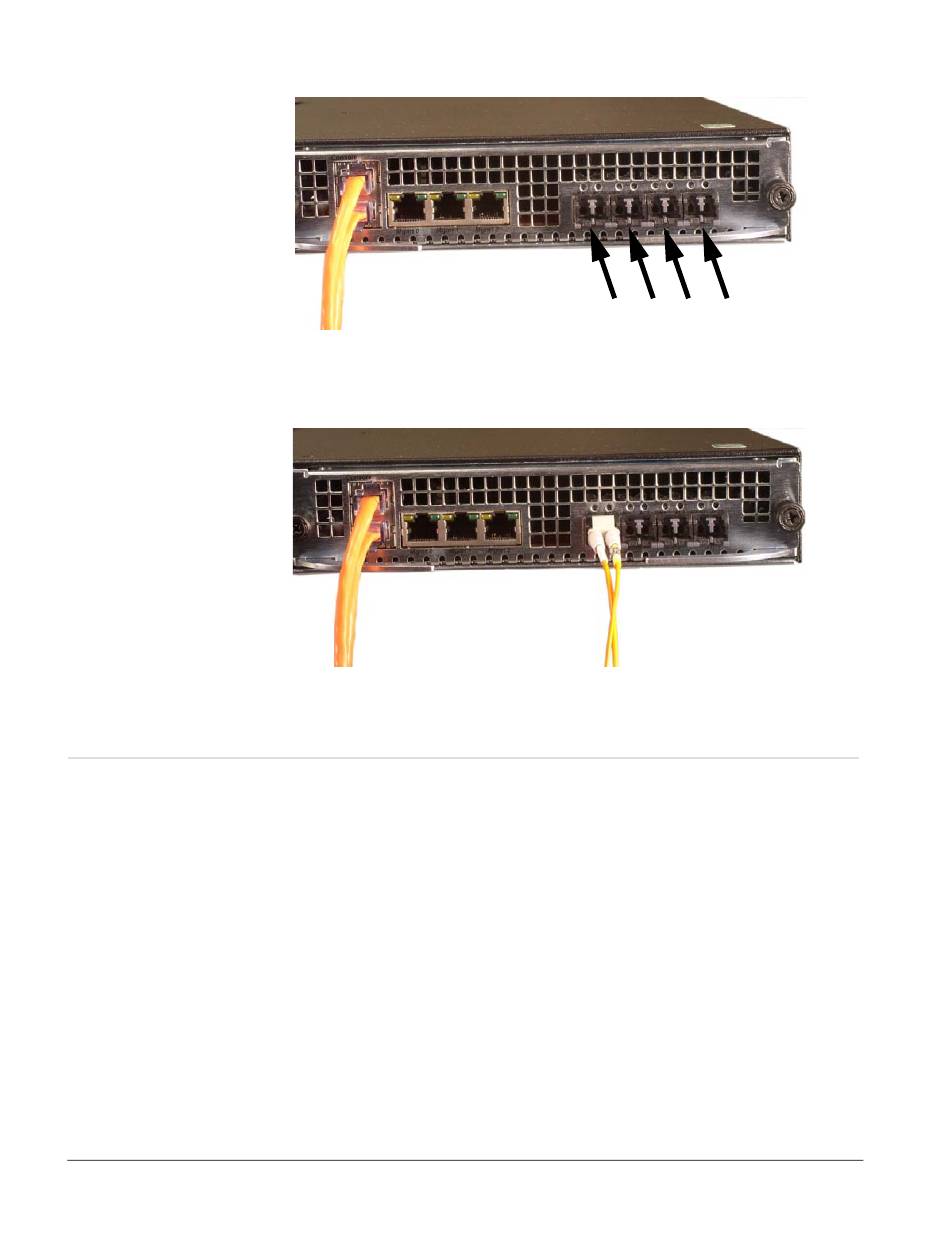

The following figure shows a Acme Packet 4500 with media network cable
properly connected and inserted in S0P0.
3. Repeat Steps 1 through 2 for each additional fiber optic cable you connect to
your Acme Packet 4500.
The information and instructions in this section explain how to cable an HA node.
Category 5 (or higher) shielded Ethernet cables are required for cabling two HA
nodes together.
You can use one or two connections for HA redundancy support between the two
members of an HA node. Using two rear interfaces for sharing redundancy
information provides a high level of reliability. As a rule, Mgmt0 should be reserved
SYSTEM INSTALLATION
Acme Packet 4500 Hardware Installation Guide 61
