Network
Management Ports
Ethernet LED
Link LED
Activity LED
Version 1.0
Pin Number
7
8
The Acme Packet 4500 has three 10/100/1000 Base-T Ethernet ports located on the
NIU. These ports are used for EMS control, RADIUS accounting, CLI management,
SNMP queries and traps, and other management functions. Refer to the following

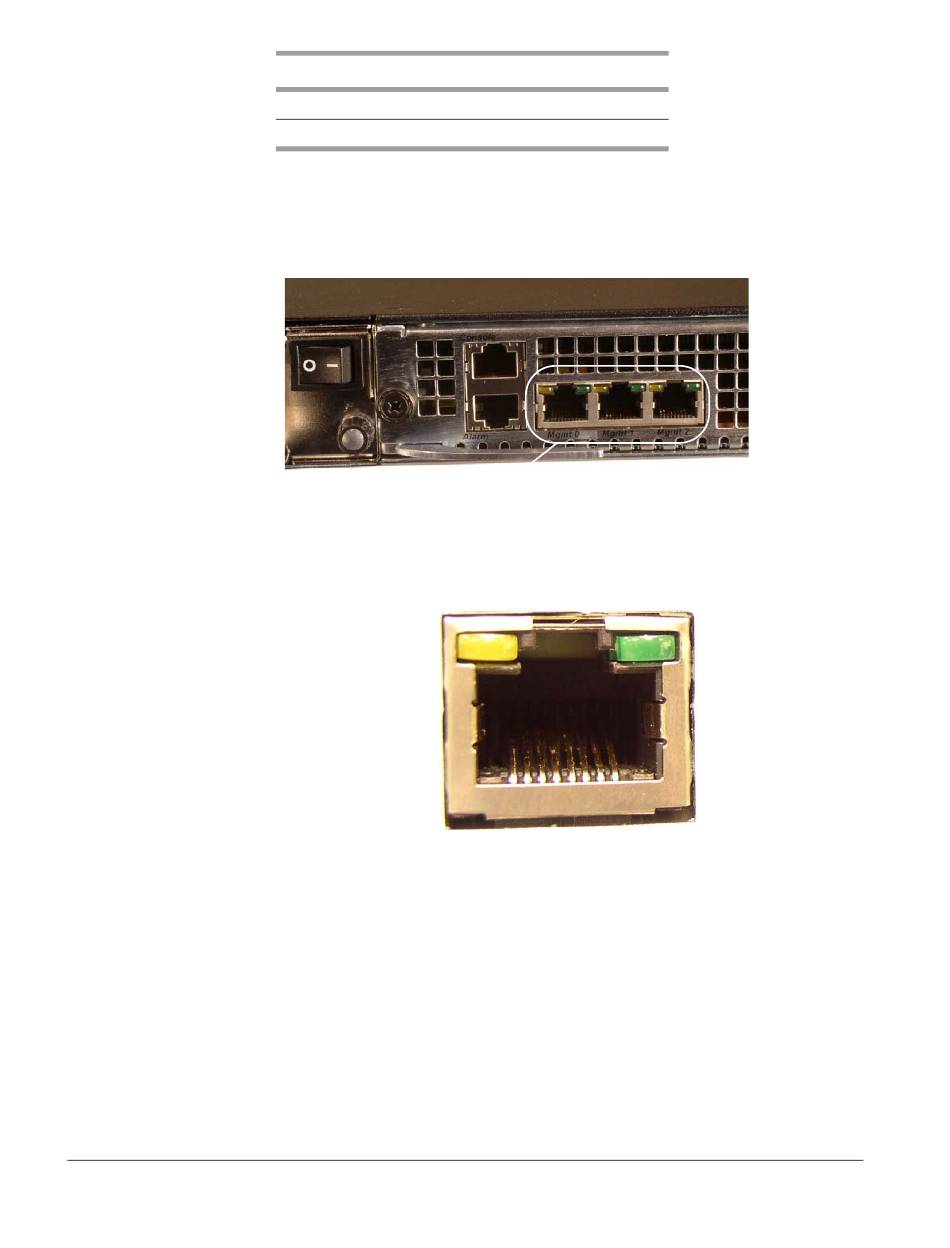

image of the Acme Packet 4500's NIU to see the location of these Ethernet ports.
Each Ethernet jack has two integrated LEDs: one to indicate Link, and one to
indicate Activity. The LED pair is located directly above its associated port.
The link LED is located to the top left side of the Ethernet port. This LED illuminates
orange when link has been established between the link partner device and the Net-
Net SBC.
The activity LED is located to the top right side of the Ethernet port. It illuminates
green when an Ethernet connection has either transmit or receive packet activity.
Signal Name/Description
Ground
Ground
Ethernet Ports
