SYSTEM INSTALLATION
Cabinet-style 4-Post Chassis Installation
Mounting System
Installing the
Stationary Slides
38 Acme Packet 4500 Hardware Installation Guide

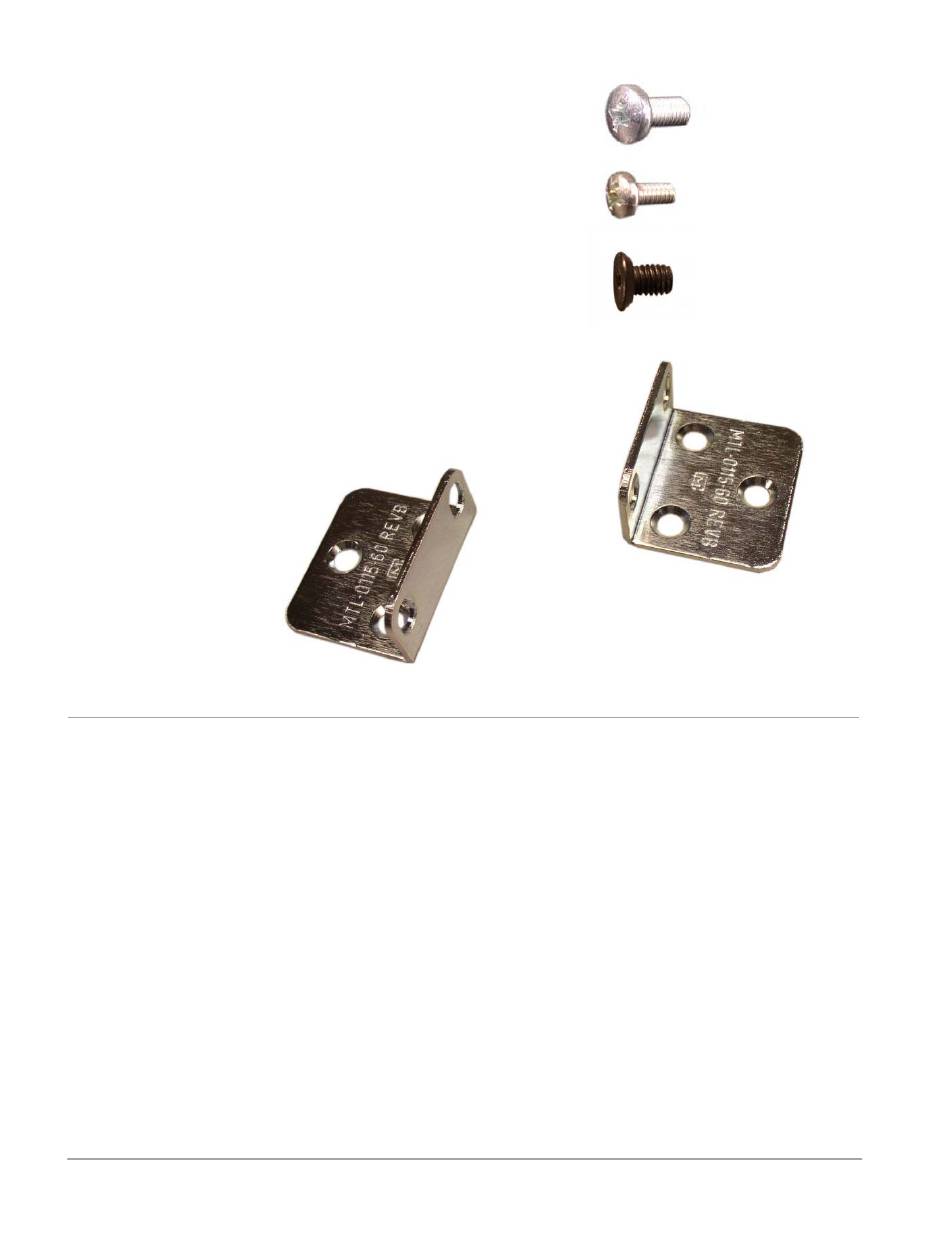

Phillips Screw 10-32 x 5/8" (8 x shipped):
Phillips Screw 6-32 x 5/16" (6 x shipped)
Flat Head Screw 10-32 x 5/16" (6 x shipped)
Center mounting ears (2 x shipped)
The following sections explain how to mount your Acme Packet 4500 in a cabinet-
style, 4-post equipment rack.
Acme Packet provides flexible mounting options for your Acme Packet 4500
equipment rack installation.
Stationary slides are mounted on each side of the equipment rack. Complimentary
chassis slides are mounted on each side of the Net-Net 4500 chassis. Once the
equipment rack and chassis hardware is in place, you insert the chassis, on its slides
into the equipment rack mounted slides. When the Net-Net 4500 is fully inserted
into the equipment rack, it is secured in place with two thumb screws.
In this first stage of system installation, you secure the stationary slide to the
equipment rack. The painted end of the stationary rail is attached to the front of the
equipment rack and the bare steel side is attached to the rear of the equipment rack.
The stationary rail can expand and contract to accommodate equipment racks of
various depths.
