MAINTENANCE
88 Acme Packet 4500 Hardware Installation Guide
6.

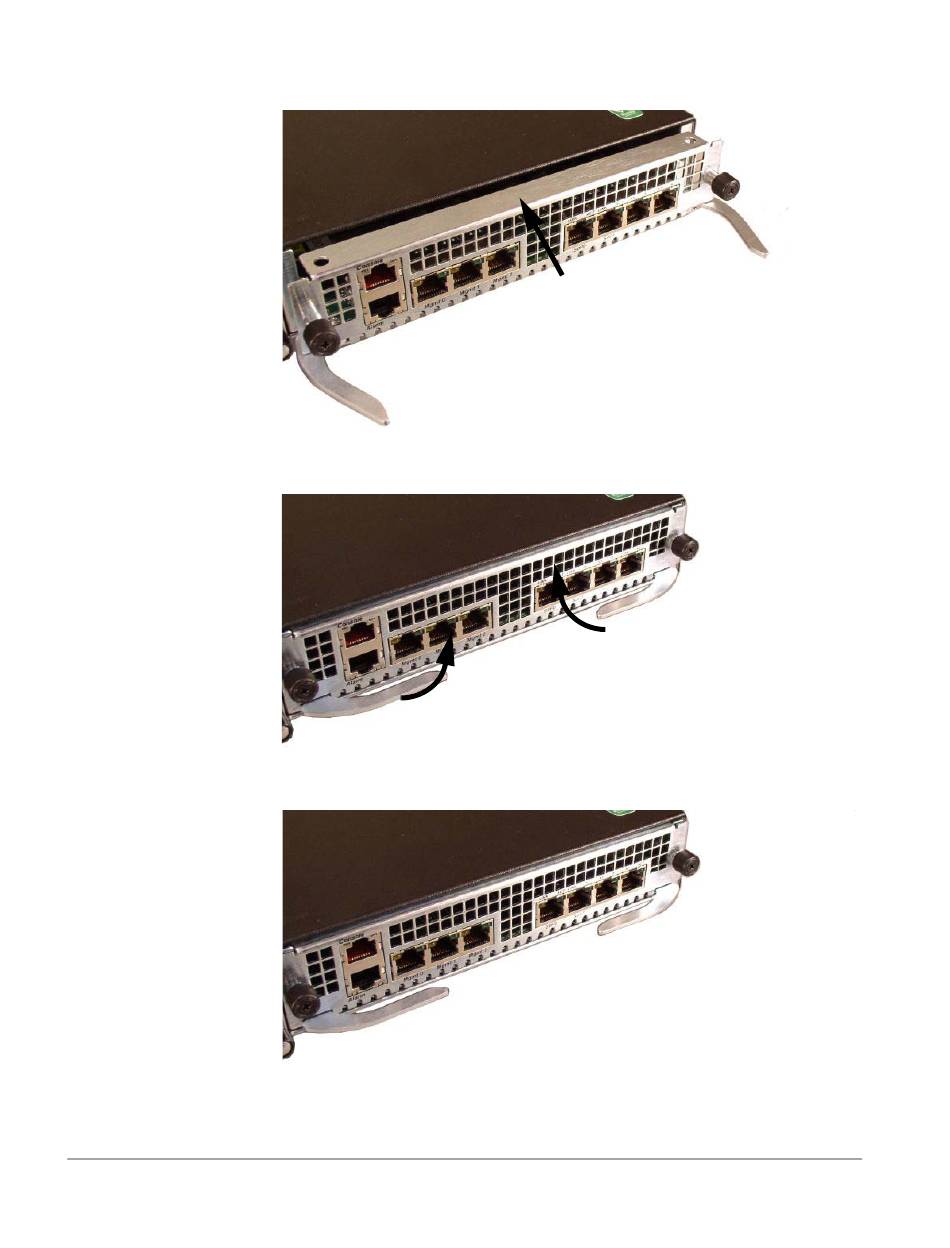

Continue sliding the card into the chassis until the ejection levers catch the
chassis. At this point, the ejection levers will start to fold inward as the NIU is
inserted into the chassis.
7.
Fold both ejection levers inward toward the card to complete the connection to
the motherboard. Pushing the ejection levers inward draws the physical
interface card toward the system chassis and completes the connection.
8.
Screw the NIU into the chassis with a #2 Phillips screwdriver. This creates the
final connection between the interface unit and the chassis.
9.
Replace all network and management cabling.
Version 1.0
