Slide Extender
Installation
Tapped Hole Rack
Installation
Version 1.0
You can mount the stationary rail to both tapped hole rack rails and square rack rails.
Follow the appropriate procedure below.
This sections applies to both tapped and square hole installations. If the distance
between the equipment rack's front and rear rails is between 28" and 32" (71.1 cm
and 81.3 cm), the slide extenders are required for mounting the system. Attach these
slide extenders to the stationary slides as a preliminary step in Acme Packet 4500
installation.
To install a slide extender on a stationary slide:
1.
Locate the following components in the slide extender bag:
2 x slide extenders
•
4 x 10-32 x 3/8" screws with square cone washer
•
2.

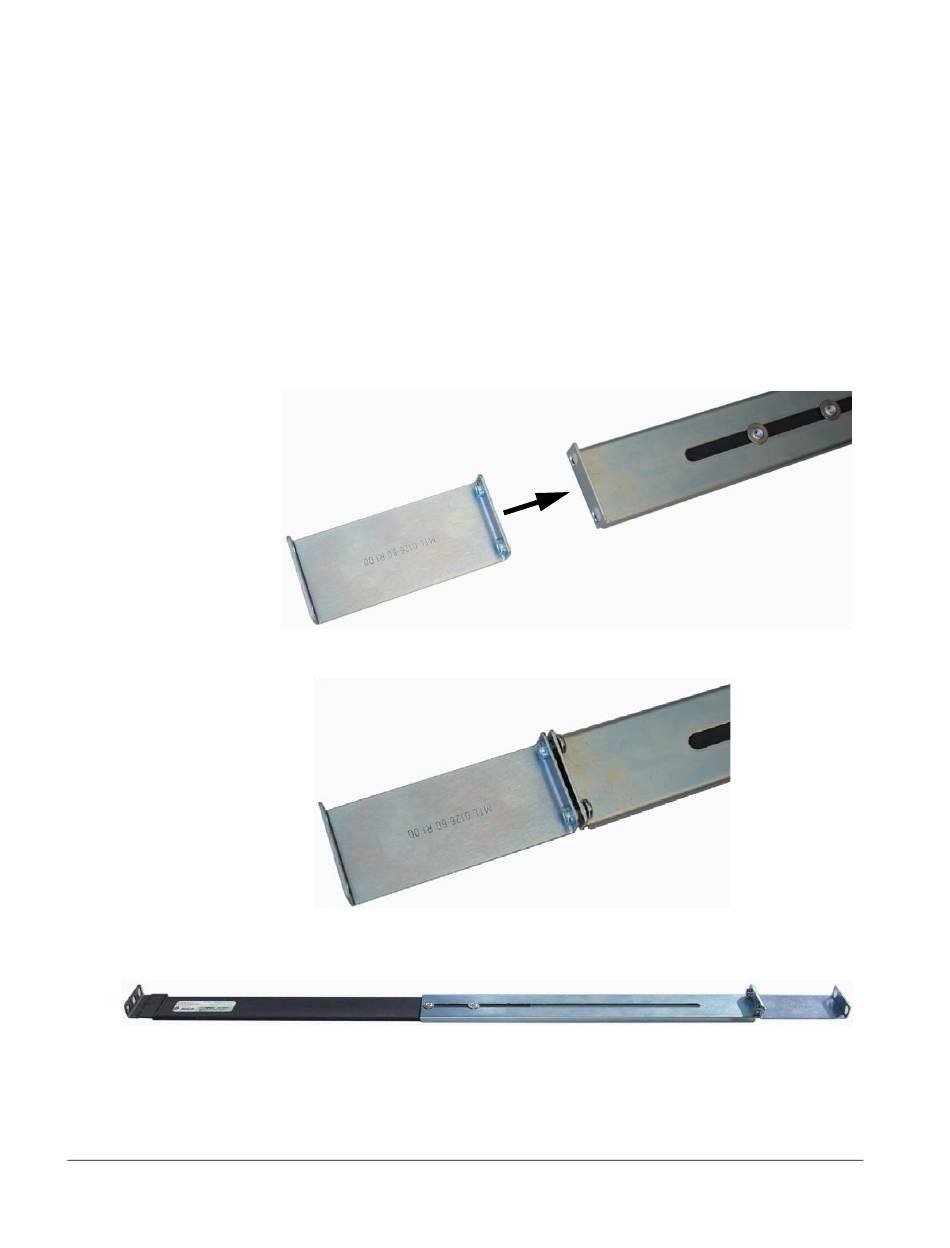

Align the threaded clinch nuts on the slide extender to the stationary slide's
unpainted flange:
3.
Insert and secure both of the screws, through the stationary rail flange into the
slide extender. Be sure to torque these screws generously for a secure mounting.
4.
Repeat steps 2 and 3 on the other stationary slide. A completed slide should
resemble the following:
This section explains how to mount the Net-Net 4500's mounting rail assembly in a
tapped hole equipment rack.
SYSTEM INSTALLATION
Acme Packet 4500 Hardware Installation Guide 39
