Media and
Signaling Network
Interfaces
GigE Copper Cabling
Procedure
Version 1.0

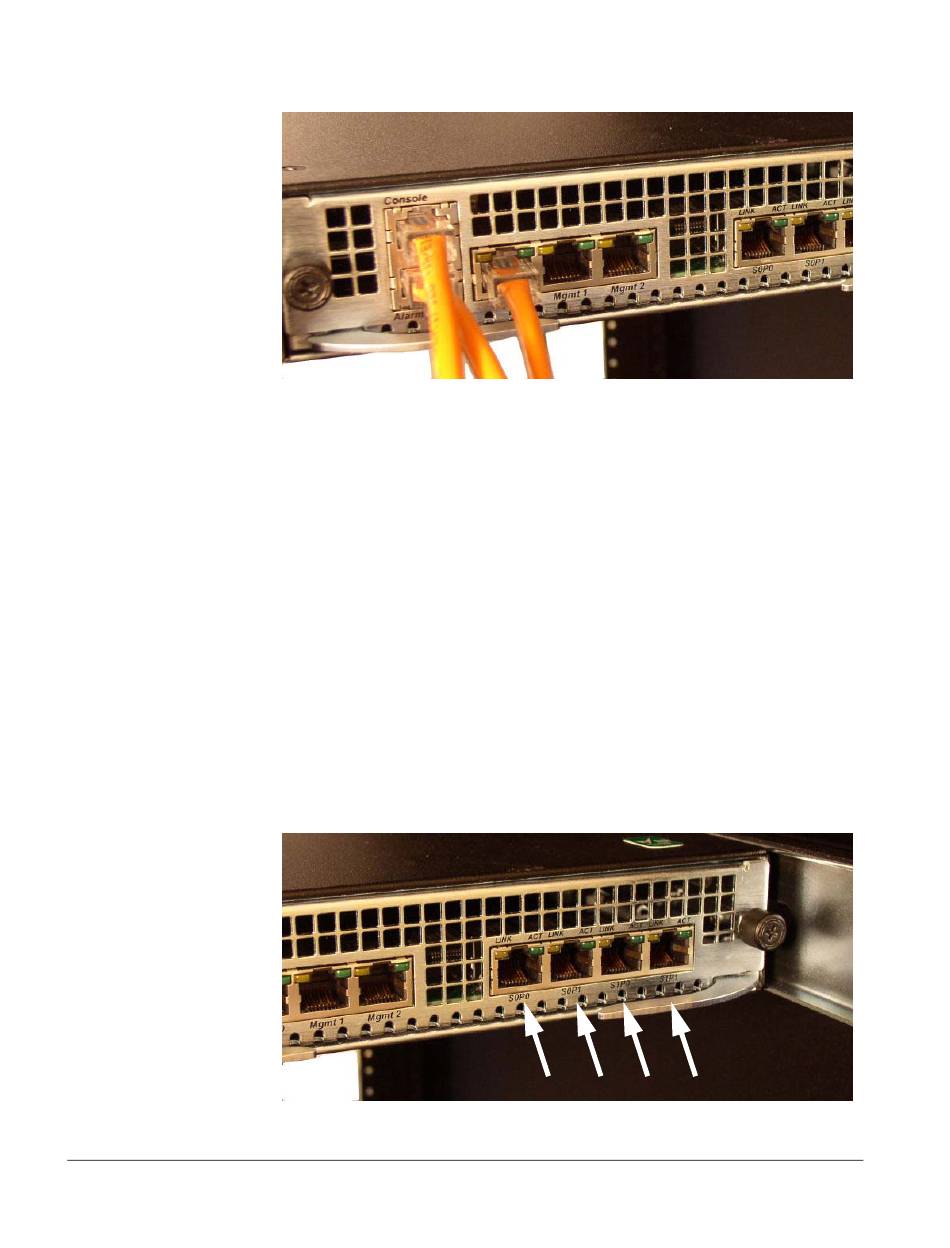

The following figure shows a Acme Packet 4500 with a network management
cable properly connected and inserted in Mgmt0 (in addition to the Alarm and
Console cables).
3.
Repeat Steps 1 through 2 for each additional management Ethernet cable you
will connect to your Acme Packet 4500.
This section explains how to cable the NIU for media and signaling. The NIU is
available with either GigE copper or optical SFP Ethernet connectors.
Note: Perform all cabling procedures according to the established
standards for your organization.
Shielded CAT 5e or CAT 6 (or higher) Ethernet cables with RJ45 jacks are used for
connecting the Acme Packet 4500's GigE copper NIUs to your production network.
To connect Ethernet cables to the GigE Copper ports on the NIU:
1.
Locate the Ethernet cables you plan to connect to the Acme Packet 4500.
2.
Insert the RJ45 connector on the end of the Ethernet cable into one of the GigE
copper NIU media and signaling ports. The release tab on the RJ45 jack will click
into place when you insert it properly. These media and signaling ports from left
to right are labeled: S0P0, S0P1, S1P0, S1P1.
SYSTEM INSTALLATION
Acme Packet 4500 Hardware Installation Guide 59
