Maintaining the
Cooling
Components
Version 1.0
4.

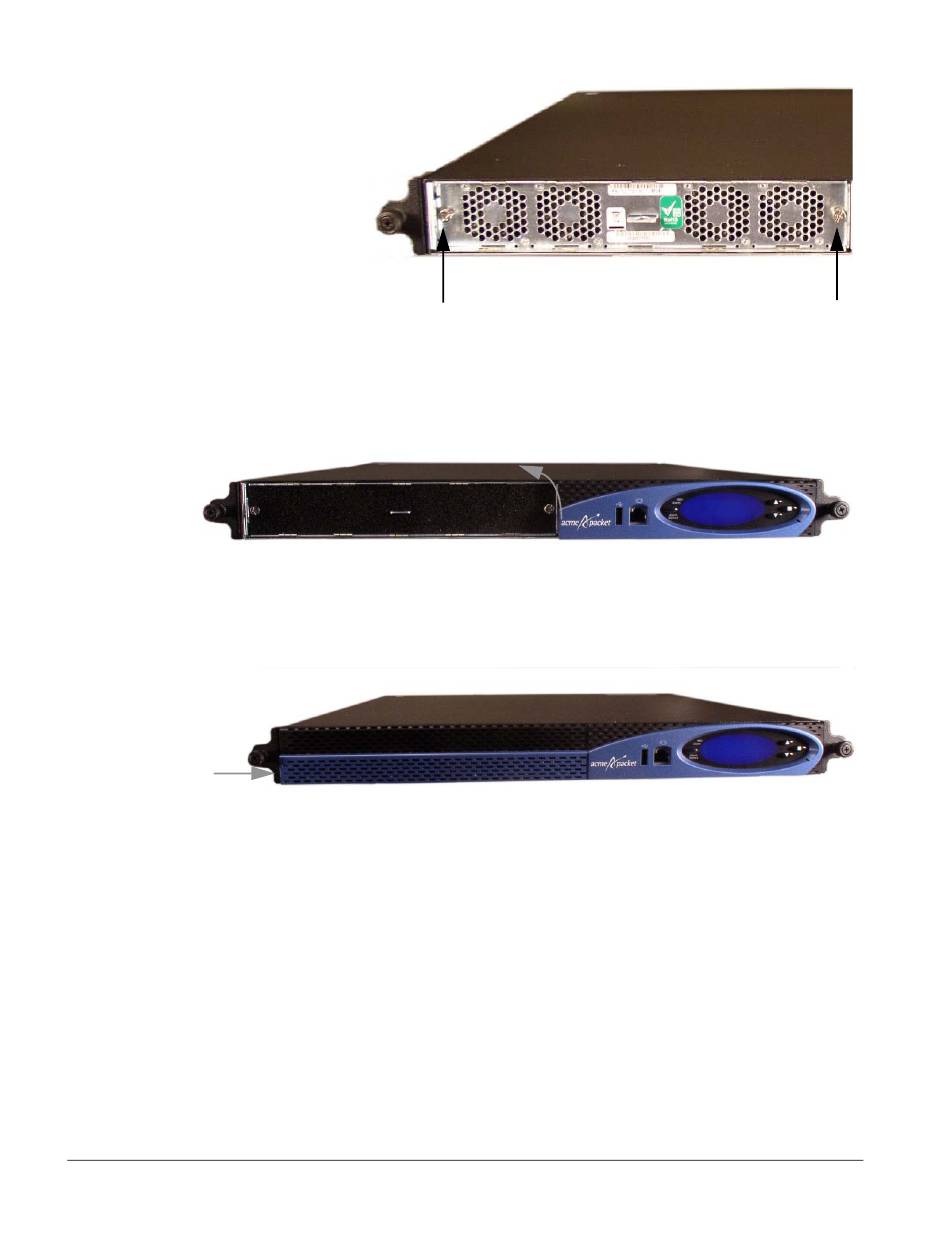

Screw the two captive screws through the fan module and into the chassis using
a #2 Phillips screwdriver.
Note: Ensure that you hear the exhaust fans spinning and feel air
pulled into the chassis.
5.
Place the black foam air filter onto the fan module, ensuring that the center slot
in the air filter slides over the fan module pull tab.
6.
Insert the tab on the right-side of the fan bezel into the stationary control panel
slot.
7.
Pivot the fan bezel back toward the chassis so that the bezel's left-side clips snap
into the chassis.
The Acme Packet 4500's air filter removes airborne particles before they are drawn
into the Acme Packet 4500 chassis. To prevent system malfunction and prolong the
life of the system's cooling components:
clean or replace the fan filter every three months
•
clean the air inlets once a week.
•
Cooling maintenance encompasses cleaning the fan module and cleaning the air
inlets on the front of the Acme Packet 4500's chassis. Cleaning the fan module
requires that you remove the module itself. If you are not shutting down the Acme
Packet 4500, this procedure must be performed quickly or else the system may
overheat and cause packet processing to stop.
MAINTENANCE
Acme Packet 4500 Hardware Installation Guide 83
