SYSTEM INSTALLATION
50 Acme Packet 4500 Hardware Installation Guide
To install the grounding cable on the Acme Packet 4500:
1.
Unscrew and remove the two kep nuts from the grounding posts located on the
rear of the Acme Packet 4500. Place them aside.
2.

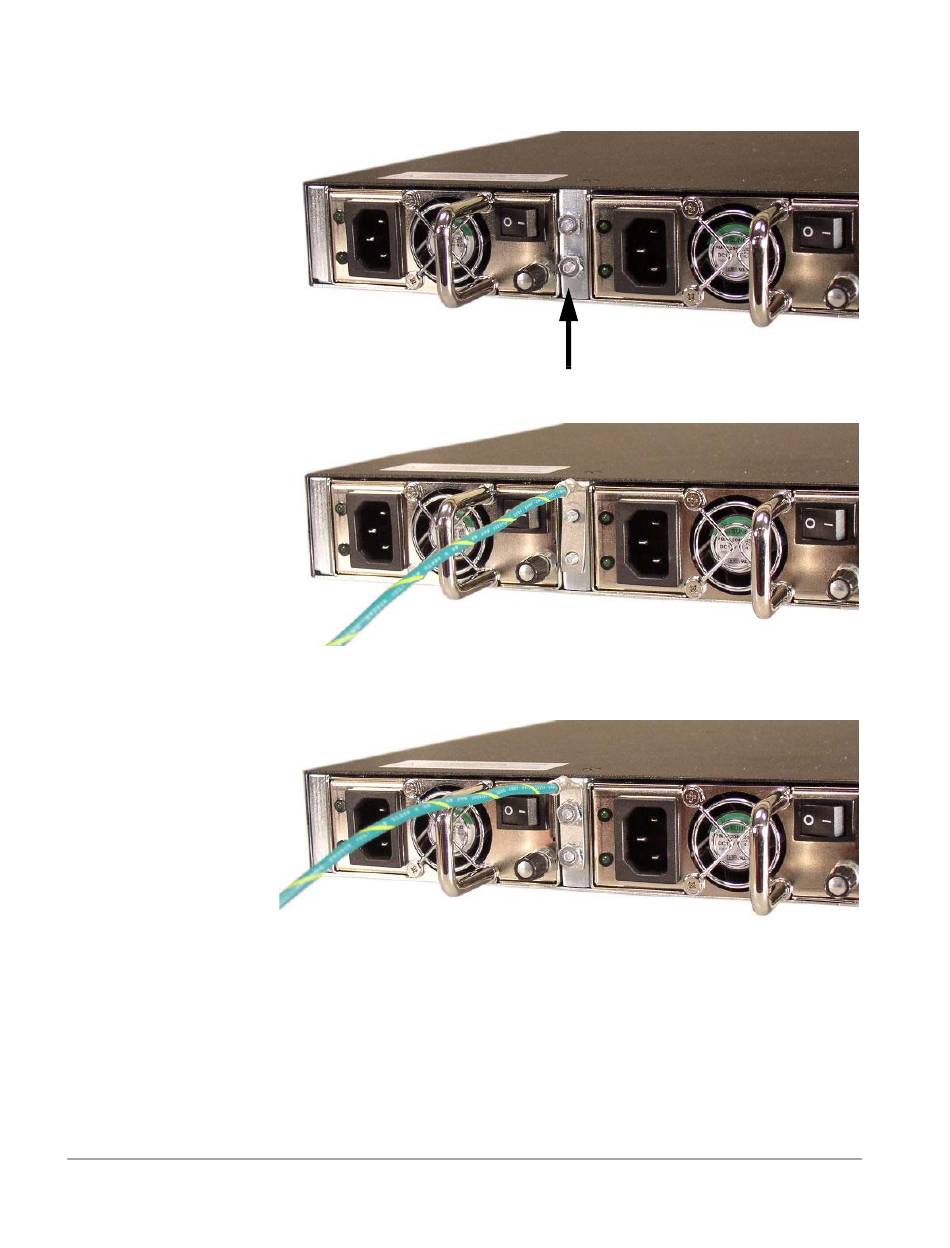

Place the lug on the end of the grounding cable onto the grounding posts in the
orientation shown in the following image.
3.
Screw the two kep nuts onto the grounding post, securing the grounding lug in
place. When attached correctly, the grounding lug fits snugly between the
chassis's rear panel and the kep nuts.
4.
Connect the other end of the grounding wire to a suitable grounding point at
your site.
Version 1.0
