Oracle Acme Packet 4500 Hardware Installation Manual page 56

SYSTEM INSTALLATION
Management
Network Ports
Cabling Procedure
58 Acme Packet 4500 Hardware Installation Guide

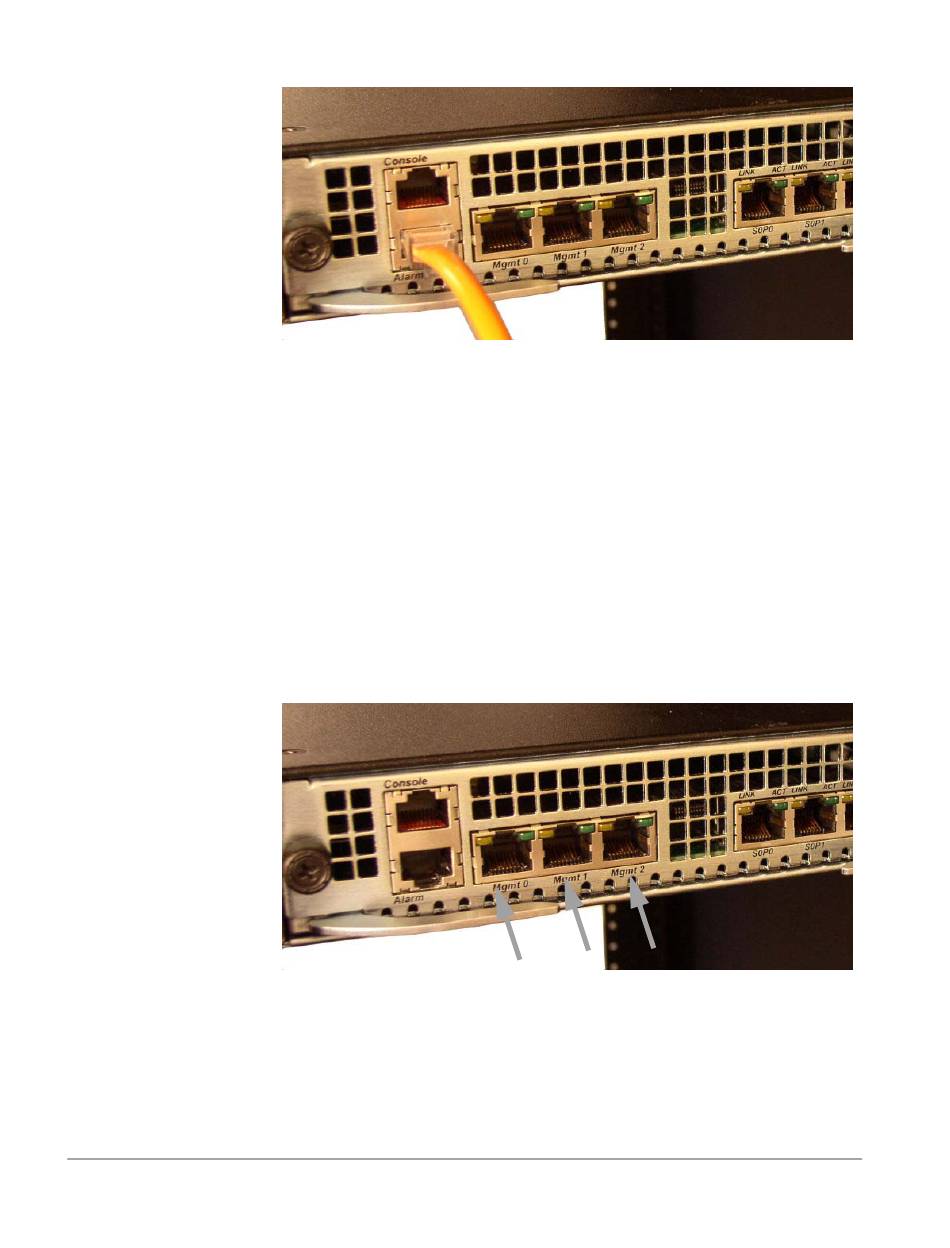

The following figure shows a Acme Packet 4500 with an alarm cable properly
connected.
Standard shielded CAT5e or CAT6 (or higher) Ethernet cables with RJ45 jacks are
used for connecting the Acme Packet 4500's management Ethernet ports to your
network. These ports support 10/100/1000 Mbps speeds.
Note: Keep Ethernet cables separated from power cables by at least
60mm where possible and never run them in the same channel of a
trunking system without segregation.
To connect Ethernet cables to the rear panel Ethernet ports:
1. Locate the Ethernet cables you plan to connect to the Acme Packet 4500.
2. Insert the RJ45 connector on the end of the Ethernet cable into one of the NIU
management Ethernet ports. These ports are labeled Mgmt0, Mgmt1, and
Mgmt2. The release tab on the RJ45 jack will click into place when you insert it
properly.
Route the cable away from the Acme Packet 4500 chassis. Make sure that the
Ethernet cables are not stretched tightly or subject to extreme stress.
Version 1.0
