SYSTEM INSTALLATION
Front Panel Console
Cabling Procedure
56 Acme Packet 4500 Hardware Installation Guide
3.
Insert the RJ45 connector on the end of the console cable into the console port
labeled Console. The release tab on the RJ45 jack clicks into place when you
insert it properly.
4.
Lead the console cable neatly away from the rear panel toward a terminal server
or other component where this serial connection terminates.

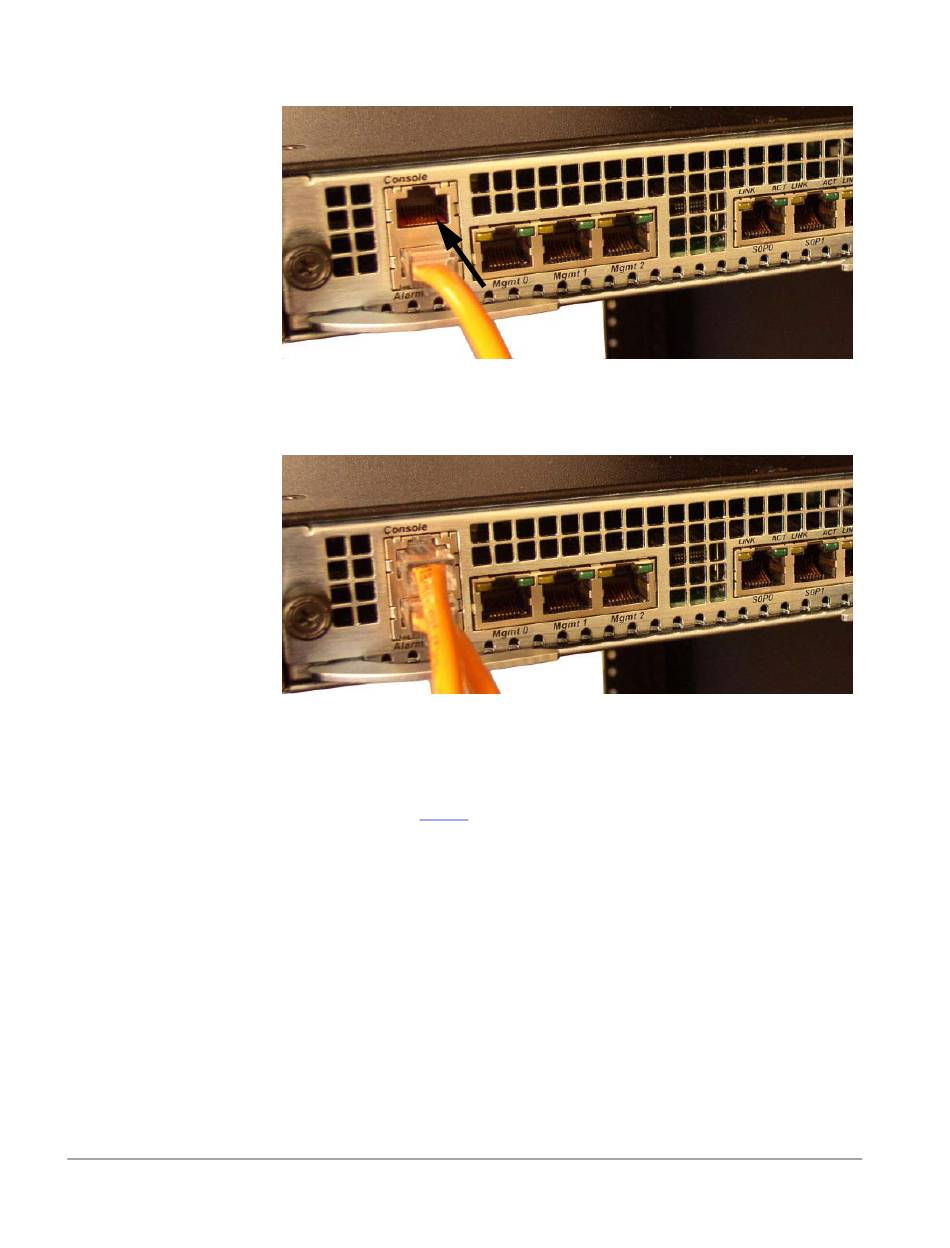

The following figure shows a Acme Packet 4500 with a console cable properly
connected (in addition to the Alarm cable).
This section explains how to create a serial connection to the Acme Packet 4500's
front panel console port.
Refer to this guide's
Startup
terminal application to connect to the console.
chapter for information on how to configure your
Version 1.0
