Cabling for HA Deployments

HA Cabling
Rear Panel HA Cabling
Proprietary and Confidential
Acme Packet 1100 Hardware Installation Guide
and EXT. The release tab on the RJ45 jack will click into place when you insert it
properly into the port.
SER MGT

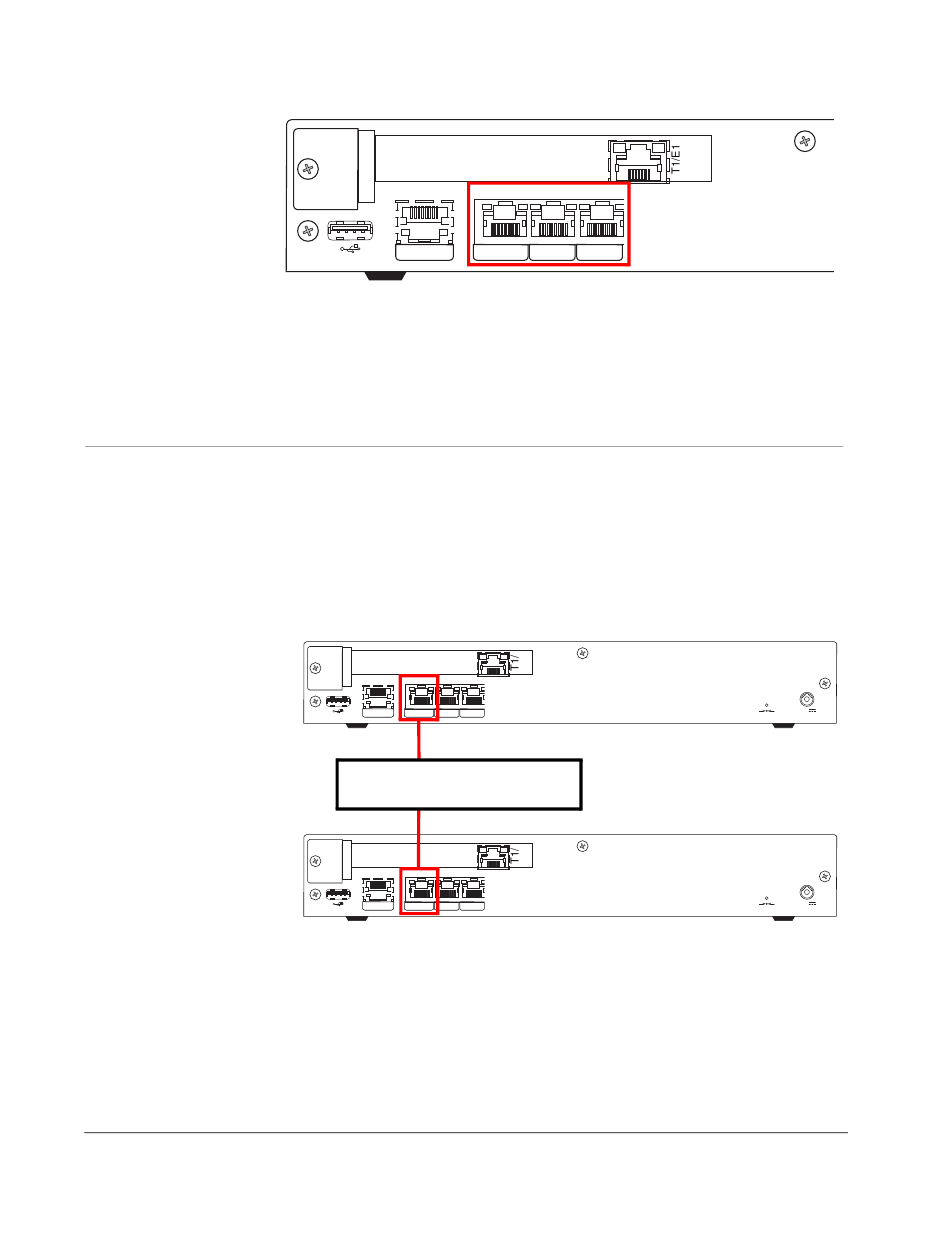

Figure 4 - 10. Network Management Ethernet Ports
3. Route the cable away from the Acme Packet 1100. Make sure that the Ethernet
cables are not stretched tightly or subject to extreme stress.
4. Repeat the above steps for each additional management Ethernet cable you will
connect to your Acme Packet 1100.
The information and instructions in this section explain how to cable an HA node.
Category 5 (or higher) shielded Ethernet cables are required for cabling two HA
nodes together.
You can use one or two connections for HA redundancy support between the two
members of an HA node.
LNK ACT LNK ACT LNK
SER MGT NET MGT INT
Ethernet Switch, Router or Network
LNK ACT LNK ACT LNK
SER MGT NET MGT INT
Figure 4 - 11. HA-Sharing Ports
Management network ports feature automatic crossover negotiation so that a
crossover cable is not necessary for HA cabling.
LNK ACT LNK ACT LNK ACT LNK
NET MGT INT EXT
ACT LNK ACT
EXT
ACT LNK ACT
EXT
SYSTEM INSTALLATION
ACT
12V
12V
