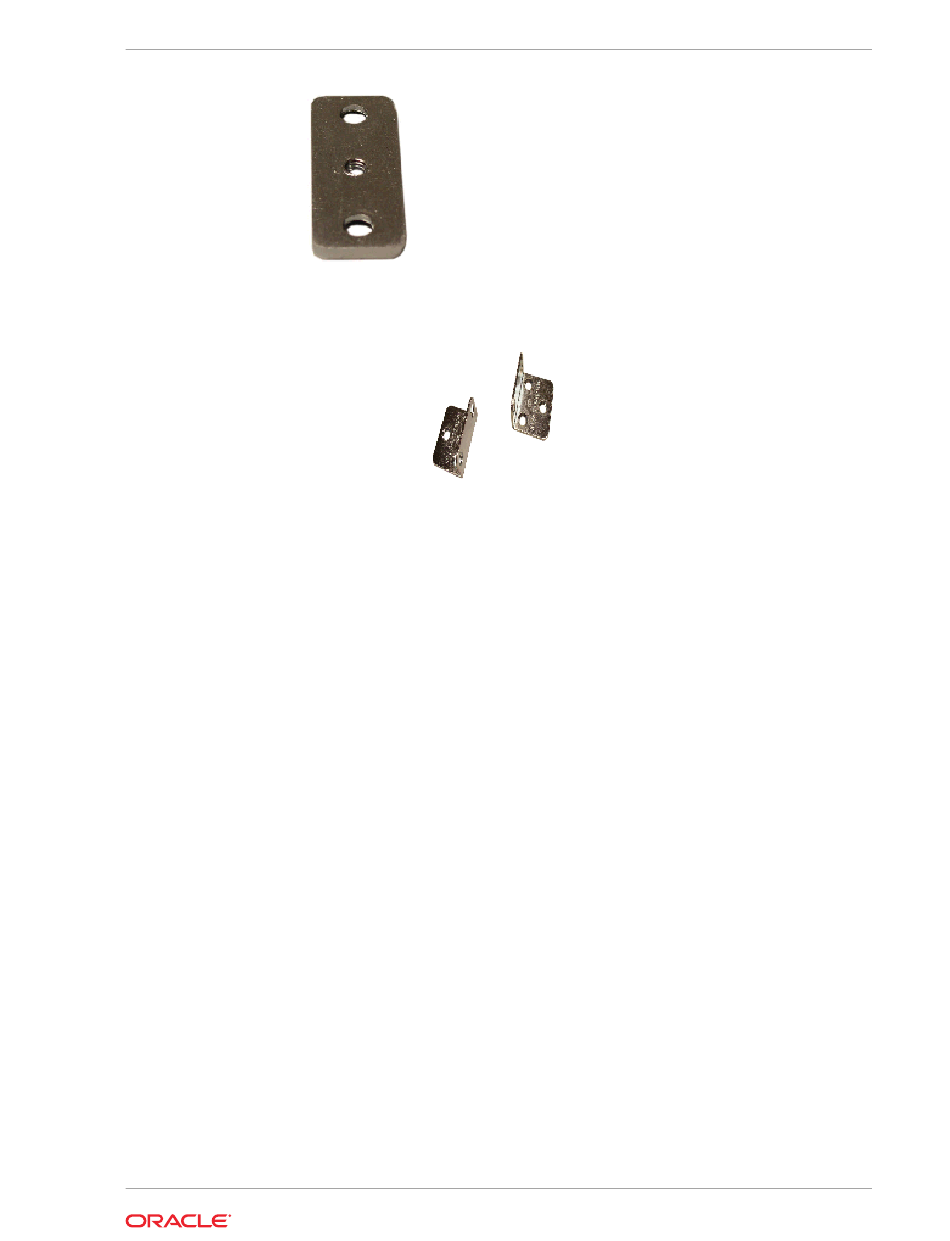

Center mounting flanges (2) for a 2-post rack
Cabinet-style 4-Post Chassis Installation
The following sections explain how to mount the Acme Packet 3900 in a cabinet-style,
4-post equipment rack.
Mounting System
Oracle provides flexible mounting options for your Acme Packet 3900 equipment rack
installation.
The mounting system consists of a slide rail mounted on each side of an equipment
rack and a chassis slide rail mounted on each side of the Acme Packet 3900 chassis.
Once the slide rails are installed on the equipment rack and chassis, the chassis
can be slid into place by aligning the installed chassis slide rails along the guides on
the equipment rack slide rails. When the Acme Packet 3900 is fully inserted into the
equipment rack, it is secured in place with two captive thumbscrews.
Installing the Equipment Rack Slide Rails
In the first stage of system installation, secure the equipment rack slide rail to
the equipment rack. The equipment rack slide rail can expand and contract to
accommodate equipment racks of various depths up to 32".
You can mount the equipment rack slide rail to both tapped hole rack and square rack.
Follow the appropriate procedure below.
Installing Slide Rails into a Tapped-Hole Rack
This section explains how to mount the Acme Packet 3900 slide rail assembly into a
tapped-hole equipment rack.
Cabinet-style 4-Post Chassis Installation
Chapter 3
3-5
