MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
7.6

Using the Diagnostics Menu in PCB

ProSoft Configuration Builder (PCB) provides diagnostic menus for debugging and
troubleshooting.
To connect to the module's Configuration/Debug Ethernet port

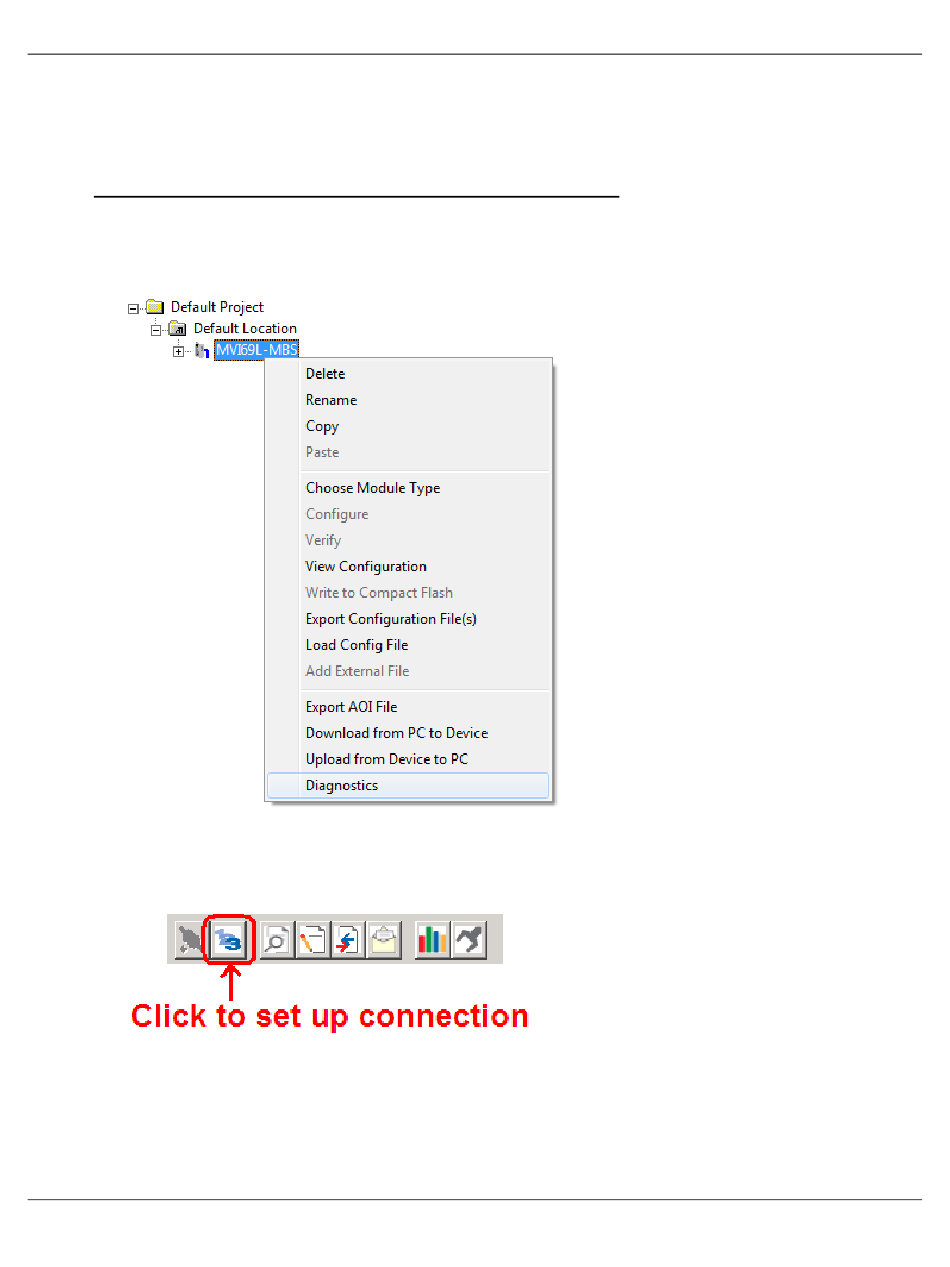

1 In the tree view in ProSoft Configuration Builder, right-click the MVI69E-MBS module
and then choose D
PCB, please refer to Configuring the MVI69E-MBS Using PCB (page 36).
2 After the Diagnostics window opens, click the S
for the module's IP address.
ProSoft Technology, Inc.
. For instructions on opening and using a project in
IAGNOSTICS
Diagnostics and Troubleshooting
C button to browse
ET UP ONNECTION
User Manual
Page 104 of 159
