MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module
4.4 Using the Diagnostics Menu in ProSoft Configuration Builder
Tip: You can have a ProSoft Configuration Builder Diagnostics window open for more than one module at a
time.
1

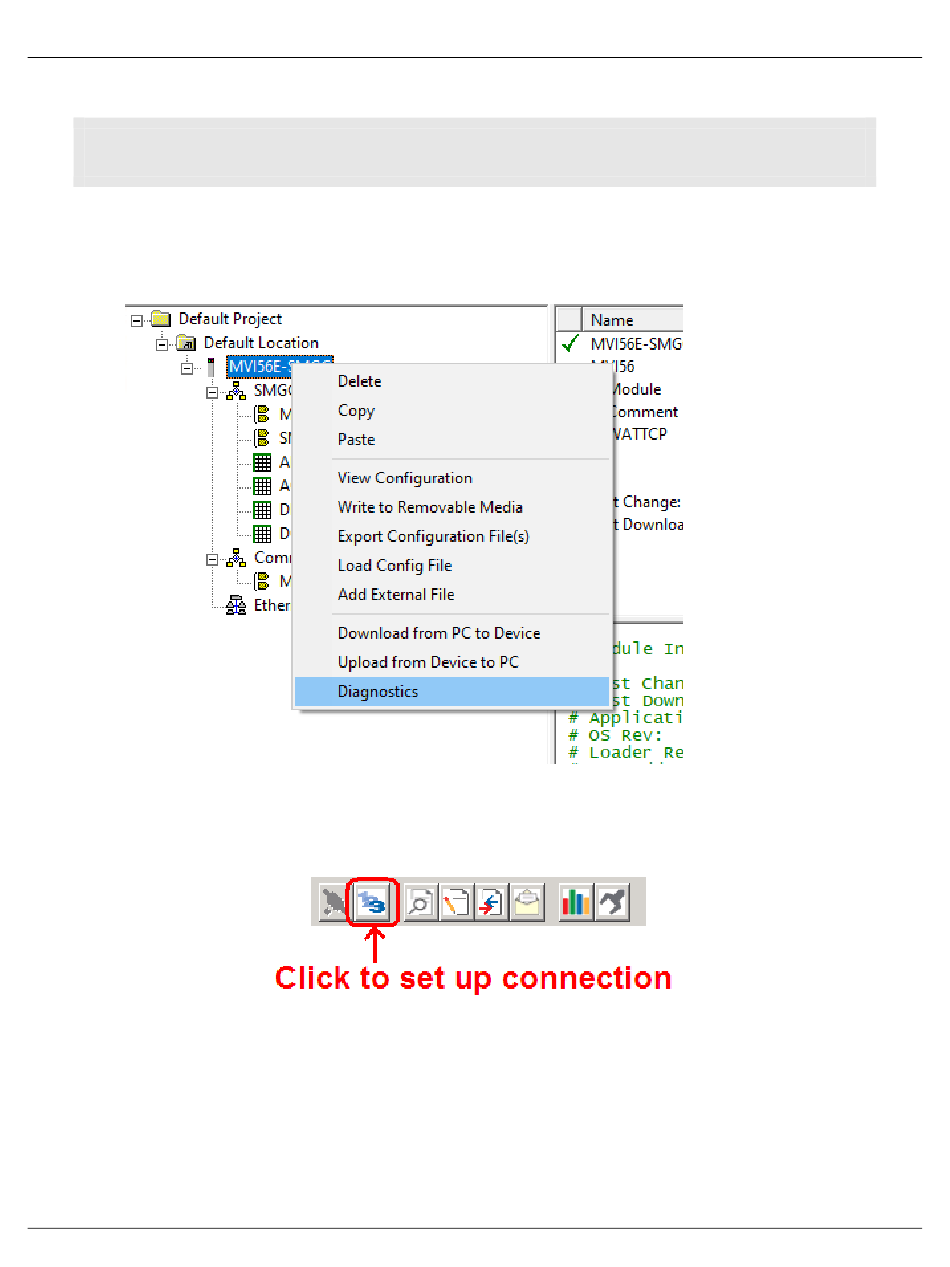

In the tree view in ProSoft Configuration Builder, right-click the MVI56E-SMGC icon
to open a shortcut menu.
2
On the shortcut menu, choose D
3
In the Diagnostics window, click the S
module's IP address.
ProSoft Technology, Inc.
.
IAGNOSTICS
U
C
ET
P
ONNECTION
Diagnostics and Troubleshooting
User Manual
button to browse for the
Page 52 of 98
