Installation

3.12.4 Actor/Sensor Ports

For the assignment of the ports, refer to the section Available Ports starting on
page 37. The OpenCom 100 also functions together with a Freehand Entry-Phone
manufactured by Siedle or Behnke.
a/b1
Relay
Actor2
Actor1
Door opener
Sensor
230 V ~

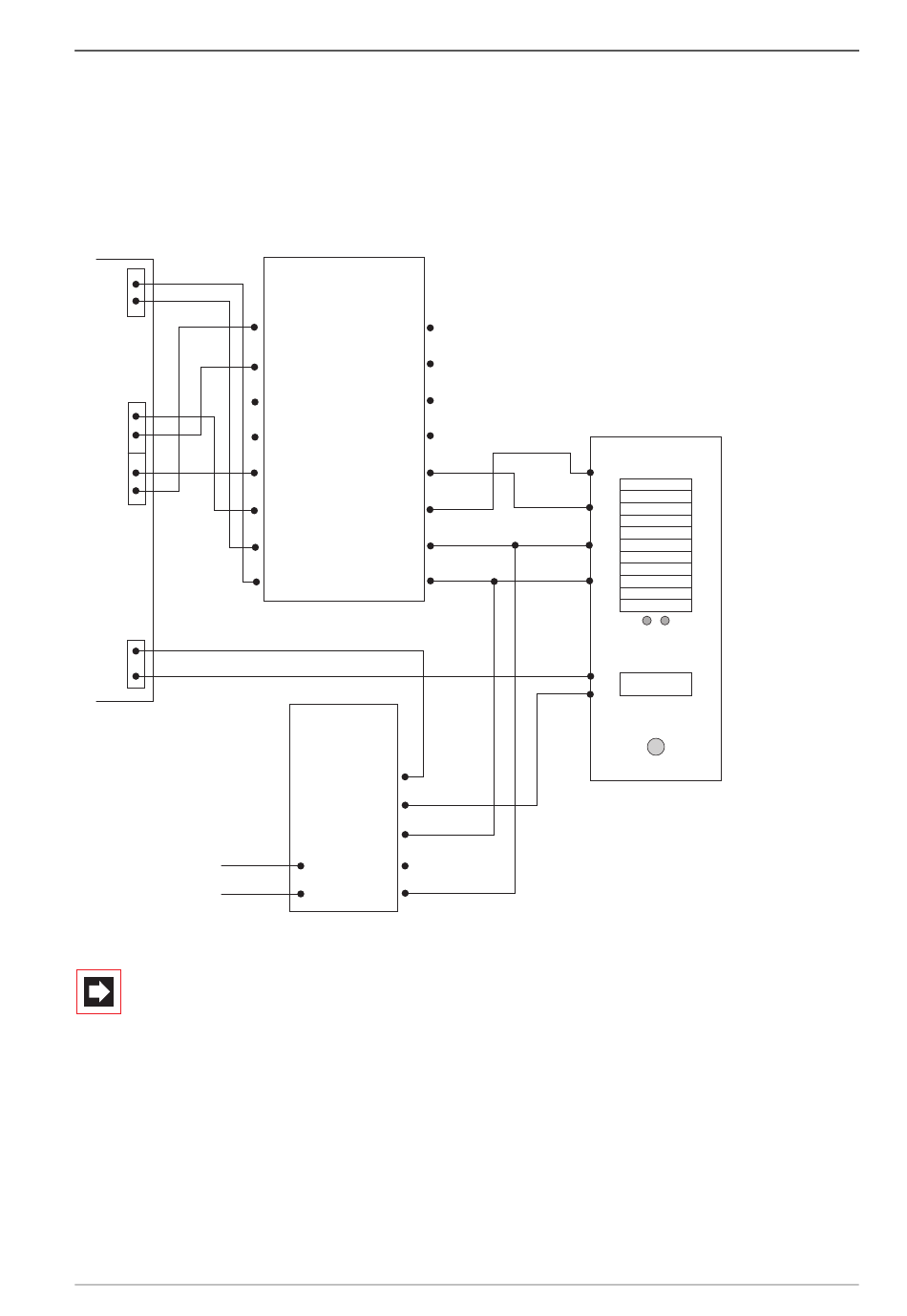

Connection of doorway equipment produced by Siedle
PVG 402-0
Amplifier
To c1
Ts 7
-T LW
+T 1
To 12
Ts* 11
b 9
a +
NG 402-02
Ac adapter
b
12 V ~
c
+
-
9
Note: The above diagram shows the usage of the
"PVG 402-0" module (which merely serves as an example).
Other modules can also be operated, such as its successor,
"PVG 602-01".
Connectible Terminals
Siedle
11
12
9
+
Door bell
