Installation

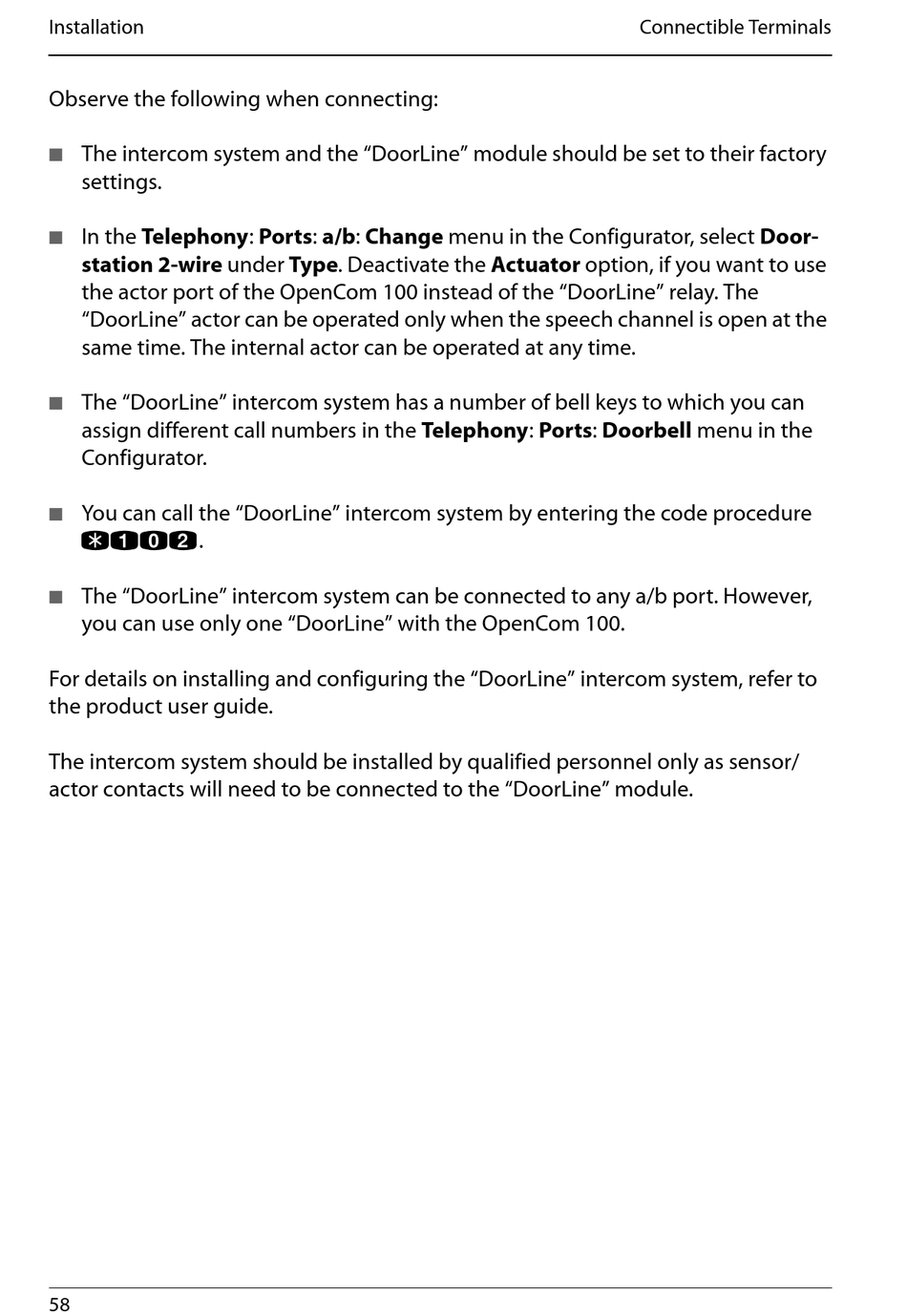

Observe the following when connecting:
■
The intercom system and the "DoorLine" module should be set to their factory
settings.
■
In the Telephony: Ports: a/b: Change menu in the Configurator, select Door-
station 2-wire under Type. Deactivate the Actuator option, if you want to use
the actor port of the OpenCom 100 instead of the "DoorLine" relay. The
"DoorLine" actor can be operated only when the speech channel is open at the
same time. The internal actor can be operated at any time.
■
The "DoorLine" intercom system has a number of bell keys to which you can
assign different call numbers in the Telephony: Ports: Doorbell menu in the
Configurator.
■
You can call the "DoorLine" intercom system by entering the code procedure
*102
.
■
The "DoorLine" intercom system can be connected to any a/b port. However,
you can use only one "DoorLine" with the OpenCom 100.
For details on installing and configuring the "DoorLine" intercom system, refer to
the product user guide.
The intercom system should be installed by qualified personnel only as sensor/
actor contacts will need to be connected to the "DoorLine" module.
58
Connectible Terminals
