Frequently Asked Questions

LAN

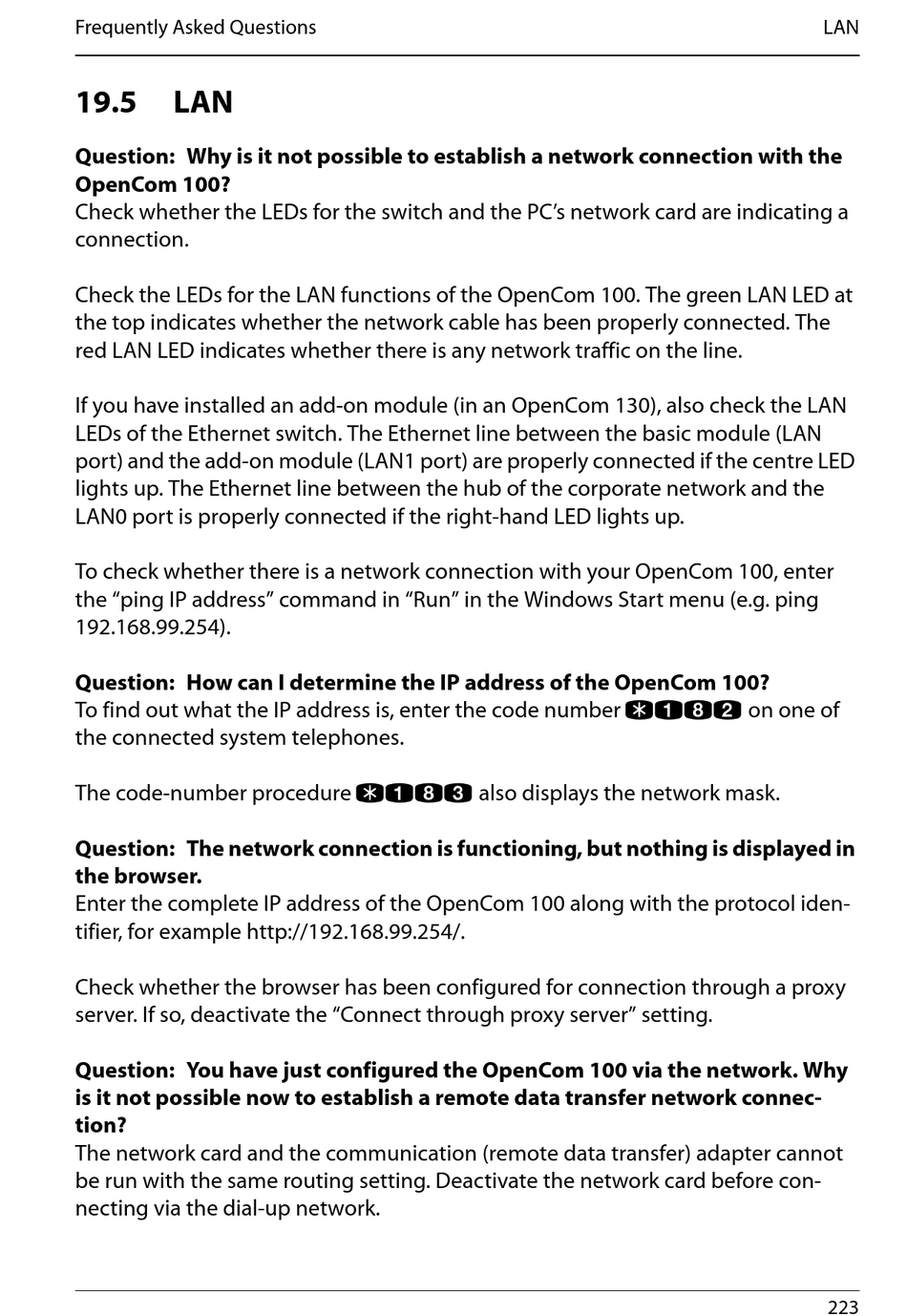

19.5 LAN
Question: Why is it not possible to establish a network connection with the
OpenCom 100?
Check whether the LEDs for the switch and the PC's network card are indicating a
connection.
Check the LEDs for the LAN functions of the OpenCom 100. The green LAN LED at
the top indicates whether the network cable has been properly connected. The
red LAN LED indicates whether there is any network traffic on the line.
If you have installed an add-on module (in an OpenCom 130), also check the LAN
LEDs of the Ethernet switch. The Ethernet line between the basic module (LAN
port) and the add-on module (LAN1 port) are properly connected if the centre LED
lights up. The Ethernet line between the hub of the corporate network and the
LAN0 port is properly connected if the right-hand LED lights up.
To check whether there is a network connection with your OpenCom 100, enter
the "ping IP address" command in "Run" in the Windows Start menu (e.g. ping
192.168.99.254).
Question: How can I determine the IP address of the OpenCom 100?
*182
To find out what the IP address is, enter the code number on one of
the connected system telephones.
*183
The code-number procedure also displays the network mask.
Question: The network connection is functioning, but nothing is displayed in
the browser.
Enter the complete IP address of the OpenCom 100 along with the protocol iden-
tifier, for example http://192.168.99.254/.
Check whether the browser has been configured for connection through a proxy
server. If so, deactivate the "Connect through proxy server" setting.
Question: You have just configured the OpenCom 100 via the network. Why
is it not possible now to establish a remote data transfer network connec-
tion?
The network card and the communication (remote data transfer) adapter cannot
be run with the same routing setting. Deactivate the network card before con-
necting via the dial-up network.
223
