DECT over IP
the conditions of the operating environment, it can reach speeds of up to 54Mbit/
s (gross).
WLAN settings are configured centrally for all Access Points using a separate Web
configurator, which can be found at the IP address of the DECT over IP Manager
(OMM, OpenMobility Manager). You can reach this address by entering the IP
address of the DECT over IP Manager directly into the address bar of your Web
Browser. Alternatively, you can also go to the Configurator, to the page
Telephony: Devices: DECT over IP and click on the WLAN Config. button. Log in
under the User Name "Administrator" and enter the same password as for the
OpenCom 100.

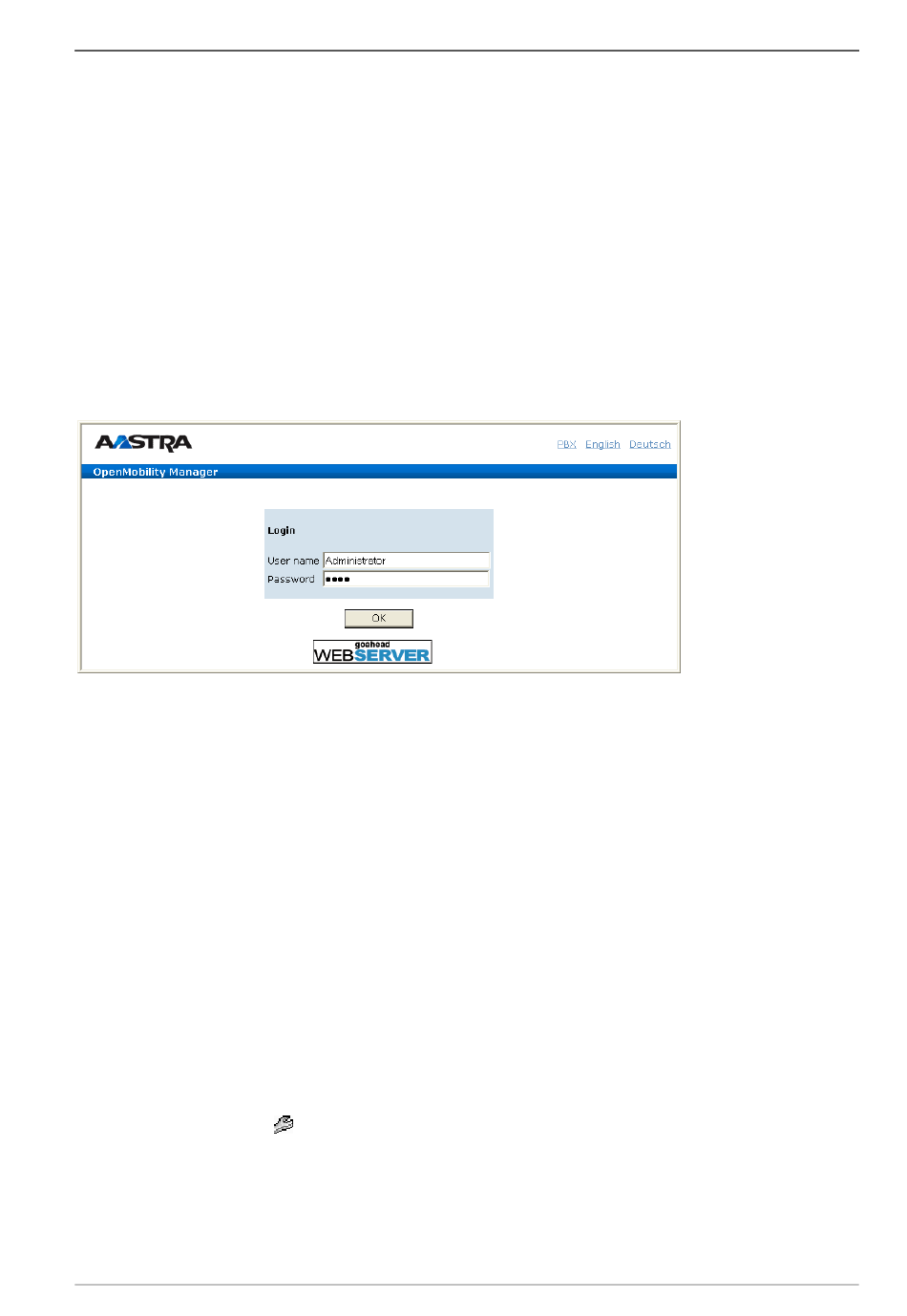

DECT over IP/OpenMobility Managers Login Page
The WLAN function and the function of the DECT over IP/OpenMobility Manager
cannot be used simultaneously on the same DECT over IP base station, so you will
always need at least two DECT over IP base stations. The WLAN settings are then
made as follows:
1. Set up the existing DECT over IP base stations in theOpenCom 100's Configu-
rator. Go to the DECT over IP Manager's Web Configurator.
2. On the WLAN Profiles page, configure at least one set of settings (see below
under: Setting up a WLAN Profile). Note down the password you have used
("Pre-Shared Key"), so that you will be able to use it again later when setting up
wireless user terminals or notebooks.
3. Assign the desired WLAN profile on the Radio Fixed Parts page. Click on
spanner symbol ( ) on the left next to the relevant DECT over IP base station.
Under WLAN Settings select the number of the configured WLAN Profile.
Confirm your settings with OK. You can use one profile for multiple
DECT over IP base stations.
