Installation
3.12

Connectible Terminals

The OpenCom 100 ports already offer a large number of possibilities for con-
necting terminals. By installing additional interface cards (in an OpenCom 130 /
150) the number of ports can be increased as required.

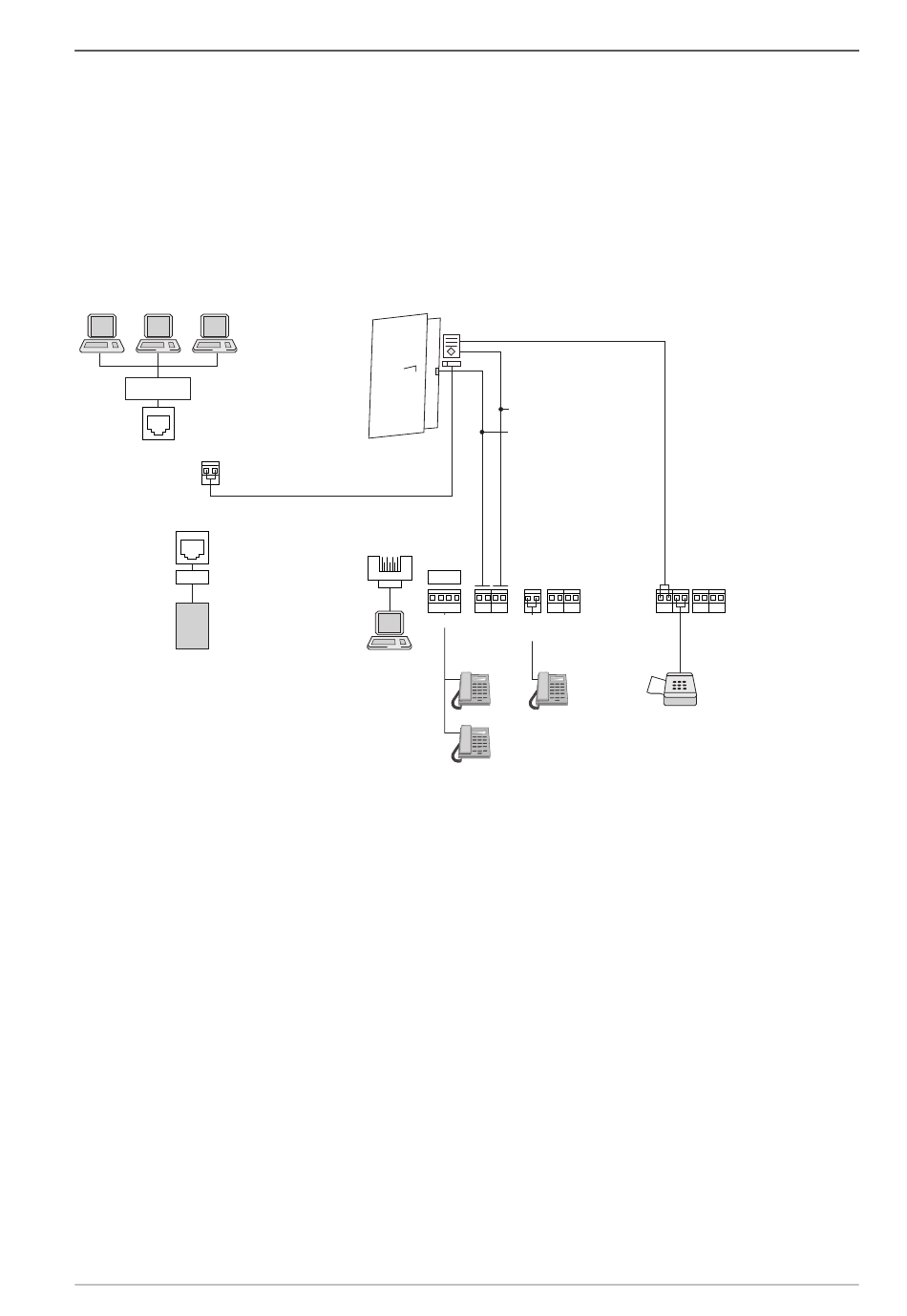

One of the many possible configurations is shown in the following diagram.
Hub
LAN
Sensor 1
S 1 ext
0
R
NTBA
Example of port assignment of the OpenCom 130 with terminals

3.12.1 Internal/External S

All S ports can be operated externally, i.e. on an ISDN network termination unit.
0
The S 2 port of an OpenCom 130 and an OpenCom 131 can also be connected
0
internally. S ports on interface cards (available for an OpenCom 130 and
0
OpenCom 150) can also be switched external/internal. It is not possible to use
both assignments simultaneously.
Up to eight devices per bus (ISDN telephones, ISDN fax machines, ISDN base sta-
tions, ISDN cordless telephones, ISDN adapters for the PC among others) can be
connected to the internal S
these devices can be supplied by the bus; if more devices are used, they then
require their own power supplies. The internal S
point calls as per the DSS1 protocol (Euro-ISDN).
COM
R
S 2 int Actuator
0
1 + 2

Ports

0
ports by twin-pair cables. The power for three of
0
Connectible Terminals
Intercom/Relay
Intercom/Door opener
U U a/b
pn pn
1/2 3/4 1/2
buses enable point-to-multi-
0
a/b
3/4
55
