3-5-5-3 CP770DW - Printer Settings (cont'd)
7.) For saving the adjusted printer settings click OK.
NOTE: When you call up the "Gamma Adjust" page again, the Input and Output parameters won´t be
shown until re-adjustment of the displayed Gamma curve.
8.) For saving the adjusted printer settings click APPLY and then OK.
9.) Finally close the 'Printers'-window with the close button and exit System Setup with SAVE&EXIT.
3-5-6

Printer Remote Control Selection

To assign the Remote PRINT A key, Remote PRINT B key and Report Printer to desired Printer:
1.) On the Touch Panel, touch UTILITIES.
2.) In the Utilities menu, touch SYSTEM SETUP to invoke the setup desktop on the screen.
3.) Select the
Print A
• Remote Print A: Select the desired Printer for the remote control PRINT A key.
• Remote Print B: Select the desired Printer for the remote control PRINT B key.
NOTE: Optionally the Remote Control can be done by Foot switches.
Therefore select "Print A" or "Print B" in "Foot Switch Left" or "Foot Switch Right" - section.
• Report Printer: Select the desired Report Printer from the drop-down menu.
The selected Report Printer (usually HP 990cxi or HP 995c) is used for printing reports and images from
NOTICE
Sonoview.
U
RETZTECHNIK LTRASOUND
1
page.
PERIPHERALS

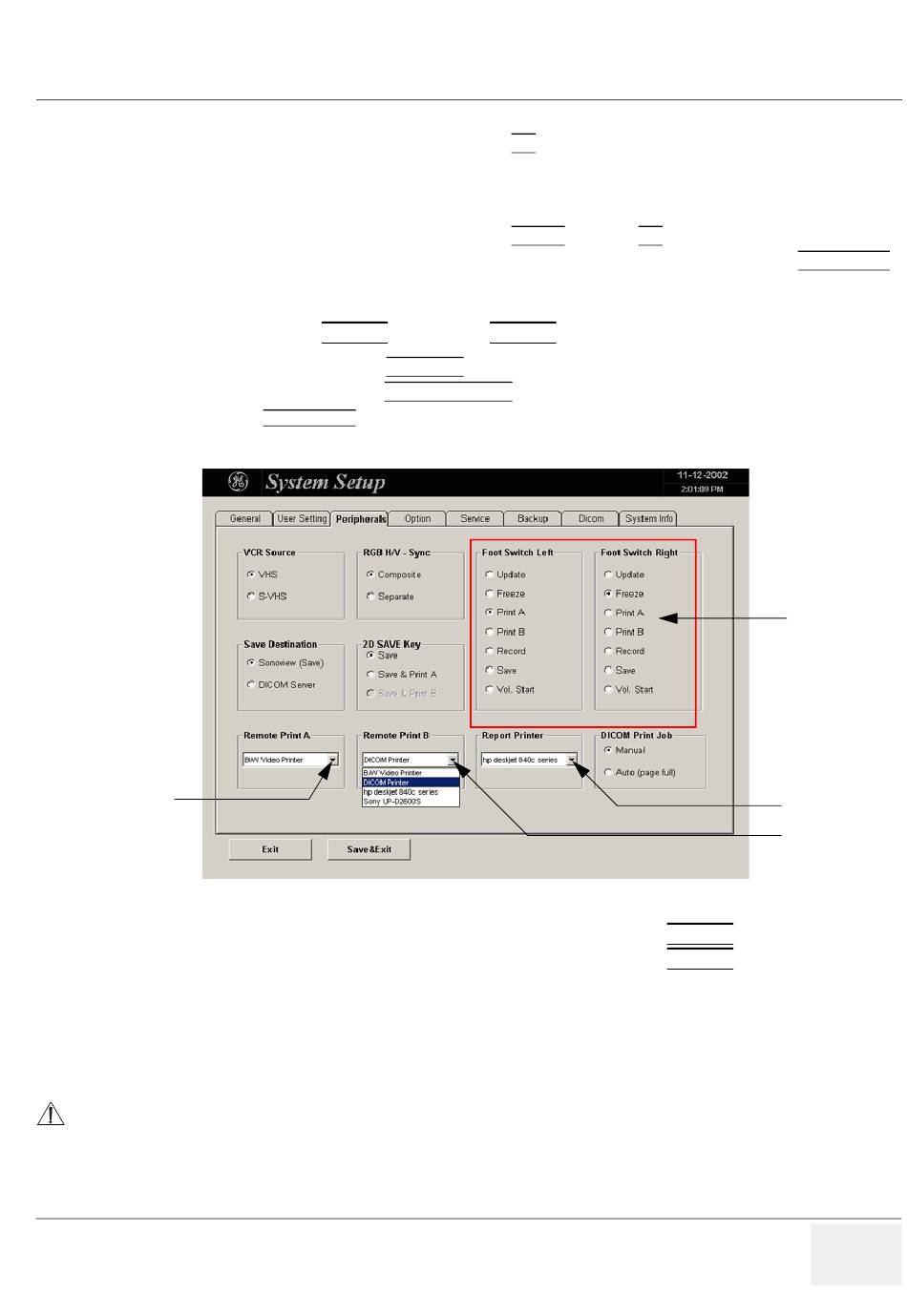

Figure 3-36 Peripherals page
Chapter 3 Installation
V ® 730 S
OLUSON ERVICE
Foot Switch
Remote
Control
Report Printer
Print B
M
ANUAL
3-27
