4-4-5 Volume Mode Checks
Real Time 4D, RT_4D_Biopsy and VCI are Options.
NOTICE
If these options are not part of the system configuration, the appendant checks can be omitted.
NOTE: Different menus are displayed depending on which Touch Panel Menu and which Volume Mode (3D,
Live 3D, Real-time 4D, Real-time 4D Biopsy, VCI) is selected.
Some function keys only appear on the Touch Panel if they are available for the selected Probe.
4-4-5-1 Pre-Volume Mode Functions
Table 4-7
Step
1
3D
2
4D
3
LIVE 3D
4
VCI
5
4D BIOPSY
6
7
8
9
4-14
U
RETZTECHNIK LTRASOUND
1

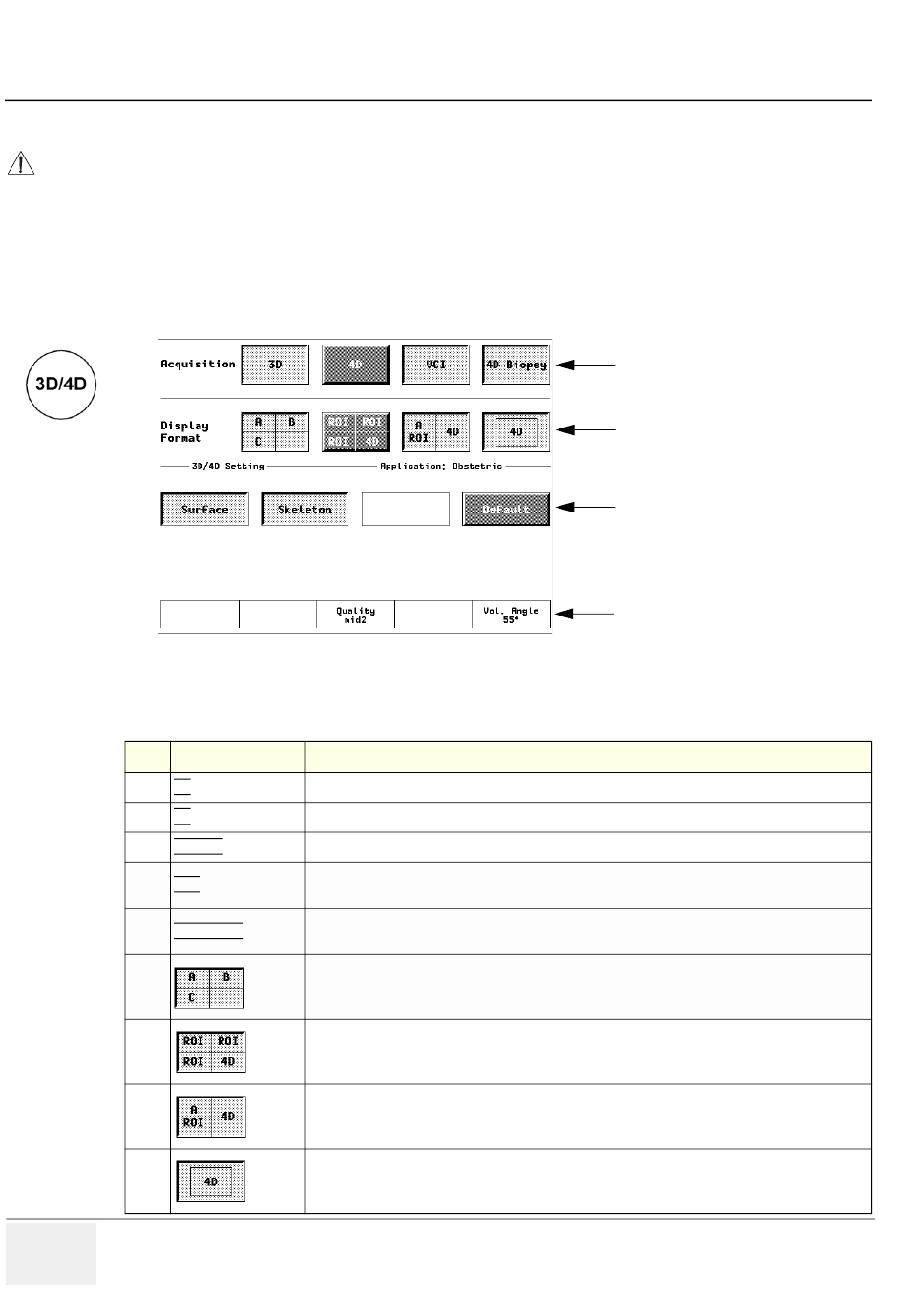

Figure 4-11 Pre-Volume Mode Menu
Pre-Volume Mode Functions
Task
3D Volume Mode - Static volume acquisition (also possible in combination with PD-Mode)
Real-time 4D - continuous volume acquisition and parallel calculation of 3D rendered images
Live 3D - continuous volume acquisition and parallel calculation of 3D rendered images
Volume Contrast Imaging
improves the contrast resolution and therefore facilitates finding of diffuse lesions in organs
Real-time 4D Biopsy
continuous volume acquisition and parallel calculation of 3D rendered images
Display of Sectional Planes without 3D image.
Quarter size display of Sectional Planes + rendered 3D image.
(Note: The display of the Touch key depends on selected Acquisition Mode e.g. 4D.)
Dual size display of Sectional Planes + rendered 3D image.
(Note: The display of the Touch key depends on selected Acquisition Mode e.g. 4D.)
Full size display of a rendered 3D image.
(Note: The display of the Touch key depends on selected Acquisition Mode e.g. 4D.)
