4-3-3-2 Touch Panel
1.) Main menu key: to change from one Sub menu to another.
2.) Sub menu key: to adjust settings of the selected Scan mode.
3.) Utilities key: activates the configuration system. The UTILITIES key is available in each Main menu.
4.) Setting window: shows all settings for the active application. The active one is highlighted.
5.) Additional functions which are supported by the selected Mode.
NOTE: Different menus are displayed depending on which Touch Panel Menu is selected.
At the bottom of the Touch Panel, there are combination rotary dials/push buttons and flip switch
controls. The functionality of these controls changes, depending upon the currently displayed menu.
Press the button to switch between controls (as with ß-View/Zoom), or rotate the dial to adjust the value.
U
RETZTECHNIK LTRASOUND
1
1
4
5

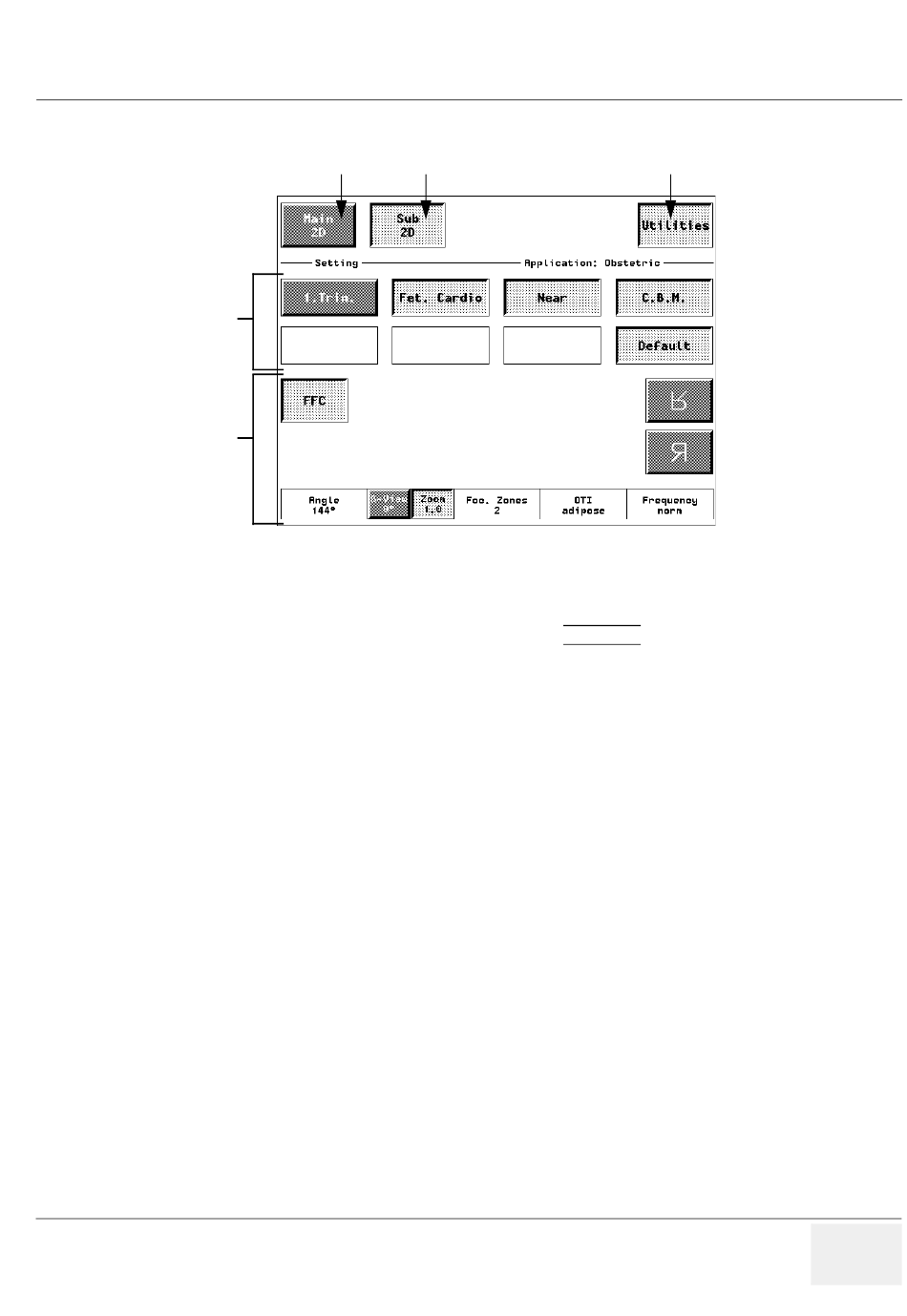

Figure 4-5 Touch Panel - Main Menu
