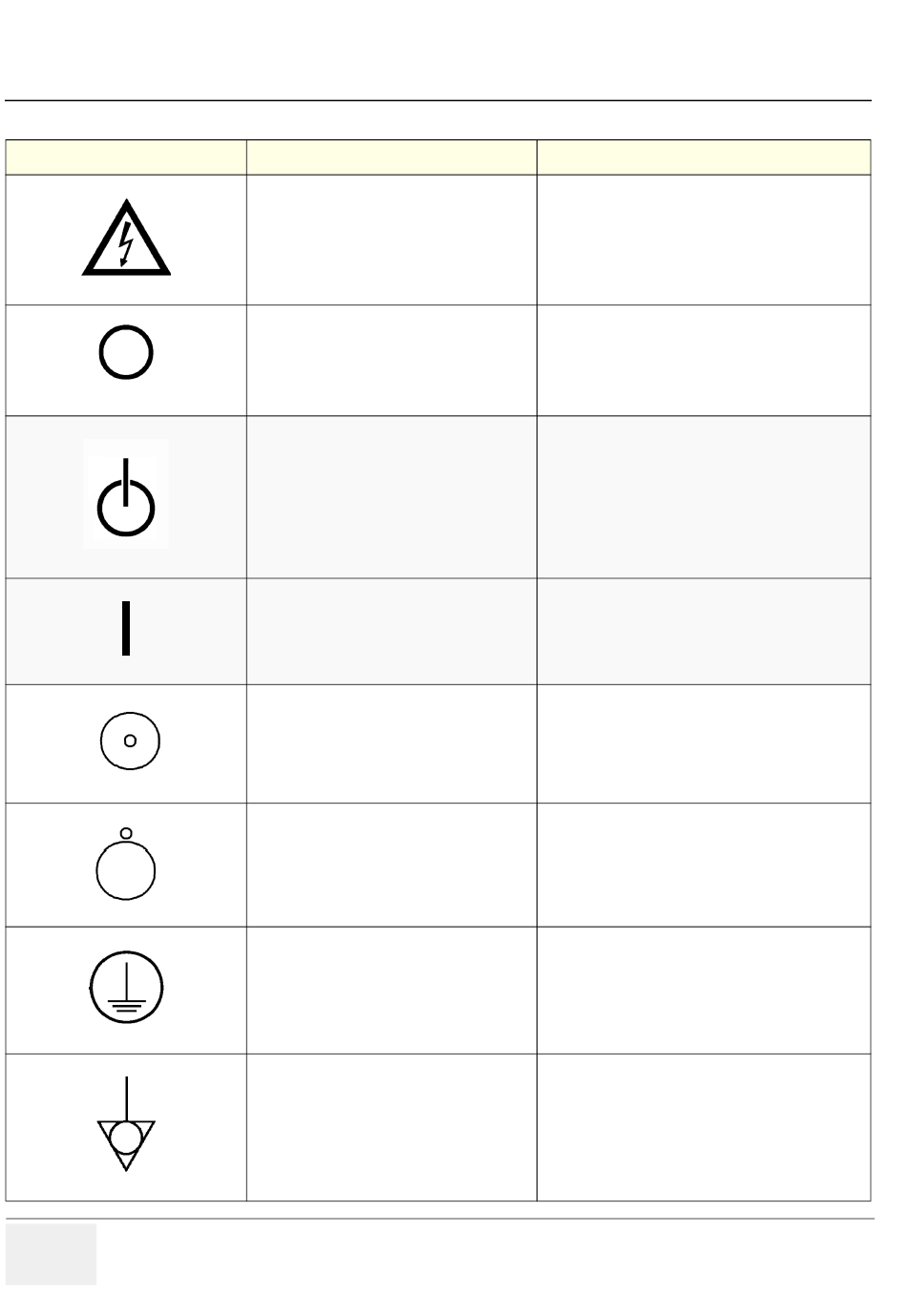

Table 1-5
LABEL/SYMBOL
1-6
U
RETZTECHNIK LTRASOUND
1
Product Icons (Continued)
PURPOSE/MEANING
"CAUTION - Dangerous voltage" (the lightning
flash with arrowhead in equilateral triangle) is
used to indicate electric shock hazards.
"Mains OFF" Indicates the power off position of
the mains power switch.
"OFF/Standby" Indicates the power off/
standby position of the power switch.
CAUTION
This Power Switch DOES NOT ISOLATE
Mains Supply
"Mains ON" Indicates the power on position of
the mains power switch.
ON switch of the isolation transformer for
auxiliary devices.
OFF switch of the isolation transformer for
auxiliary devices.
"Protective Earth" Indicates the protective
earth (grounding) terminal.
"Equipotentiality" Indicates the terminal to be
used for connecting equipotential conductors
when interconnecting (grounding) with other
equipment.
Section 1-2 - Important Conventions
V ® 730 S
OLUSON
LOCATION
Rear side of Monitor
Rear of system at mains switch (F1)
Adjacent to On-Off/Standby switch left below the
Control panel.
Rear of system at mains switch (F1)
Rear of system at the switch for auxiliary devices (F2)
Rear of system at the switch for auxiliary devices (F2)
Internal, Rear side of Power Supply
Rear side of Power Supply
