4-4-5 Volume Mode Checks
4-4-5-3 Functions in the Tool Menu
Table 4-9
Step
1
2
3
4
5
6
For further details refer to the Voluson® 730 Basic User Manual:
• Chapter 11.2, 3D Acquisition
• Chapter 11.3, 3D Image Rendering, Operation
• Chapter 11.5, Real Time 4D Acquisition
• Chapter 11.6, Live 3D Acquisition
• Chapter 11.7, Real Time 4D Biopsy
• Chapter 11.8, Volume Contrast Imaging (VCI)
4-16
U
RETZTECHNIK LTRASOUND
1
(cont'd)

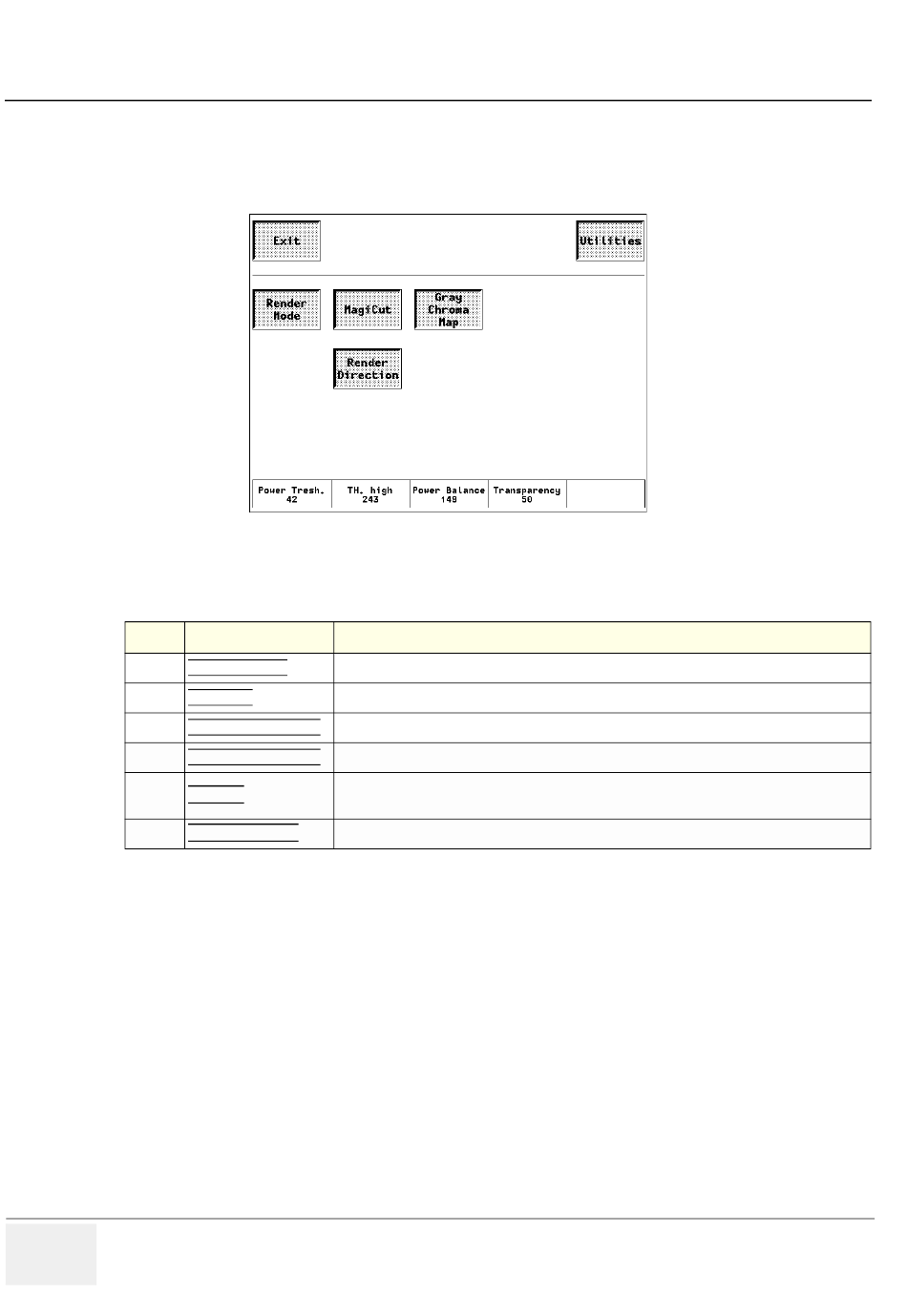

Figure 4-13 Tool Menu
Functions in the Tool Menu
Task
RENDER MODE To select the Render Mode (Image Type and Render Algorithm)
MAGI CUT Ability to electronically manipulate the images and cut way "3D artifacts".
GRAY CHROMA MAP Depending on individual requirements a "harder" or "softer" image can be obtained.
RENDER DIRECTION To select the desired Render Direction. The green line symbolizes the direction of the view.
By changing the treshold all echoes below the level are enhanced in color to remove noise
TH. LOW
and to get a "clear sight". (Surface Mode only)
TRANSPARENCY A higher number makes the gray scale information more transparent.
